4. Choose 2 (Serial port configuration) and then an individual port number or 0 (zero) for all ports.
5. Choose 3 (Host mode configuration) and then 4 (Protocol) and 2 (for SSH).
6. Use the ESC key to return to the main configuration menu.
7. Choose 9 (Exit and apply changes).

Adding, Editing, and Removing Users

1. Telnet to the SERIMUX.
2. Log in as root or admin.
The default password for root is dbps,
The default password for admin is admin.
3. Do one of the following:
• If the user is logged in as admin, the configuration menu will automatically appear, so go to the next step.
• If the user is logged in as root, enter the configmenu command.
4. Choose 6 (System administration) > 1 (User administration) and then choose an operation to perform (Add, Remove, or Edit).
5. Configure the user as required.
6. Use the ESC key to return to the main configuration menu.
7. Choose 9 (Exit and apply changes).
Note: Choose Exit and apply changes when all of the changes have been made

Installing and Configuring PC Cards

Introduction

This chapter includes information on adding and configuring PC cards for the SERIMUX. PC devices that can be added to the
SERIMUX include a serial modem, compact-flash card, wireless LAN card, and a network LAN card.

Compatible PC Cards

All compact-flash cards work with the SERIMUX, but not all serial modem, wireless LAN, or regular LAN cards do. See the charts
below for compatible cards that have been tested with the SERIMUX.

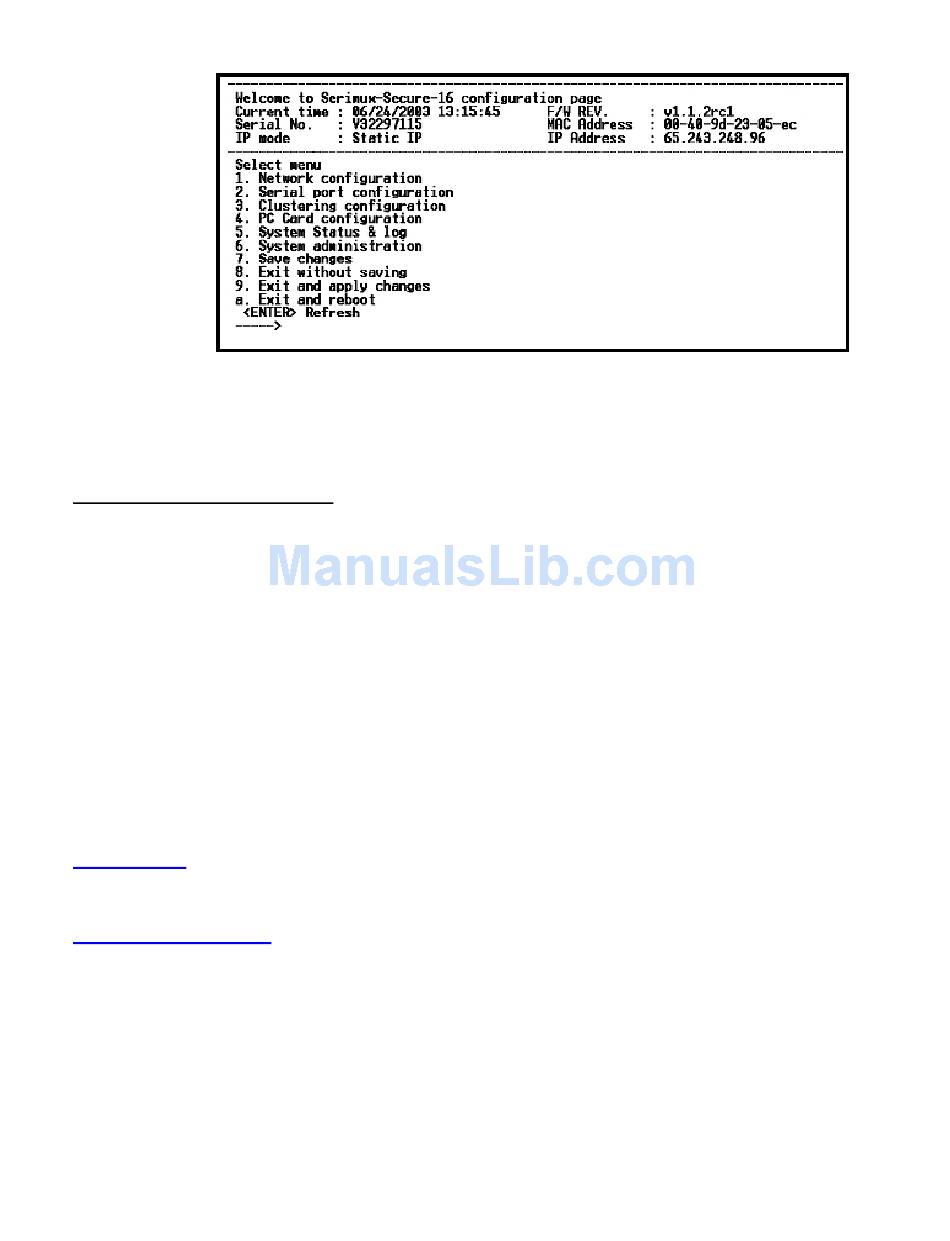

Figure 10- Using configuration menu to configure SSH

10
.
