- Page 1 ® SPLITMUX Series SPLITMUX-C5HDR-4LC HDMI 4x1 Quad Multi-Viewer With Seamless Switcher Installation and Operation Manual MAN233 REV 1/22/15...
-
Page 2: Package Contents

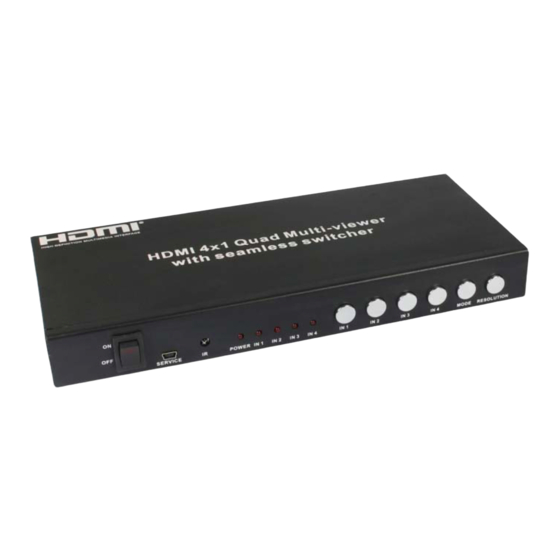

1. Introduction The SPLITMUX-C5HDR-4LC (SPLITMUX) is a high performance 4 by 1 Quad Multi-Viewer with seamless switcher. It supports four High-definition input sources displaying on one screen, and has three multi-view effect modes. As a switcher, it can also seamlessly switch the four HD inputs freely. -
Page 3: Rear Panel
4. Functions 4.1 Front panel 1. ON/OFF: Power ON/OFF switch. 2. SERVICE: For factory use only. 3. IR : Remote control receiver window. 4. POWER LED: This red LED illuminates when the device is connected with power supply. 5. IN1,2,3,4 LED: These red LEDs illuminate when the output is switched to the corresponding input. - Page 4 4.3 CATx Remote Unit 1. DC 5V: Connect from 5V DC power supply into the unit and connect the adaptor to an AC outlet. 2. IR RX: Connect to the IR Receiver for IR signal reception. Ensure that remote control being used is within the direct line-of-sight of the IR receiver.
-
Page 5: Connect And Operate
5. Connect and Operate Connect the signal sources such as Blu-Ray Player, Play Station 3, audio/video receiver, satellite receivers and computers equipped with HDMI output interfaces with a high-speed HDMI cable to the SPLITMUX inputs. Connect the HDMI output of the SPLITMUX to a high-definition display device such as HD-LCD, HD-DLP or HD projector with an HDMI input connection. - Page 6 5.1 Wideband IR (30KHz---60KHz) IR BLASTER (TX) To control the source: Plug IR Blaster into a numbered “IR TX” port of the transmitter unit (SPLITMUX); place IR blaster in front of the IR eye of the associated input source. Repeat for each connected source.
-
Page 7: Remote Control
5.2 Detailed Description of Display Modes The SPLITMUX has 3 display modes. MODE1: The SPLITMUX divides the four HD inputs into images of the same size and displays them on one screen. Press the input button on the front panel or IR remote and the HDMI output audio for the corresponding source will be heard. - Page 8 7. PC Controller User Guide Installation The PC controller is an application included on your CD. Just use a cable to connect the PC via RS232 port and copy the “Quad multi-viewer.exe” from the CD to your PC to complete the installation.
-
Page 9: Specifications
8. Specifications Video Bandwidth 2.25Gbps Input Ports 4 × HDMI (Female type), 1x RS232; Output Ports 1 × HDMI (Female type), 1xRCA, 1xRJ45 Audio output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1 Input Resolution 480i60Hz, 480p60Hz, 576i50Hz, 576p50Hz, 720p50/60Hz, 1080i50/60Hz, 1080p24/30/50/60Hz, 800x600@60, 1024x768@60, 1280x720@60, 1920x1080@60;... -
Page 10: Warranty Information
WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com for information regarding repairs and/or returns.
