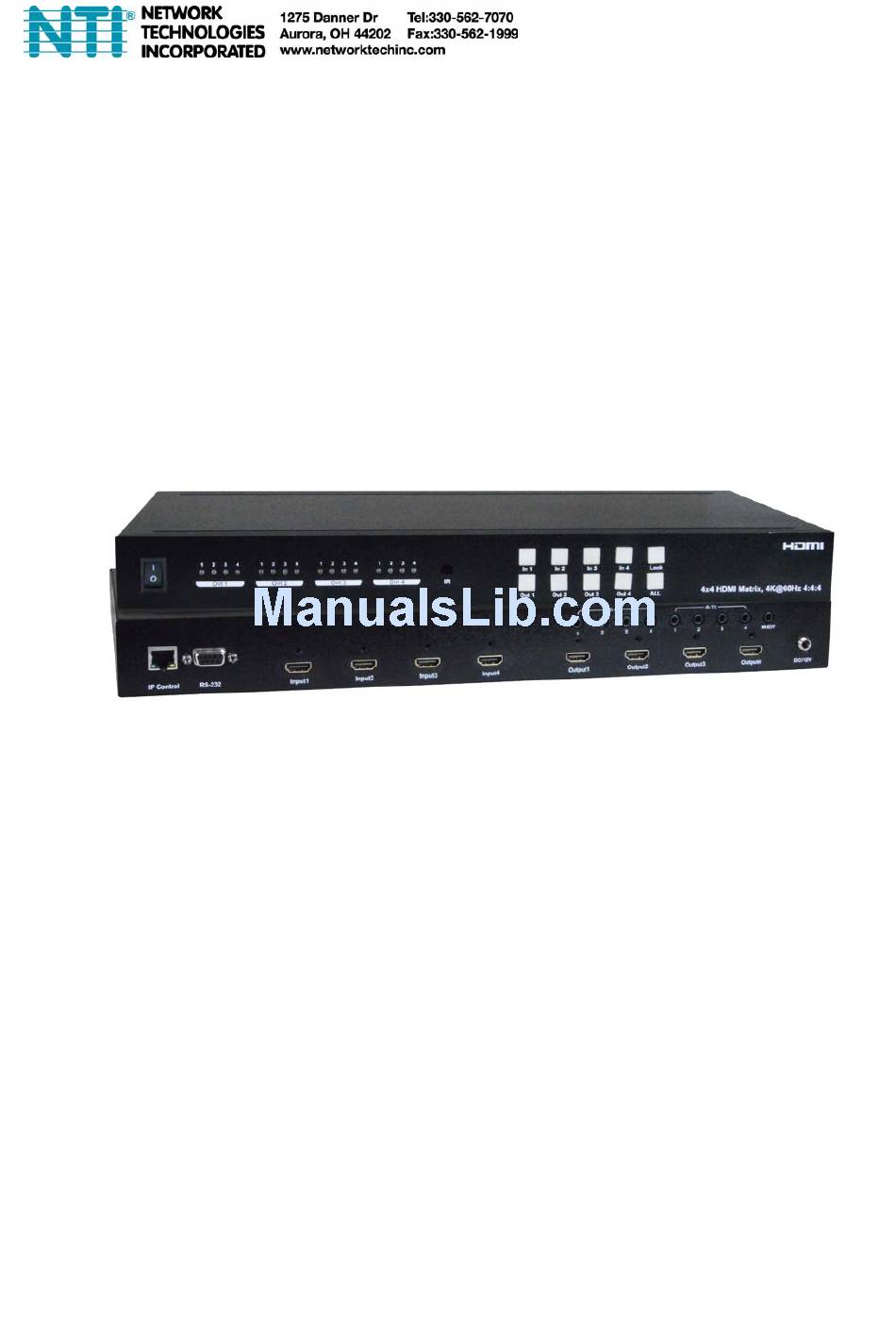

- Page 1 SM-4X4-4K18GB-LC Low Cost 4K HDMI Video Matrix Switch: 4x4 Operating Instruction...
- Page 2 Operating Instruction Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
Operating Instruction Table of Contents 1. Features..................4 2. Package Contents..............4 3. Specifications................4 4. Panel Descriptions..............5 5. Connecting and Operating............6 6. Application Diagrams...............6 7. Remote Control Description.............7 8. RS232 Pin Assignment.............7 9. RS232 Control................8 ...............8 9.1 Software Control ..............11 9.2 Command Control 10. -
Page 4: Features
Operating Instruction Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1. Features 4xHDMI input, 4xHDMI output, any one of the 4 sources to any one of the 4 Displays. ... -
Page 5: Panel Descriptions
Operating Instruction 4. Panel Descriptions ① Power on/off. ② These LED indicates the status of each output selection. ③ IR receive window. ④ Input button IN1~4: choose the desired input port from ports 1~4. ⑤ Output button OUT1~4: choose the desired output port from ports 1~4. ⑥... -
Page 6: Connecting And Operating
Operating Instruction 5. Connecting and Operating 1. Connect source devices to input ports of the matrix 2. Connect HDMI output ports to TV or other HDMI sink devices. 3. Optional: connect RS232 cable from PC RS232 port. 4. Optional: connect an Ethernet cable from the TCP/IP port on the matrix to a local area network. -
Page 7: Remote Control Description
Operating Instruction 7. Remote Control Description ① Standby Mode. ② OUTPUT-X select INPUT-Y: Press OUTPUT-X (X = 1 to 4 of outputs) Press INPUT-Y (Y = 1 to 4 of inputs) ③ All outputs select INPUT-Y: Press ALL button in zone OUTPUT Press INPUT-Y button (Y = 1 to 4 of inputs), then INPUT-Y will be switched to ALL OUTPUTS. -
Page 8: Rs232 Control
Operating Instruction 9. RS232 Control 9.1 Software control Connect the 4x4 Matrix to PC with a RS232 cable, download and open the software your PC. On the COM Setting session, select the COM port according to your PC and click Connect to get connected. On this COM setting session, you can also change the Device name, Device name support up to 16 characters. - Page 9 Operating Instruction The EDID session helps us to Read and Configure EDID for each input, such as HDR, 3D, Data rates and Audio channel. Picture 2 The IP configure session helps to read and configure the IP address and MAC of the Matrix.
- Page 10 Operating Instruction The Net Config session allows us to configure the PC and Matrix in the same LAN with the IP Address and connection. Click “Net config” → “Connect” → “Search Device” → “Sel Device Number” →“Connect” Picture 4 Picture 5...
-
Page 11: Command Control
Operating Instruction The last session is System Config, which allows power ON/OFF, system reset, or Default Reset of the Matrix. Picture 6 9.2 Command Control 1). Open CommUart Assistant. 2). Comport setting: Baud Rate: 115200 bps Parity: None Data Bits: 8 bit Stop Bits: 1 bit... - Page 12 Operating Instruction 4). Command Command Function Note Mirror all inputs and outputs @W 04 00 01 02 03 # PTP Function (Ex. Input 1 to output 1, input 2 to output 2, etc) @W 50 # Reboot @W 51 # Restore Factory Setting 00: Standby Mode @W 0F 00 #...
-
Page 13: Web Control
Operating Instruction 10. Web Control 1). Connect the HDMI Matrix and PC to the LAN. 2). Open the PC tool (downloaded from our website). 3). Search the IP address of HDMI Matrix, please refer to picture 4 & picture 5. 4). - Page 14 Operating Instruction Picture 10: IP Configuration Page MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE （1）Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged;...
