The LCD Control Panel

2. The LCD Control Panel

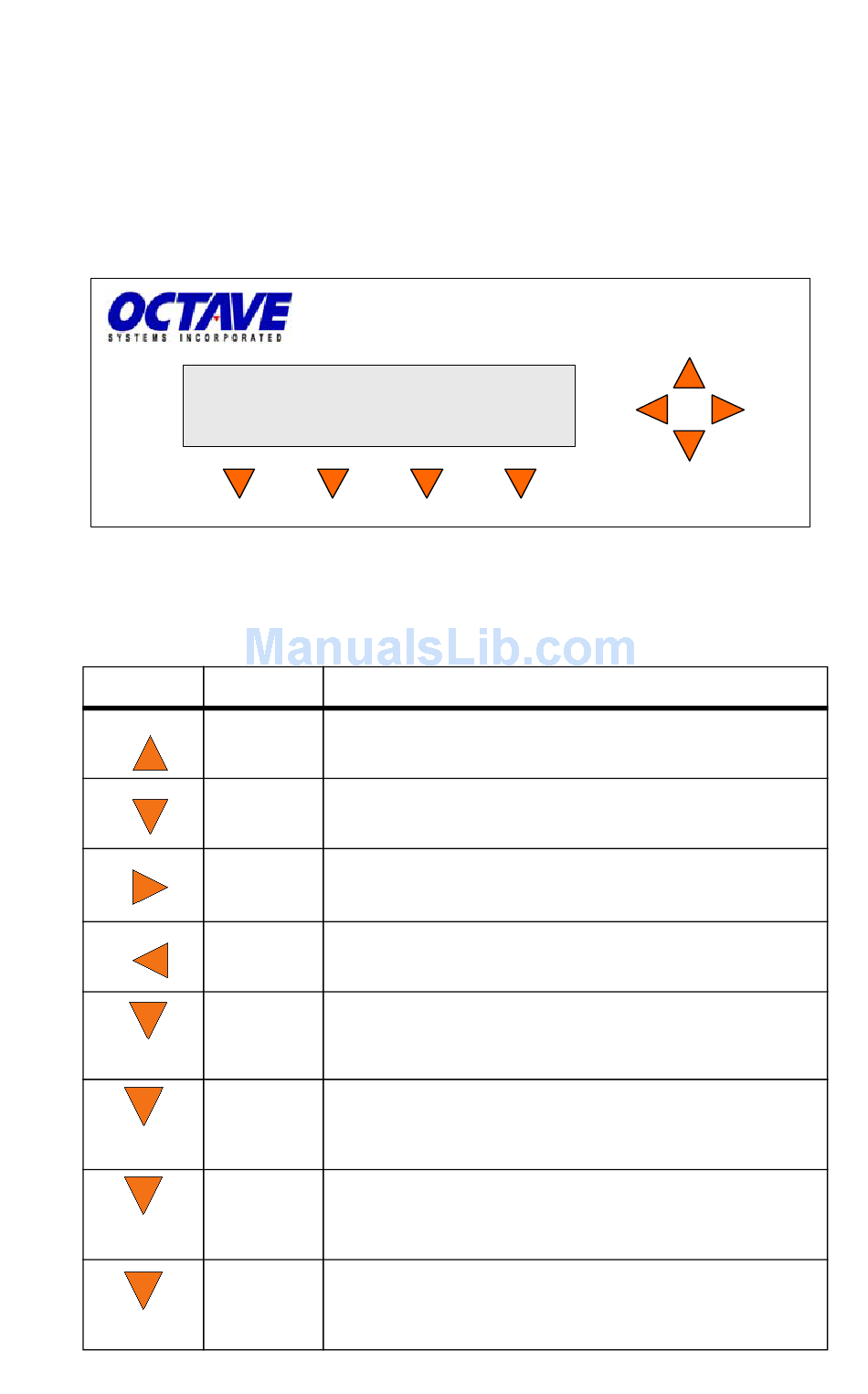

Figure 1-1 shows the LCD Control Panel. This panel has a two-line by 20
character LCD display to provide user feedback and eight push buttons to
control the operation of the Copy Master II. The functions for these buttons
are shown in Table 1-1.
Copy Master II
1.Copy
Copy
Figure 1-1 LCD Control Panel Layout
Table 1-1 Front Panel Controls
Control Name
Up
Down
Enter
ESC
Copy
Copy
Test
Test
Speed
Speed
Source
Source
Octave Systems Inc.
Copy Master II
Test Spe e d
Scroll up through the menu or list.
Scroll down through the menu or list.
Execute the function.
Also called OK in the Menus.
Go back to the previous function
Quick key to make a copy. Pressing this key takes
you directly to the 1. Copy menu.
Quick key to make a simulation of the copy pro-
cess. Pressing this key takes you directly to the
2. Test menu.
Quick key to change the duplication speed.
Pressing this key takes you directly to the 7.
Speed menu.
Quick key to change the master reading source.
Pressing this key takes you directly to the 8.
Source menu.
5.42
ESC
Source
Function
Up
Enter
Down
