The Set Mode allows the user to change various settings in
the transceiver to suit their operating requirements. Available
settings may differ, depending on the preprogramming of the
optional CS-41S
CLONING SOFTWARE
accessed by pushing and holding [Top] for 2 seconds. If no
key is pushed for 30 seconds, the transceiver will return to
the normal mode.

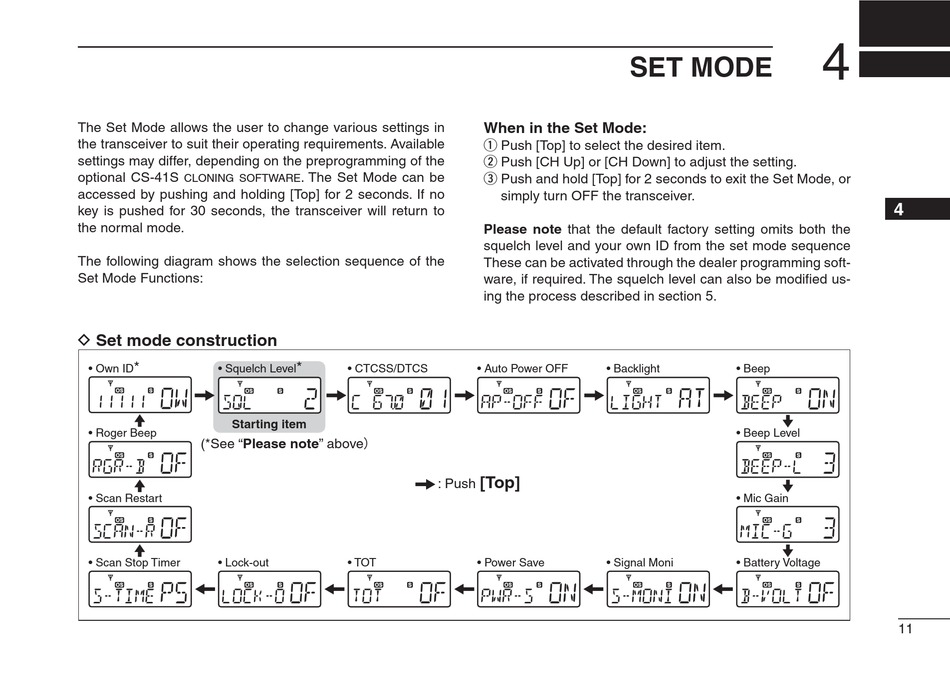

The following diagram shows the selection sequence of the
Set Mode Functions:
D Set mode construction
*
• Own ID • Squelch Level
Starting item
• Roger Beep
(*See "Please note" above
• Scan Restart
• Scan Stop Timer • Lock-out
. The Set Mode can be
*
• CTCSS/DTCS
: Push
• TOT

SET MODE

When in the Set Mode:
q
Push [Top] to select the desired item.
w
Push [CH Up] or [CH Down] to adjust the setting.
e
Push and hold [Top] for 2 seconds to exit the Set Mode, or
simply turn OFF the transceiver.
Please note that the default factory setting omits both the
squelch level and your own ID from the set mode sequence
These can be activated through the dealer programming soft-
ware, if required. The squelch level can also be modifi ed us-
ing the process described in section 5.
• Auto Power OFF • Backlight
[Top]
• Power Save • Signal Moni
4
4
• Beep
• Beep Level
• Mic Gain
• Battery Voltage
