Options; Optional Battery Case (Bp-240) - Icom IC-41S Instruction Manual

11

OPTIONS

■

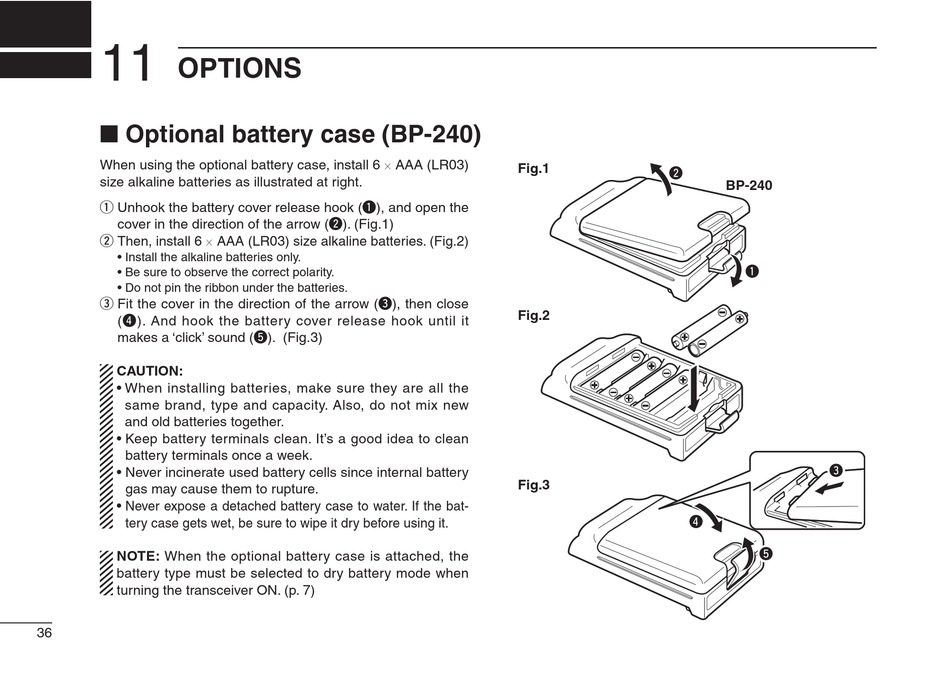

Optional battery case (BP-240)

When using the optional battery case, install 6  AAA (LR03)
size alkaline batteries as illustrated at right.
q Unhook the battery cover release hook (q), and open the
cover in the direction of the arrow (w). (Fig.1)
w Then, install 6  AAA (LR03) size alkaline batteries. (Fig.2)
• Install the alkaline batteries only.
• Be sure to observe the correct polarity.
• Do not pin the ribbon under the batteries.
e Fit the cover in the direction of the arrow (e), then close
(r). And hook the battery cover release hook until it
makes a 'click' sound (t). (Fig.3)
CAUTION:
• When installing batteries, make sure they are all the
same brand, type and capacity. Also, do not mix new
and old batteries together.
• Keep battery terminals clean. It's a good idea to clean
battery terminals once a week.
• Never incinerate used battery cells since internal battery
gas may cause them to rupture.
• Never expose a detached battery case to water. If the bat-
tery case gets wet, be sure to wipe it dry before using it.
NOTE: When the optional battery case is attached, the
battery type must be selected to dry battery mode when
turning the transceiver ON. (p. 7)
36
Fig.1
w
Fig.2
Fig.3
r
BP-240
q
e
t
