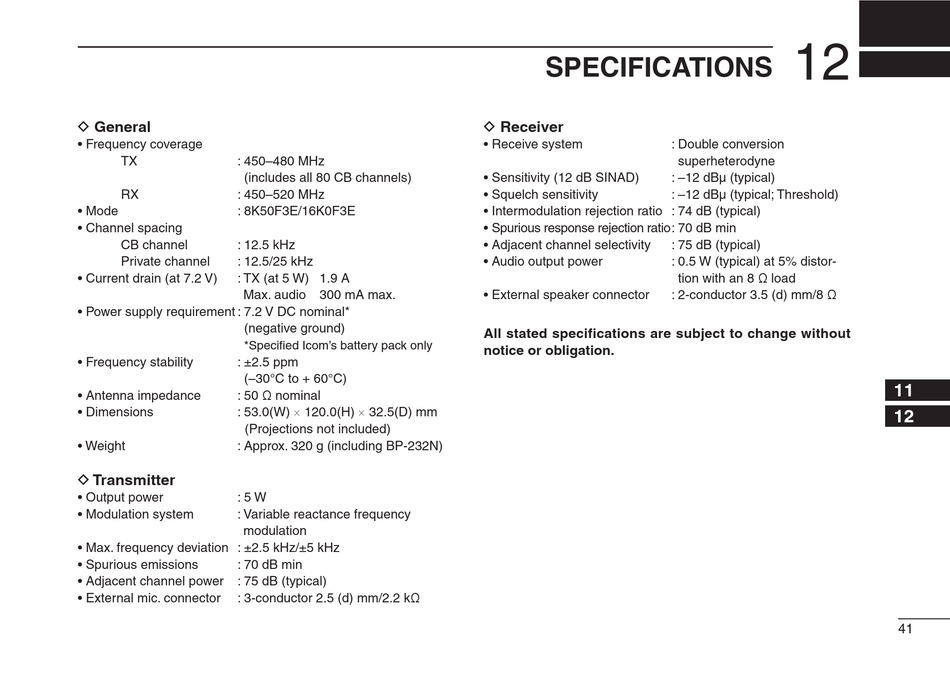

Specifications - Icom IC-41S Instruction Manual

D General
• Frequency coverage
TX : 450–480 MHz
(includes all 80 CB channels)
RX : 450–520 MHz
• Mode : 8K50F3E/16K0F3E
• Channel spacing
CB channel : 12.5 kHz
Private channel : 12.5/25 kHz
• Current drain (at 7.2 V) : TX (at 5 W) 1.9 A
Max. audio 300 mA max.
• Power supply requirement : 7.2 V DC nominal*
(negative ground)
*Specifi ed Icom's battery pack only
• Frequency stability : ±2.5 ppm
(–30°C to + 60°C)
: 50 Ω nominal
• Antenna impedance
: 53.0(W)  120.0(H)  32.5(D) mm
• Dimensions
(Projections not included)
• Weight : Approx. 320 g (including BP-232N)
D Transmitter
• Output power : 5 W
• Modulation system : Variable reactance frequency
modulation
• Max. frequency deviation : ±2.5 kHz/±5 kHz
• Spurious emissions : 70 dB min
• Adjacent channel power : 75 dB (typical)
• External mic. connector : 3-conductor 2.5 (d) mm/2.2 kΩ

SPECIFICATIONS

D Receiver
• Receive system
• Sensitivity (12 dB SINAD)
• Squelch sensitivity
• Intermodulation rejection ratio : 74 dB (typical)
• Spurious response rejection ratio : 70 dB min
• Adjacent channel selectivity
• Audio output power
• External speaker connector
All stated specifications are subject to change without
notice or obligation.
12
: Double conversion
superheterodyne
: –12 dBµ (typical)
: –12 dBµ (typical; Threshold)
: 75 dB (typical)
: 0.5 W (typical) at 5% distor-
tion with an 8 Ω load
: 2-conductor 3.5 (d) mm/8 Ω
