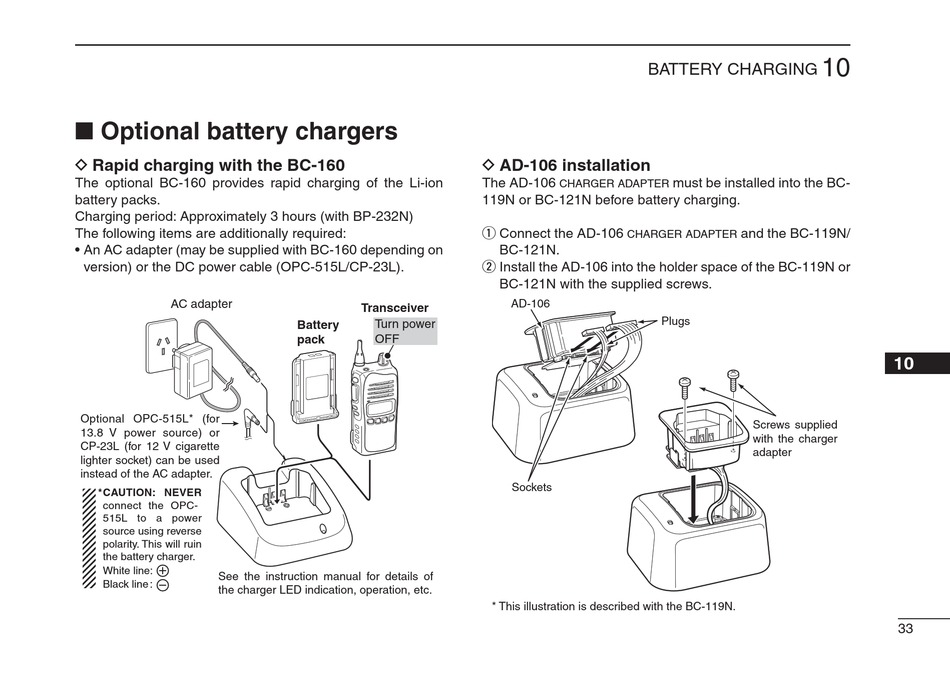

Rapid charging with the BC-160
The optional BC-160 provides rapid charging of the Li-ion
battery packs.
Charging period: Approximately 3 hours (with BP-232N)
The following items are additionally required:
• An AC adapter (may be supplied with BC-160 depending on
version) or the DC power cable (OPC-515L/CP-23L).
AC adapter
Optional OPC-515L* (for
13.8 V power source) or
CP-23L (for 12 V cigarette
lighter socket) can be used
instead of the AC adapter.
*
CAUTION: NEVER
connect the OPC-
515L to a power
source using reverse
polarity. This will ruin
the battery charger.
White line:
See the instruction manual for details of
Black line :
the charger LED indication, operation, etc.
Transceiver
Turn power
Battery
OFF
pack
BATTERY CHARGING
D
AD-106 installation
The AD-106
CHARGER ADAPTER
119N or BC-121N before battery charging.
q Connect the AD-106
CHARGER ADAPTER
BC-121N.
w Install the AD-106 into the holder space of the BC-119N or
BC-121N with the supplied screws.
AD-106
Plugs
Sockets
* This illustration is described with the BC-119N.
10
must be installed into the BC-
and the BC-119N/
Screws supplied
with the charger
adapter
10
10
33
