Contents; Attaching - Icom IC-41S Instruction Manual

■

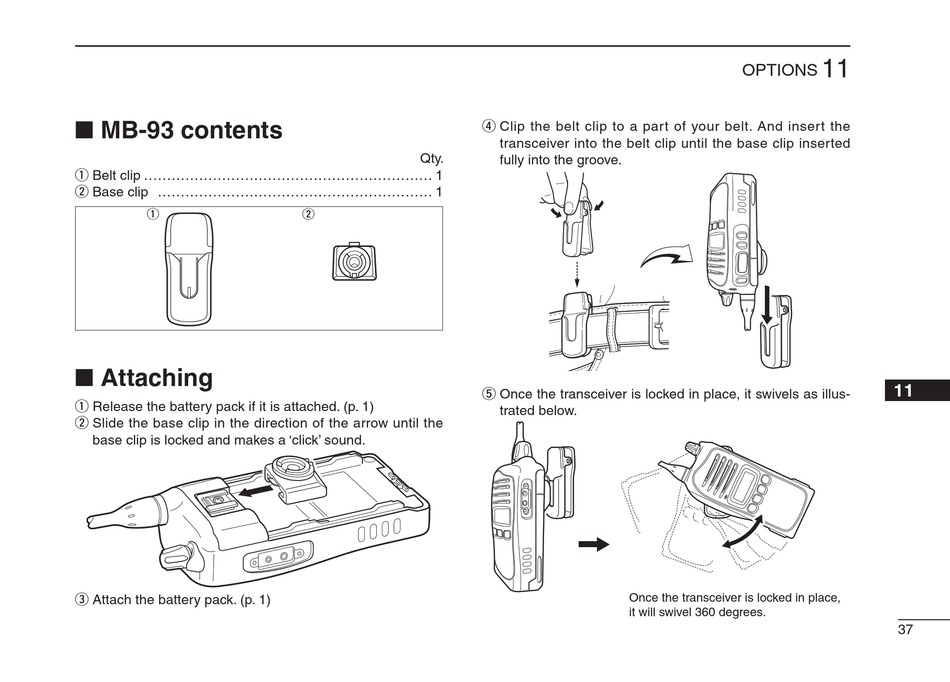

MB-93 contents
q Belt clip ............................................................... 1
w Base clip ............................................................ 1
q
■

Attaching

q Release the battery pack if it is attached. (p. 1)
w Slide the base clip in the direction of the arrow until the
base clip is locked and makes a 'click' sound.
e Attach the battery pack. (p. 1)
r Clip the belt clip to a part of your belt. And insert the
Qty.
w
t Once the transceiver is locked in place, it swivels as illus-
transceiver into the belt clip until the base clip inserted
fully into the groove.
trated below.
Once the transceiver is locked in place,
it will swivel 360 degrees.
11
OPTIONS
11
37
