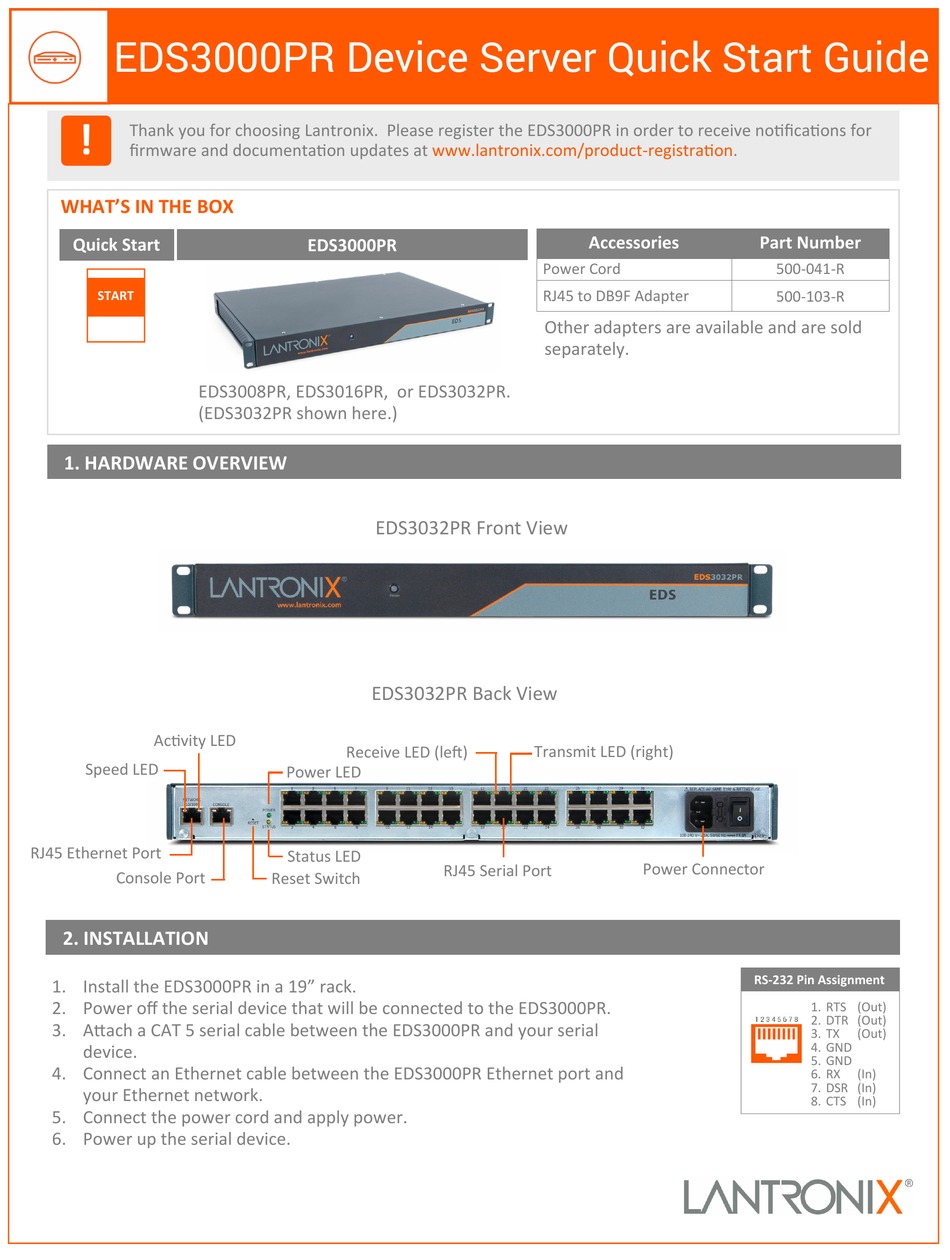

EDS3000PR Device Server Quick Start Guide
!
Thank you for choosing Lantronix. Please register the EDS3000PR in order to receive no fica ons for
firmware and documenta
WHAT'S IN THE BOX
Quick Start
START
1. HARDWARE OVERVIEW
Ac vity LED
Speed LED
RJ45 Ethernet Port
Console Port
2. INSTALLATION
1. Install the EDS3000PR in a 19" rack.
2. Power off the serial device that will be connected to the EDS3000PR.
3. A ach a CAT 5 serial cable between the EDS3000PR and your serial
device.
4. Connect an Ethernet cable between the EDS3000PR Ethernet port and
your Ethernet network.
5. Connect the power cord and apply power.
6. Power up the serial device.
on updates at www.lantronix.com/product‐registra
EDS3000PR
EDS3008PR, EDS3016PR, or EDS3032PR.
(EDS3032PR shown here.)

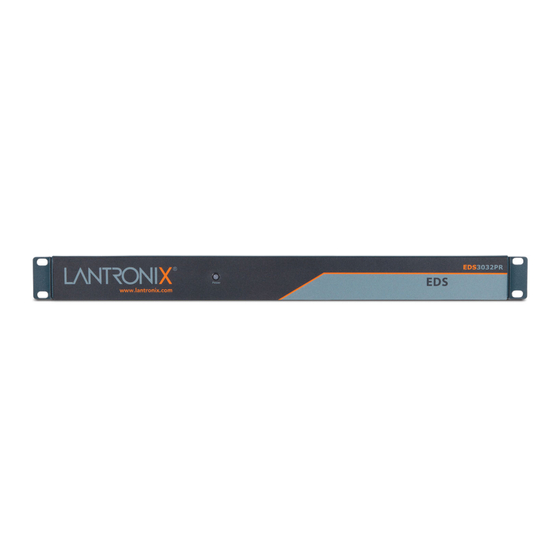

EDS3032PR Front View
EDS3032PR Back View
Receive LED (le )
Power LED
Status LED
Reset Switch
Accessories
Power Cord
RJ45 to DB9F Adapter
Other adapters are available and are sold
separately.
Transmit LED (right)
RJ45 Serial Port
on.
Part Number
500‐041‐R
500‐103‐R
Power Connector
RS‐232 Pin Assignment
1. RTS (Out)
2. DTR (Out)
3. TX (Out)
4. GND
5. GND
6. RX (In)
7. DSR (In)
8. CTS (In)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lantronix EDS3000PR
Summary of Contents for Lantronix EDS3000PR
- Page 1 EDS3000PR Device Server Quick Start Guide Thank you for choosing Lantronix. Please register the EDS3000PR in order to receive no fica ons for firmware and documenta on updates at www.lantronix.com/product‐registra WHAT’S IN THE BOX Accessories Part Number Quick Start EDS3000PR Power Cord 500‐041‐R RJ45 to DB9F Adapter 500‐103‐R START Other adapters are available and are sold separately. EDS3008PR, EDS3016PR, or EDS3032PR. (EDS3032PR shown here.) 1. HARDWARE OVERVIEW EDS3032PR Front View EDS3032PR Back View ...
- Page 2 EDS3000PR Device Server Quick Start Guide 3. DEVICE DISCOVERY The EDS3000PR must have a unique IP address on 2. Install Lantronix Provisioning Manager. your network. This IP address can be assigned auto‐ 3. Run Lantronix Provisioning Manager. ma cally with DHCP, or you can assign it manually. 4. If this is your first me running Lantronix Provi‐ The EDS3000PR looks for a DHCP server when it first sioning Manager, proceed through the ini al set‐ powers up to assign an IP address. You can use Lant‐ up. ronix Provisioning Manager to locate the automa cal‐ 5. Locate your device in the device list and note the ly assigned IP address. IP address. 1. Download the latest version of Lantronix Provi‐ For detailed instruc ons, see the Lantronix Provision‐...
