Figure 5-6. Hostlist Option - Lantronix UDS200 User Manual

Configuring the UDS Using Telnet or the Serial Port
To use the hostlist option, follow these steps:
1. To enable the hostlist, enter a Connect Mode of 0x20 (2X). The menu shows you
a list of current entries already defined in the product.
2. To delete, modify, or add an entry, select Yes. If you enter an IP address of
0.0.0.0, that entry and all others after it are deleted.
3. After completing the hostlist, repeat the previous step if necessary to edit the
hostlist again.
4. For Retrycounter, enter the number of times the Lantronix unit should try to
make a good network connection to a hostlist entry that it has successfully
ARPed.
5. For Retrytimeout, enter the number of seconds the unit should wait before
failing an attempted connection.

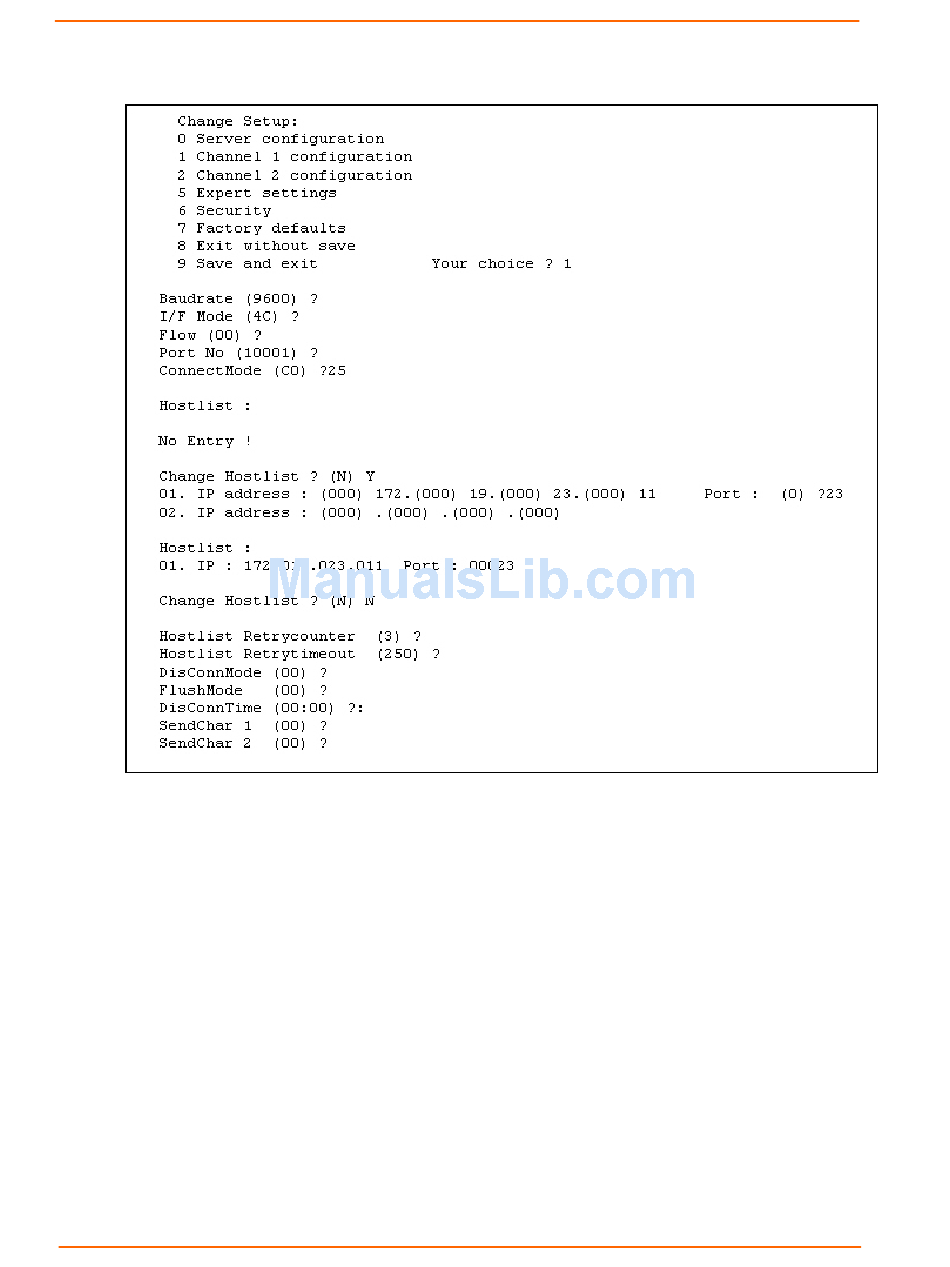

Figure 5-6. Hostlist Option

28
UDS200 User Guide
