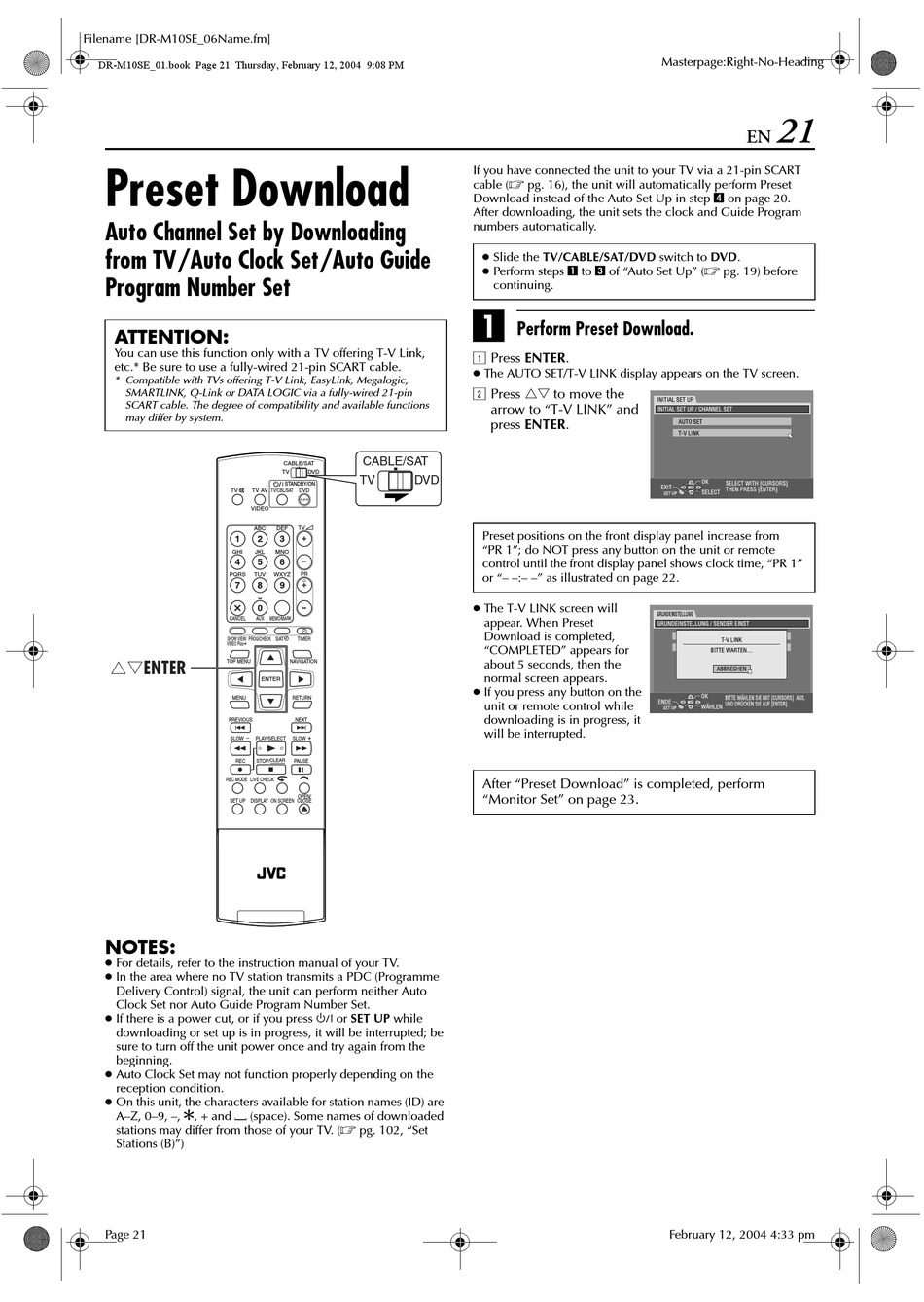

Preset Download

Auto Channel Set by Downloading
from TV/Auto Clock Set/Auto Guide
Program Number Set
ATTENTION:
You can use this function only with a TV offering T-V Link,
etc.* Be sure to use a fully-wired 21-pin SCART cable.
* Compatible with TVs offering T-V Link, EasyLink, Megalogic,
SMARTLINK, Q-Link or DATA LOGIC via a fully-wired 21-pin
SCART cable. The degree of compatibility and available functions
may differ by system.
TV TV AV
VIDEO
ABC
GHI JKL
PQRS TUV
CANCEL AUX
SHOW VIEW/ PROG/CHECK
VIDEO Plus +
TOP MENU
rtENTER
MENU
PREVIOUS
SLOW PLAY/SELECT
REC STOP/
REC MODE LIVE CHECK
SET UP DISPLAY ON SCREEN
AUDIO SUBTITLE ANGLE
NOTES:
For details, refer to the instruction manual of your TV.
In the area where no TV station transmits a PDC (Programme
Delivery Control) signal, the unit can perform neither Auto
Clock Set nor Auto Guide Program Number Set.
If there is a power cut, or if you press 1 or SET UP while
downloading or set up is in progress, it will be interrupted; be
sure to turn off the unit power once and try again from the
beginning.
Auto Clock Set may not function properly depending on the
reception condition.
On this unit, the characters available for station names (ID) are
A–Z, 0–9, –, , + and (space). Some names of downloaded
f I
stations may differ from those of your TV. (
Stations (B)")
Page 21
CABLE/SAT
CABLE/SAT
TV DVD
TV DVD
STANDBY/ON
TV/CBL/SAT DVD
DEF TV%
MNO
PR
WXYZ
MEMO/MARK
SAT# TIMER
NAVIGATION
ENTER
RETURN
NEXT
SLOW
CLEAR PAUSE
OPEN/
CLOSE
PROGRESSIVE
SCAN
pg. 102, "Set
If you have connected the unit to your TV via a 21-pin SCART
cable ( pg. 16), the unit will automatically perform Preset
Download instead of the Auto Set Up in step D on page 20.
After downloading, the unit sets the clock and Guide Program
numbers automatically.
Slide the TV/CABLE/SAT/DVD switch to DVD.
Perform steps A to C of "Auto Set Up" (
continuing.
A
Perform Preset Download.
A Press ENTER.
The AUTO SET/T-V LINK display appears on the TV screen.
B Press rt to move the
arrow to "T-V LINK" and
press ENTER.
Preset positions on the front display panel increase from
"PR 1"; do NOT press any button on the unit or remote
control until the front display panel shows clock time, "PR 1"
or "– –:– –" as illustrated on page 22.
The T-V LINK screen will
appear. When Preset
Download is completed,
"COMPLETED" appears for
about 5 seconds, then the
normal screen appears.
If you press any button on the
unit or remote control while
downloading is in progress, it
will be interrupted.
After "Preset Download" is completed, perform
"Monitor Set" on page 23.
