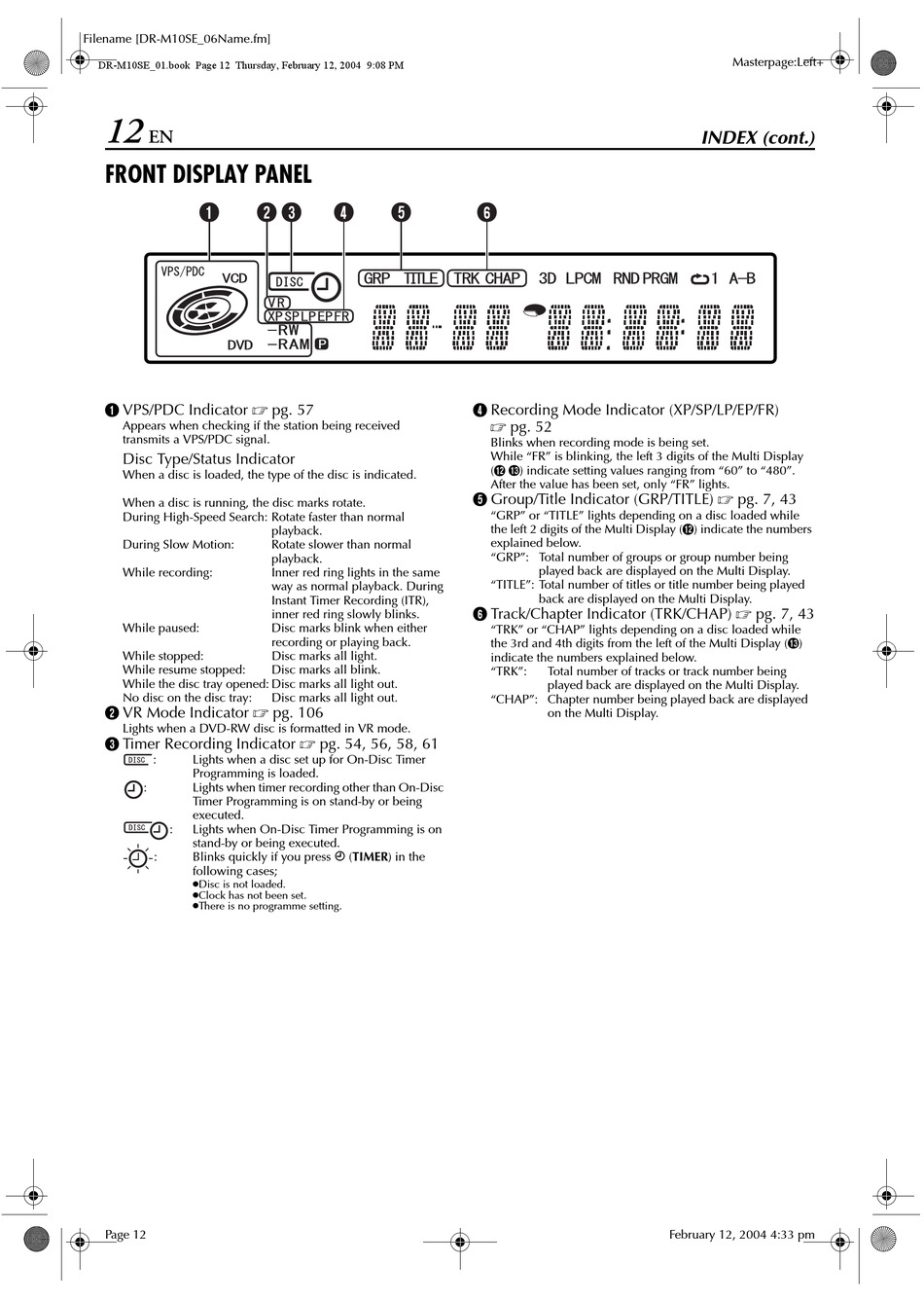

FRONT DISPLAY PANEL

A VPS/PDC Indicator
Appears when checking if the station being received
transmits a VPS/PDC signal.
Disc Type/Status Indicator
When a disc is loaded, the type of the disc is indicated.
When a disc is running, the disc marks rotate.
During High-Speed Search: Rotate faster than normal
During Slow Motion:
While recording:
While paused:
While stopped:
While resume stopped:
While the disc tray opened: Disc marks all light out.
No disc on the disc tray:
B VR Mode Indicator
Lights when a DVD-RW disc is formatted in VR mode.
C Timer Recording Indicator
: Lights when a disc set up for On-Disc Timer
Programming is loaded.
: Lights when timer recording other than On-Disc
Timer Programming is on stand-by or being
executed.
: Lights when On-Disc Timer Programming is on
stand-by or being executed.
: Blinks quickly if you press # (TIMER) in the
following cases;
Disc is not loaded.
Clock has not been set.
There is no programme setting.
Page 12
pg. 57
playback.
Rotate slower than normal
playback.
Inner red ring lights in the same
way as normal playback. During
Instant Timer Recording (ITR),
inner red ring slowly blinks.
Disc marks blink when either
recording or playing back.
Disc marks all light.
Disc marks all blink.
Disc marks all light out.
pg. 106
pg. 54, 56, 58, 61
D Recording Mode Indicator (XP/SP/LP/EP/FR)
pg. 52
Blinks when recording mode is being set.
While "FR" is blinking, the left 3 digits of the Multi Display
(L M) indicate setting values ranging from "60" to "480".
After the value has been set, only "FR" lights.
E Group/Title Indicator (GRP/TITLE)
"GRP" or "TITLE" lights depending on a disc loaded while
the left 2 digits of the Multi Display (L) indicate the numbers
explained below.
"GRP": Total number of groups or group number being
played back are displayed on the Multi Display.
"TITLE": Total number of titles or title number being played
back are displayed on the Multi Display.
F Track/Chapter Indicator (TRK/CHAP)
"TRK" or "CHAP" lights depending on a disc loaded while
the 3rd and 4th digits from the left of the Multi Display (M)
indicate the numbers explained below.
"TRK": Total number of tracks or track number being
played back are displayed on the Multi Display.
"CHAP": Chapter number being played back are displayed
on the Multi Display.
