Connecting To A Satellite Receiver

Simple Connections

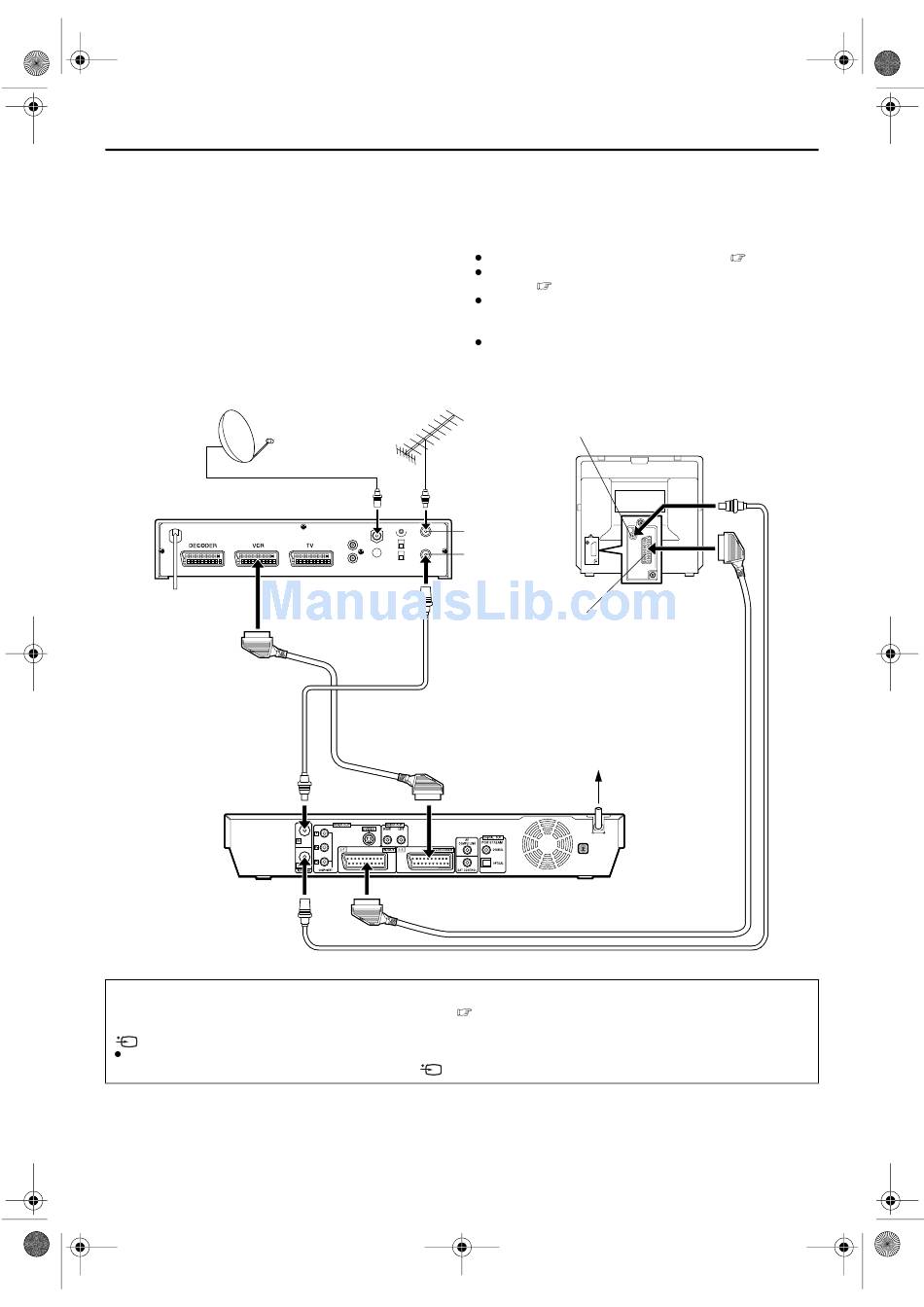

This is an example of a simple connection if your TV has
one 21-pin AV input (SCART) connector.
Connect the satellite receiver to the L-2 IN/DECODER
connector, then connect the L-1 IN/OUT connector to
the TV's connector.
Satellite receiver
IMPORTANT:
When you set "L-2 SELECT" to "SAT VIDEO" or "SAT S-VIDEO" (
a satellite broadcast with the TV set to its AV mode even if the unit is turned off. When the unit is in Stop mode or recording, press
on the remote control to turn off the VIDEO indicator on the unit.
If you turn on the unit when the satellite receiver's power is off, nothing appears on the TV screen. In this case, turn on the
satellite receiver, or set the TV to its TV mode, or press
Page 88
Aerial
Outdoor unit
Satellite cable TV aerial cable

SYSTEM CONNECTIONS

NOTES:
Set "L-2 SELECT" to "VIDEO" or "S-VIDEO". (
You can use the Automatic Satellite Programme Recording
function ( pg. 63) with this connection.
To record a programme via the satellite receiver, select L-2
mode by pressing PR +/– so that "L-2" appears on the front
display panel.
For details, refer to the instruction manual of the satellite
receiver.
Aerial connector
ANTENNA IN
ANTENNA OUT
21-pin SCART connector
Mains outlet
Back of unit
pg. 83, "L-2 Select Setting (L-2 SELECT)"), it is possible to view
on the remote control to set the unit to the AV mode.
Masterpage:Left0
pg. 83)
Back of TV
