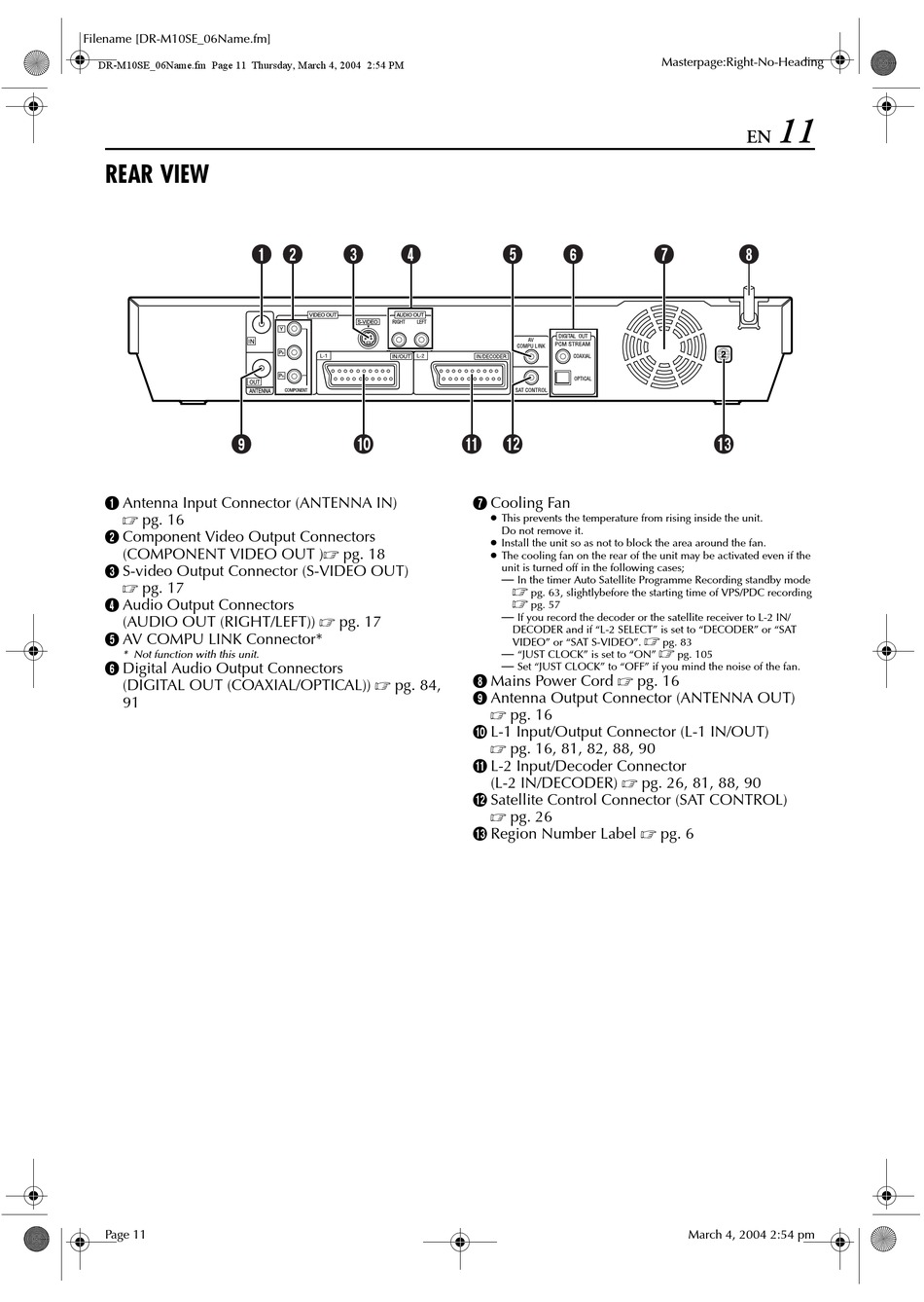

REAR VIEW

A Antenna Input Connector (ANTENNA IN)
pg. 16
B Component Video Output Connectors
(COMPONENT VIDEO OUT )
C S-video Output Connector (S-VIDEO OUT)
pg. 17
D Audio Output Connectors
(AUDIO OUT (RIGHT/LEFT))
E AV COMPU LINK Connector*
* Not function with this unit.
F Digital Audio Output Connectors
(DIGITAL OUT (COAXIAL/OPTICAL))
91
Page 11
G Cooling Fan
This prevents the temperature from rising inside the unit.
Do not remove it.
Install the unit so as not to block the area around the fan.
pg. 18
The cooling fan on the rear of the unit may be activated even if the
unit is turned off in the following cases;
—
—
pg. 17
DECODER and if "L-2 SELECT" is set to "DECODER" or "SAT
VIDEO" or "SAT S-VIDEO".
—
—
H Mains Power Cord
pg. 84,
I Antenna Output Connector (ANTENNA OUT)
pg. 16
J L-1 Input/Output Connector (L-1 IN/OUT)
pg. 16, 81, 82, 88, 90
K L-2 Input/Decoder Connector
(L-2 IN/DECODER)
L Satellite Control Connector (SAT CONTROL)
pg. 26
M Region Number Label
Masterpage:Right-No-Heading
In the timer Auto Satellite Programme Recording standby mode
pg. 63, slightlybefore the starting time of VPS/PDC recording
pg. 57
If you record the decoder or the satellite receiver to L-2 IN/
pg. 83
"JUST CLOCK" is set to "ON" pg. 105
Set "JUST CLOCK" to "OFF" if you mind the noise of the fan.
