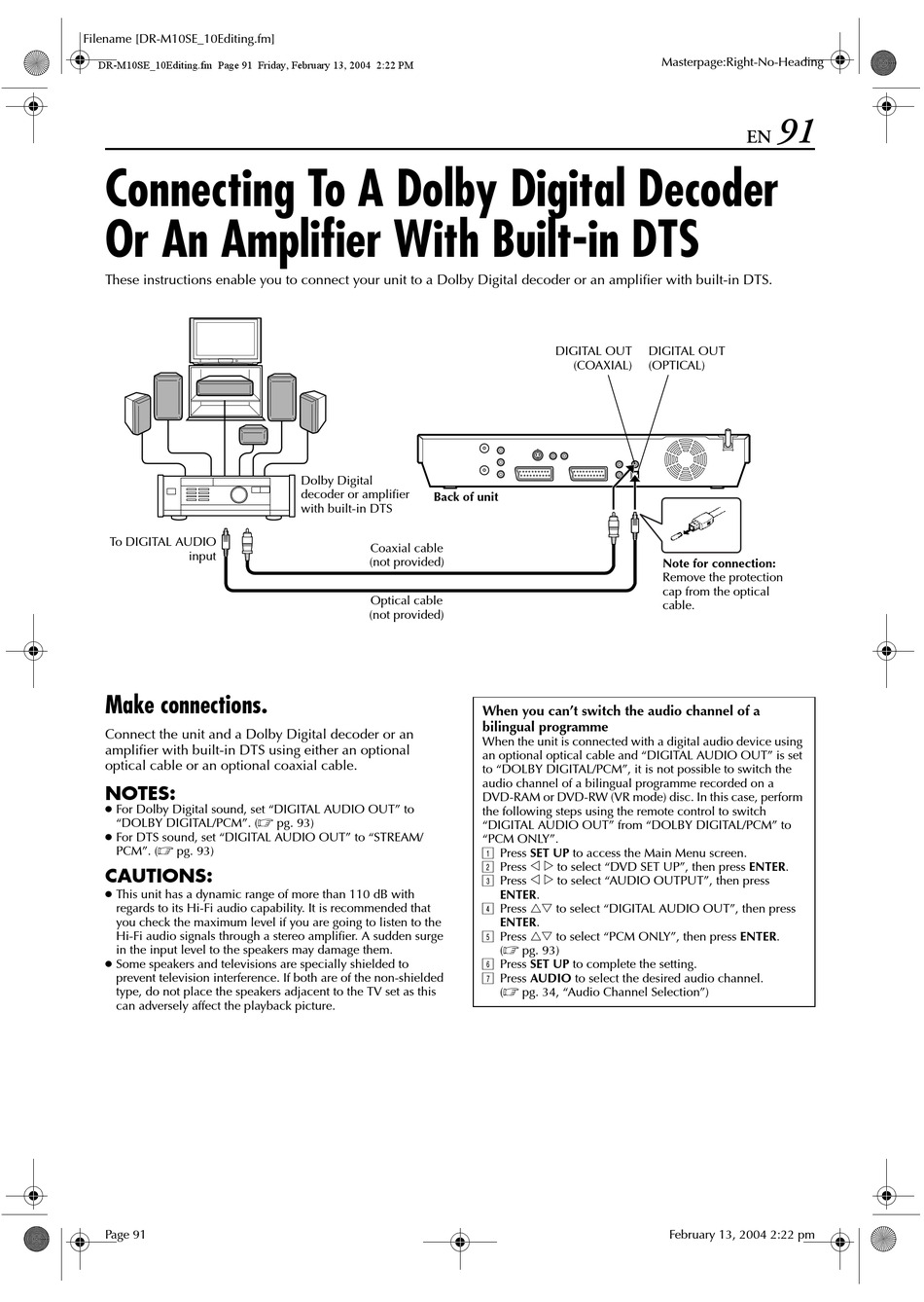

Connecting To A Dolby Digital Decoder
Or An Amplifier With Built-in DTS
These instructions enable you to connect your unit to a Dolby Digital decoder or an amplifier with built-in DTS.
To DIGITAL AUDIO
input
Make connections.
Connect the unit and a Dolby Digital decoder or an
amplifier with built-in DTS using either an optional
optical cable or an optional coaxial cable.
NOTES:
For Dolby Digital sound, set "DIGITAL AUDIO OUT" to
"DOLBY DIGITAL/PCM". (
For DTS sound, set "DIGITAL AUDIO OUT" to "STREAM/
PCM". ( pg. 93)
CAUTIONS:
This unit has a dynamic range of more than 110 dB with
regards to its Hi-Fi audio capability. It is recommended that
you check the maximum level if you are going to listen to the
Hi-Fi audio signals through a stereo amplifier. A sudden surge
in the input level to the speakers may damage them.
Some speakers and televisions are specially shielded to
prevent television interference. If both are of the non-shielded
type, do not place the speakers adjacent to the TV set as this
can adversely affect the playback picture.
Page 91
Dolby Digital
decoder or amplifier
Back of unit
with built-in DTS
Coaxial cable
(not provided)
Optical cable
(not provided)
pg. 93)
DIGITAL OUT DIGITAL OUT
(COAXIAL) (OPTICAL)
When you can't switch the audio channel of a
bilingual programme
When the unit is connected with a digital audio device using
an optional optical cable and "DIGITAL AUDIO OUT" is set
to "DOLBY DIGITAL/PCM", it is not possible to switch the
audio channel of a bilingual programme recorded on a
DVD-RAM or DVD-RW (VR mode) disc. In this case, perform
the following steps using the remote control to switch
"DIGITAL AUDIO OUT" from "DOLBY DIGITAL/PCM" to
"PCM ONLY".
A Press SET UP to access the Main Menu screen.
B Press w e to select "DVD SET UP", then press ENTER.
C Press w e to select "AUDIO OUTPUT", then press
ENTER.
D Press rt to select "DIGITAL AUDIO OUT", then press
ENTER.
E Press rt to select "PCM ONLY", then press ENTER.
( pg. 93)
F Press SET UP to complete the setting.
G Press AUDIO to select the desired audio channel.
( pg. 34, "Audio Channel Selection")
