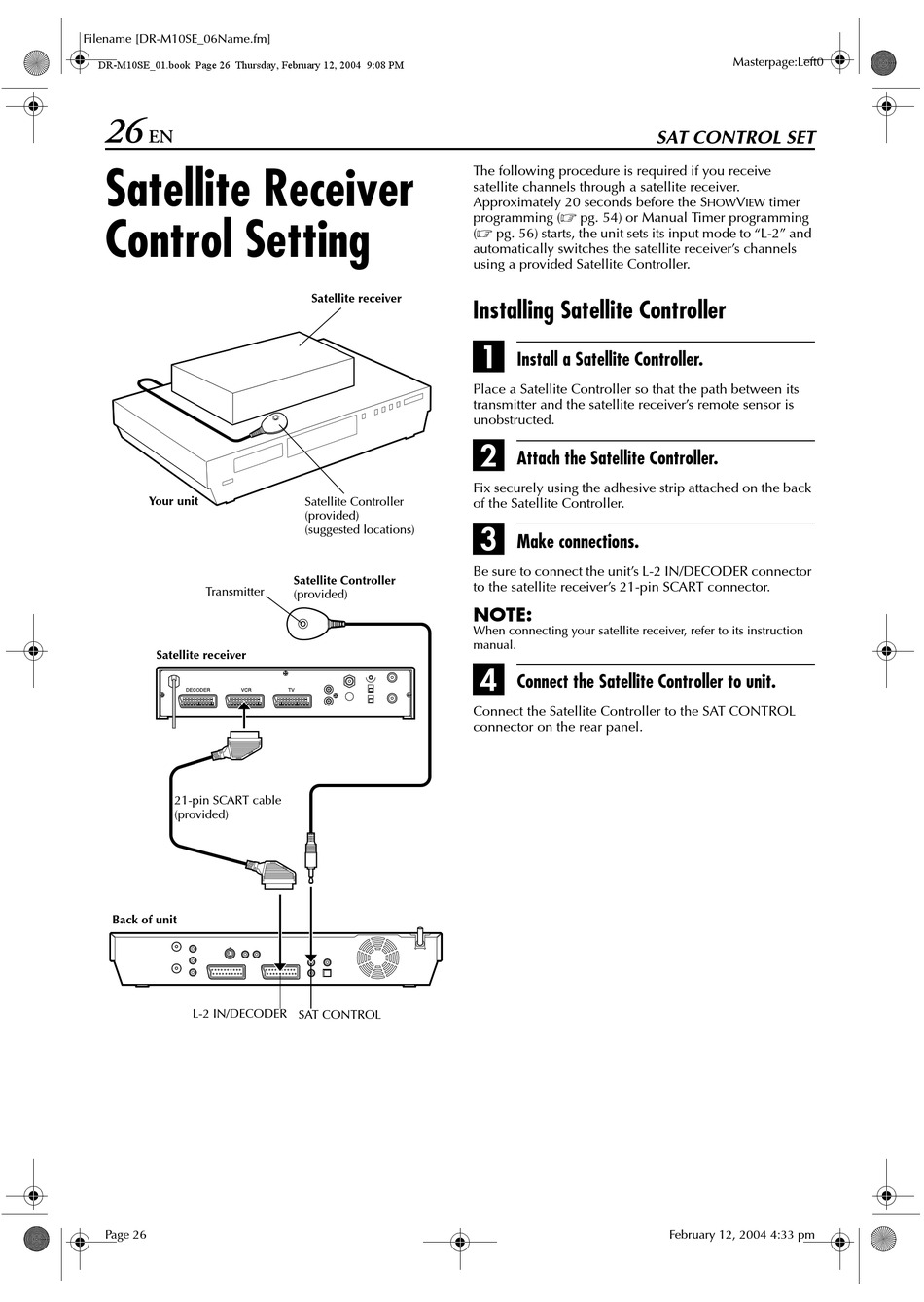

Satellite Receiver
Control Setting
Your unit
Transmitter
Satellite receiver
21-pin SCART cable
(provided)
Back of unit
L-2 IN/DECODER
Page 26
Satellite receiver
Satellite Controller
(provided)
(suggested locations)
Satellite Controller
(provided)
SAT CONTROL
The following procedure is required if you receive
satellite channels through a satellite receiver.
Approximately 20 seconds before the S
programming ( pg. 54) or Manual Timer programming
( pg. 56) starts, the unit sets its input mode to "L-2" and
automatically switches the satellite receiver's channels
using a provided Satellite Controller.
Installing Satellite Controller
A
Install a Satellite Controller.
Place a Satellite Controller so that the path between its
transmitter and the satellite receiver's remote sensor is
unobstructed.
B
Attach the Satellite Controller.
Fix securely using the adhesive strip attached on the back
of the Satellite Controller.
C
Make connections.
Be sure to connect the unit's L-2 IN/DECODER connector
to the satellite receiver's 21-pin SCART connector.
NOTE:
When connecting your satellite receiver, refer to its instruction
manual.
D
Connect the Satellite Controller to unit.
Connect the Satellite Controller to the SAT CONTROL
connector on the rear panel.
