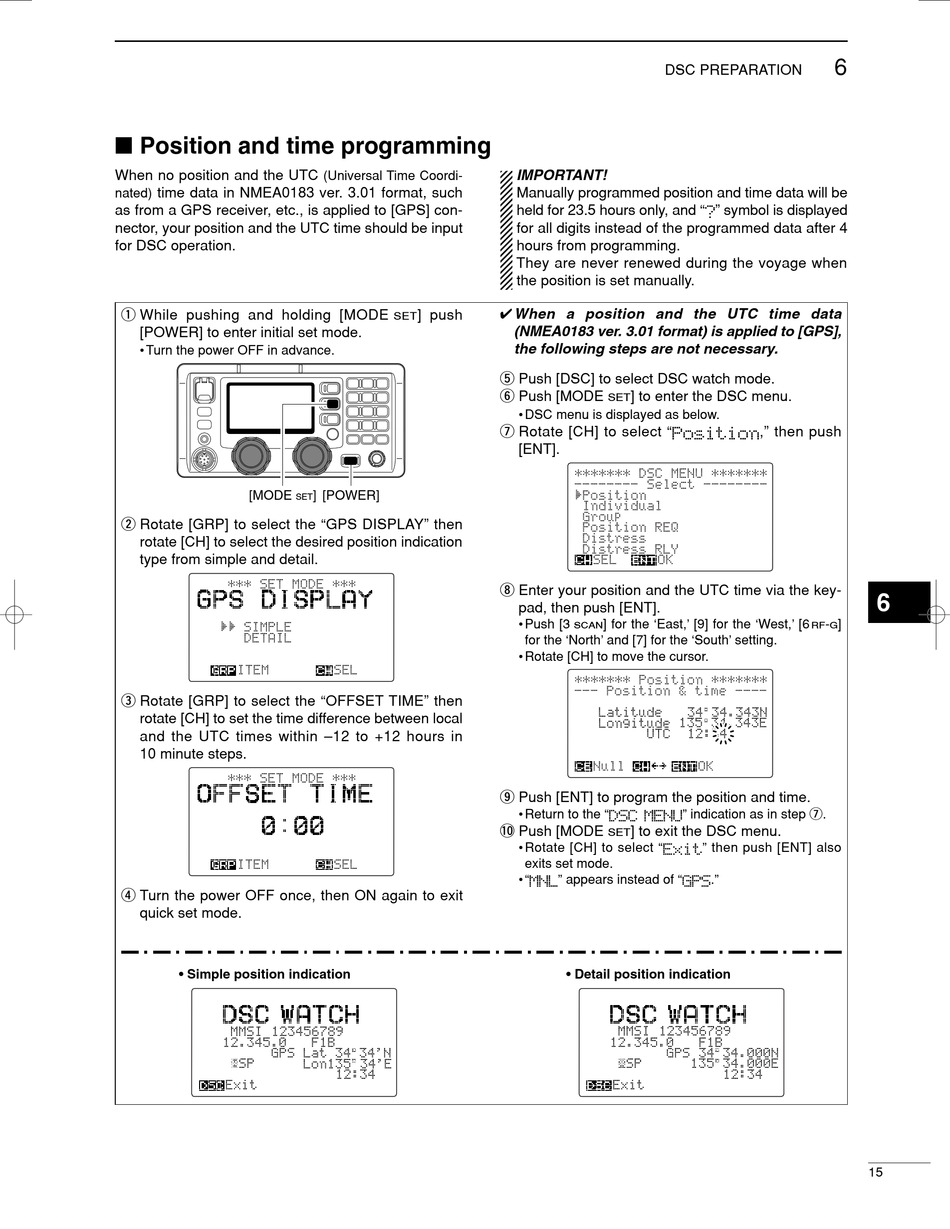

I Position and time programming

When no position and the UTC
time data in NMEA0183 ver. 3.01 format, such
nated)
as from a GPS receiver, etc., is applied to [GPS] con-
nector, your position and the UTC time should be input
for DSC operation.
q While pushing and holding [MODE
[POWER] to enter initial set mode.
• Turn the power OFF in advance.
[MODE
w Rotate [GRP] to select the "GPS DISPLAY" then
rotate [CH] to select the desired position indication
type from simple and detail.
ÇÇ
e Rotate [GRP] to select the "OFFSET TIME" then
rotate [CH] to set the time difference between local
and the UTC times within –12 to +12 hours in
10 minute steps.
r Turn the power OFF once, then ON again to exit
quick set mode.
• Simple position indication
(Universal Time Coordi-
] push
SET
] [POWER]
SET
IMPORTANT!
Manually programmed position and time data will be
held for 23.5 hours only, and " " symbol is displayed
for all digits instead of the programmed data after 4
hours from programming.
They are never renewed during the voyage when
the position is set manually.
✔ When a position and the UTC time data
(NMEA0183 ver. 3.01 format) is applied to [GPS],
the following steps are not necessary.
t Push [DSC] to select DSC watch mode.
y Push [MODE
] to enter the DSC menu.
SET
• DSC menu is displayed as below.
u Rotate [CH] to select "
[ENT].
Ç
i Enter your position and the UTC time via the key-
pad, then push [ENT].
• Push [3 ] for the 'East,' [9] for the 'West,' [6
SCAN
for the 'North' and [7] for the 'South' setting.
• Rotate [CH] to move the cursor.
o Push [ENT] to program the position and time.
• Return to the "
!0 Push [MODE
] to exit the DSC menu.
SET
• Rotate [CH] to select "
exits set mode.
• " " appears instead of "
• Detail position indication

DSC PREPARATION

," then push
-
RF
" indication as in step u.
" then push [ENT] also
."
6
6
]
G
15
