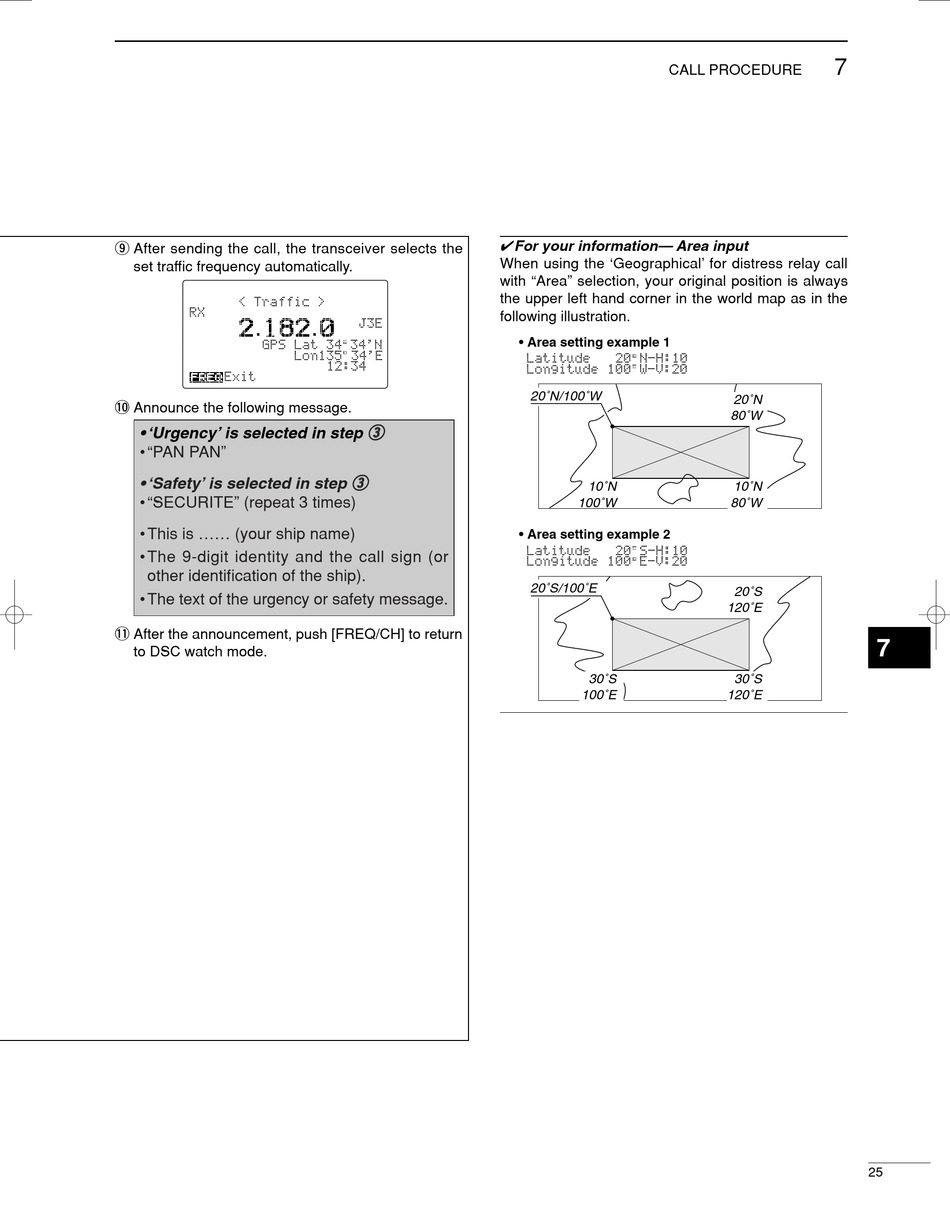

Icom IC-M801E Instruction Manual page 33

o After sending the call, the transceiver selects the
set traffic frequency automatically.
!0 Announce the following message.
• 'Urgency' is selected in step
• "PAN PAN"
• 'Safety' is selected in step e e
• "SECURITE" (repeat 3 times)
• This is ...... (your ship name)
• The 9-digit identity and the call sign (or
other identification of the ship).
• The text of the urgency or safety message.
!1 After the announcement, push [FREQ/CH] to return
to DSC watch mode.
✔ For your information— Area input
When using the 'Geographical' for distress relay call
with "Area" selection, your original position is always
the upper left hand corner in the world map as in the
following illustration.
• Area setting example 1
20˚N/100˚W
e e
• Area setting example 2
20˚S/100˚E
CALL PROCEDURE
20˚N
80˚W
10˚N 10˚N
100˚W 80˚W
20˚S
120˚E
30˚S 30˚S
100˚E 120˚E
7
7
25
