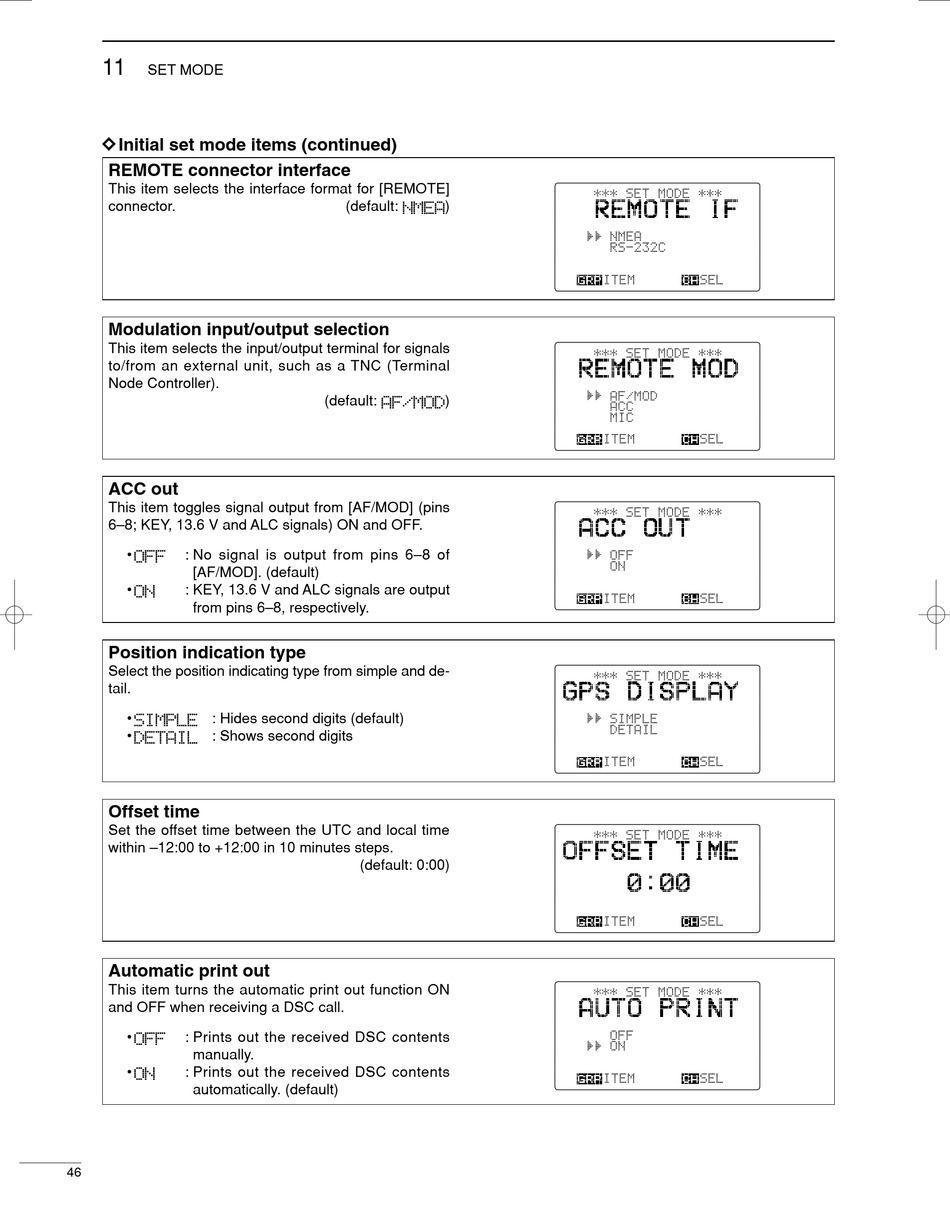

11
SET MODE
D D Initial set mode items (continued)
REMOTE connector interface
This item selects the interface format for [REMOTE]
connector.
Modulation input/output selection
This item selects the input/output terminal for signals
to/from an external unit, such as a TNC (Terminal
Node Controller).
ACC out
This item toggles signal output from [AF/MOD] (pins
6–8; KEY, 13.6 V and ALC signals) ON and OFF.
•
: No signal is output from pins 6–8 of
[AF/MOD]. (default)
•
: KEY, 13.6 V and ALC signals are output
from pins 6–8, respectively.
Position indication type
Select the position indicating type from simple and de-
tail.
•
: Hides second digits (default)
•
: Shows second digits
Offset time
Set the offset time between the UTC and local time
within –12:00 to +12:00 in 10 minutes steps.
Automatic print out
This item turns the automatic print out function ON
and OFF when receiving a DSC call.
•
: Prints out the received DSC contents
manually.
•
: Prints out the received DSC contents
automatically. (default)
46
(default:
)
(default:
)
(default: 0:00)
ÇÇ
ÇÇ
ÇÇ
ÇÇ
ÇÇ
