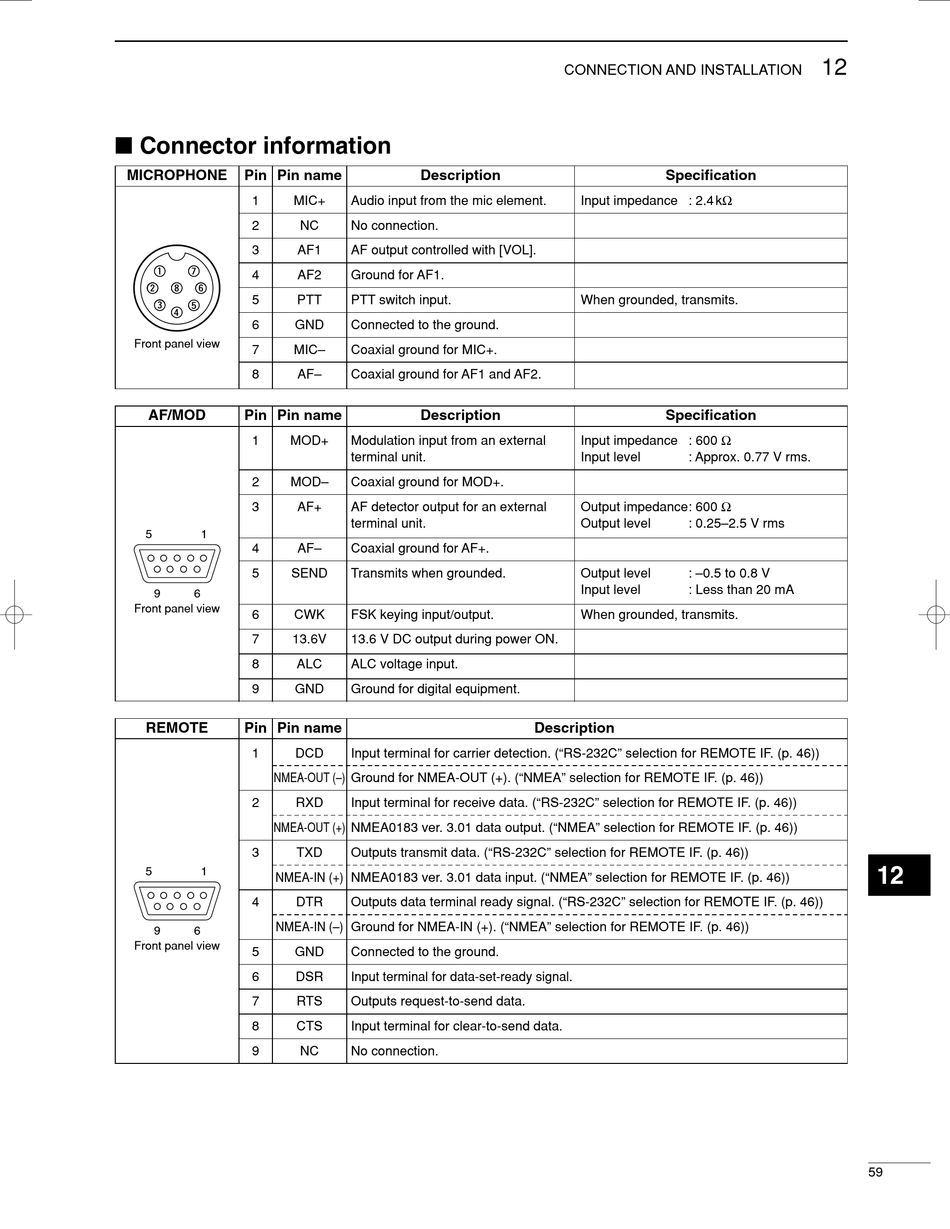

I Connector information

MICROPHONE Pin Pin name
1
2
3
q u
4
w i y
5
e
t
r
6
Front panel view
7
8
AF/MOD Pin Pin name
1
2
3
5 1
4
5
9 6
Front panel view
6
7
8
9
REMOTE Pin Pin name
1
NMEA-OUT (–) Ground for NMEA-OUT (+). ("NMEA" selection for REMOTE IF. (p. 46))
2
NMEA-OUT (+) NMEA0183 ver. 3.01 data output. ("NMEA" selection for REMOTE IF. (p. 46))
3
5 1
NMEA-IN (+) NMEA0183 ver. 3.01 data input. ("NMEA" selection for REMOTE IF. (p. 46))
4
NMEA-IN (–) Ground for NMEA-IN (+). ("NMEA" selection for REMOTE IF. (p. 46))
9 6
Front panel view
5
6
7
8
9
Description
MIC+ Audio input from the mic element.
NC No connection.
AF1 AF output controlled with [VOL].
AF2 Ground for AF1.
PTT PTT switch input.
GND Connected to the ground.
MIC– Coaxial ground for MIC+.
AF– Coaxial ground for AF1 and AF2.
Description
MOD+ Modulation input from an external
terminal unit.
MOD– Coaxial ground for MOD+.
AF+ AF detector output for an external
terminal unit.
AF– Coaxial ground for AF+.
SEND Transmits when grounded.
CWK FSK keying input/output.
13.6V 13.6 V DC output during power ON.
ALC ALC voltage input.
GND Ground for digital equipment.
DCD Input terminal for carrier detection. ("RS-232C" selection for REMOTE IF. (p. 46))
RXD Input terminal for receive data. ("RS-232C" selection for REMOTE IF. (p. 46))
TXD Outputs transmit data. ("RS-232C" selection for REMOTE IF. (p. 46))
DTR Outputs data terminal ready signal. ("RS-232C" selection for REMOTE IF. (p. 46))
GND Connected to the ground.
DSR Input terminal for data-set-ready signal.
RTS Outputs request-to-send data.
CTS Input terminal for clear-to-send data.
NC No connection.
CONNECTION AND INSTALLATION
Specification
Input impedance : 2.4 kΩ
When grounded, transmits.
Specification
Input impedance : 600 Ω
Input level : Approx. 0.77 V rms.
Output impedance: 600 Ω
Output level : 0.25–2.5 V rms
Output level : –0.5 to 0.8 V
Input level : Less than 20 mA
When grounded, transmits.
Description
