Hex Head Bolts (M6×50); Hex Head Bolts (M6×15) - Icom IC-M801E Instruction Manual

12

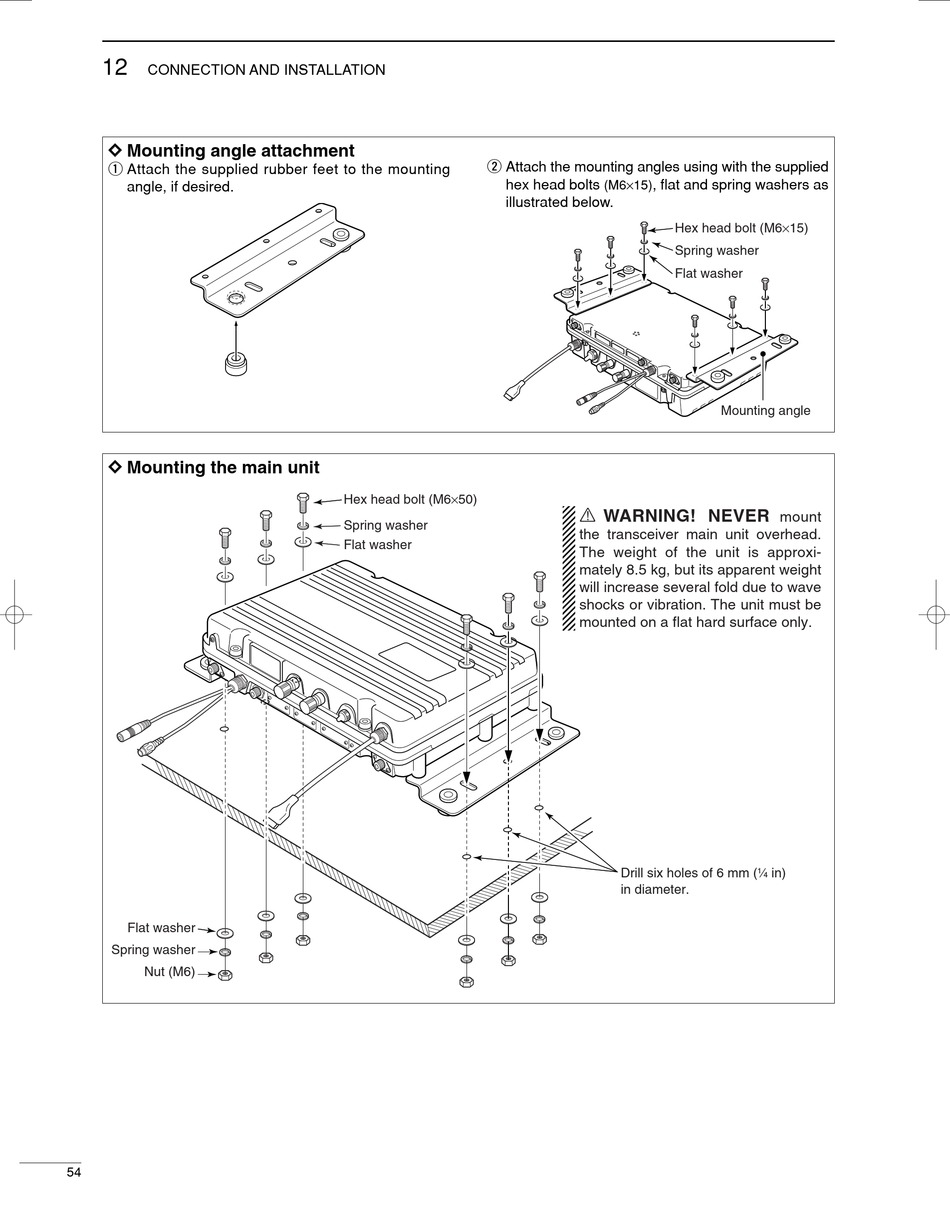

CONNECTION AND INSTALLATION
D D Mounting angle attachment
q Attach the supplied rubber feet to the mounting
angle, if desired.
D D Mounting the main unit
Flat washer
Spring washer
Nut (M6)
54
w Attach the mounting angles using with the supplied
hex head bolts
illustrated below.
Hex head bolt (M6×50)
Spring washer
Flat washer
, flat and spring washers as
(M6×15)
Hex head bolt (M6×15)
Spring washer
Flat washer
Mounting angle
R WARNING! NEVER
the transceiver main unit overhead.
The weight of the unit is approxi-
mately 8.5 kg, but its apparent weight
will increase several fold due to wave
shocks or vibration. The unit must be
mounted on a flat hard surface only.
Drill six holes of 6 mm (
in diameter.
mount
1 ⁄ in)
4
