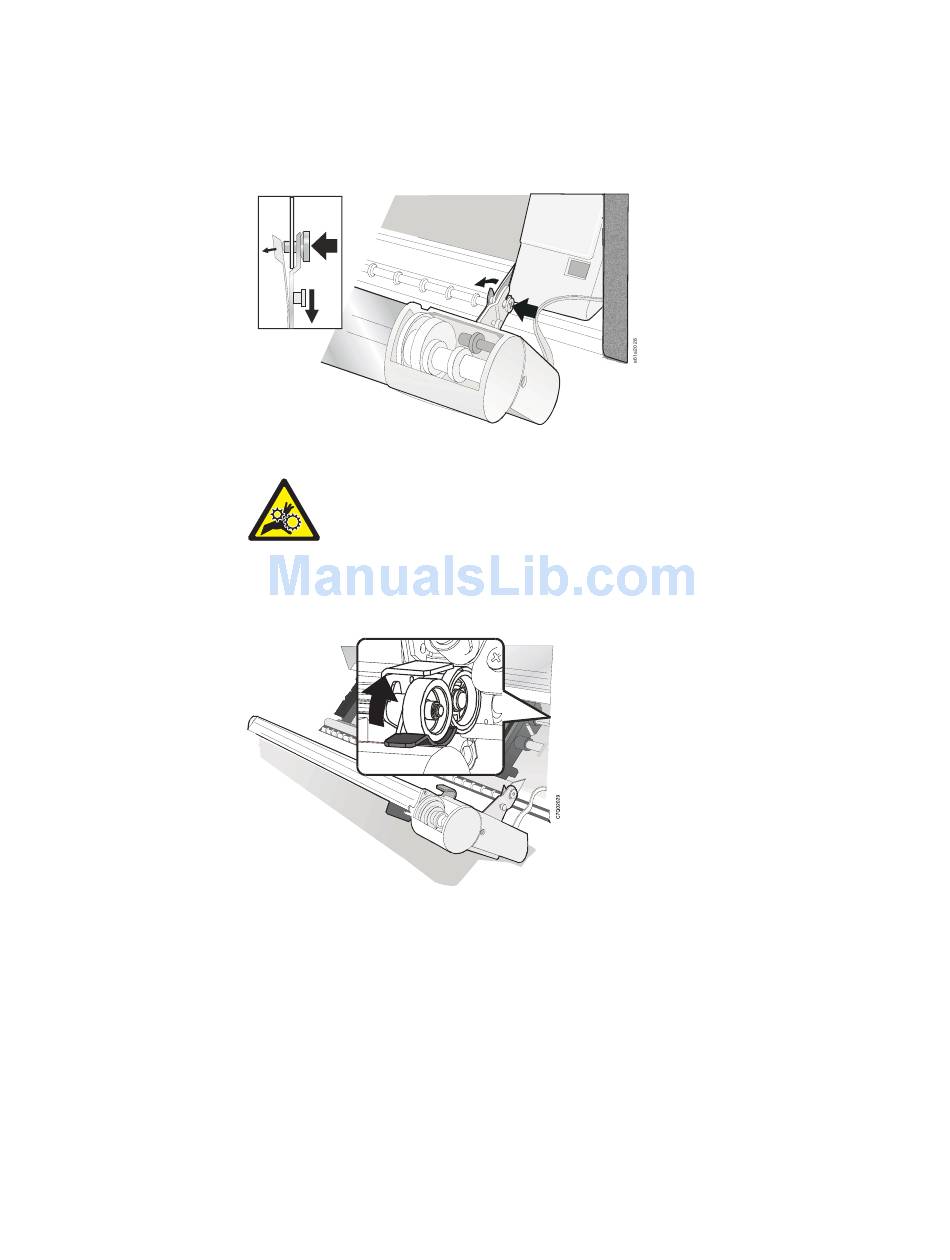

Removing the optional second tractor
If you need to remove the second optional push tractor, turn the printer off.
1. Disconnect the connector cable and press on the push buttons on either side to
disengage the tractor. Then pull the tractor off.
CAUTION:
<2-53> If the second tractor unit is not installed, make sure the gear protector
cover is closed. Do not touch inside the printer or insert any object into the
gears.
2. Close the tractor gear protection cover.
27
Setting up your printer
