2. Use the screwdriver that came in the Controller Board box to remove the metal
3. Use the information under "Handling the Controller Board" on page 11 as you
4. Align the left and right sides of the Controller Board with the guides in the
5. Gently push the Controller Board into the printer until it is seated in the
12
Quick Setup Guide

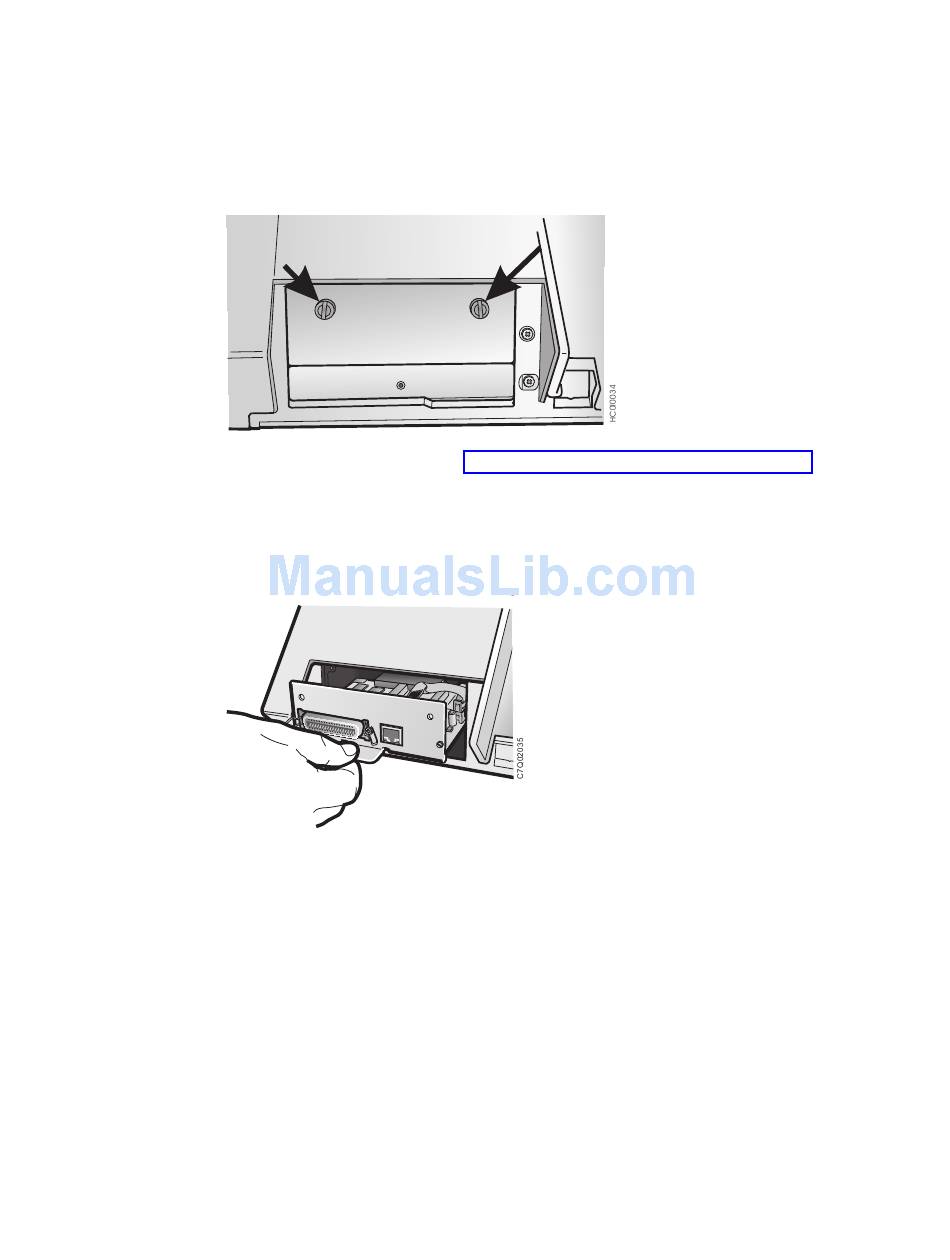

plate on the back of the printer by unscrewing the two screws.
Note: Save the two screws as you need them to attach the Controller Board to
the back printer. Save the metal plate for reuse if the Controller Board is
removed.
remove the Controller Board from its shipping box and from the protective
package.
printer and slide it into the slot.
connector inside the printer. The Controller Board is correctly seated in the
printer when the Controller Board metal plate is aligned with the back profile
of the slot.
