Step 5. Installing Modules into Expansion Bays (4100U),
Placement
Guidelines
(continued)
As shown in the figure below, motherboards can be installed alongside
4"x 5" cards, if necessary.
Slot 1
Slot 2
PDI
No Boards
Allowed
in
This Slot
This slot cannot contain a motherboard unless the pins
on P1 (or leftmost pin connector) are removed.
(Note. Australian SPS is 4 slots wide. XPS is not available in Australia.)

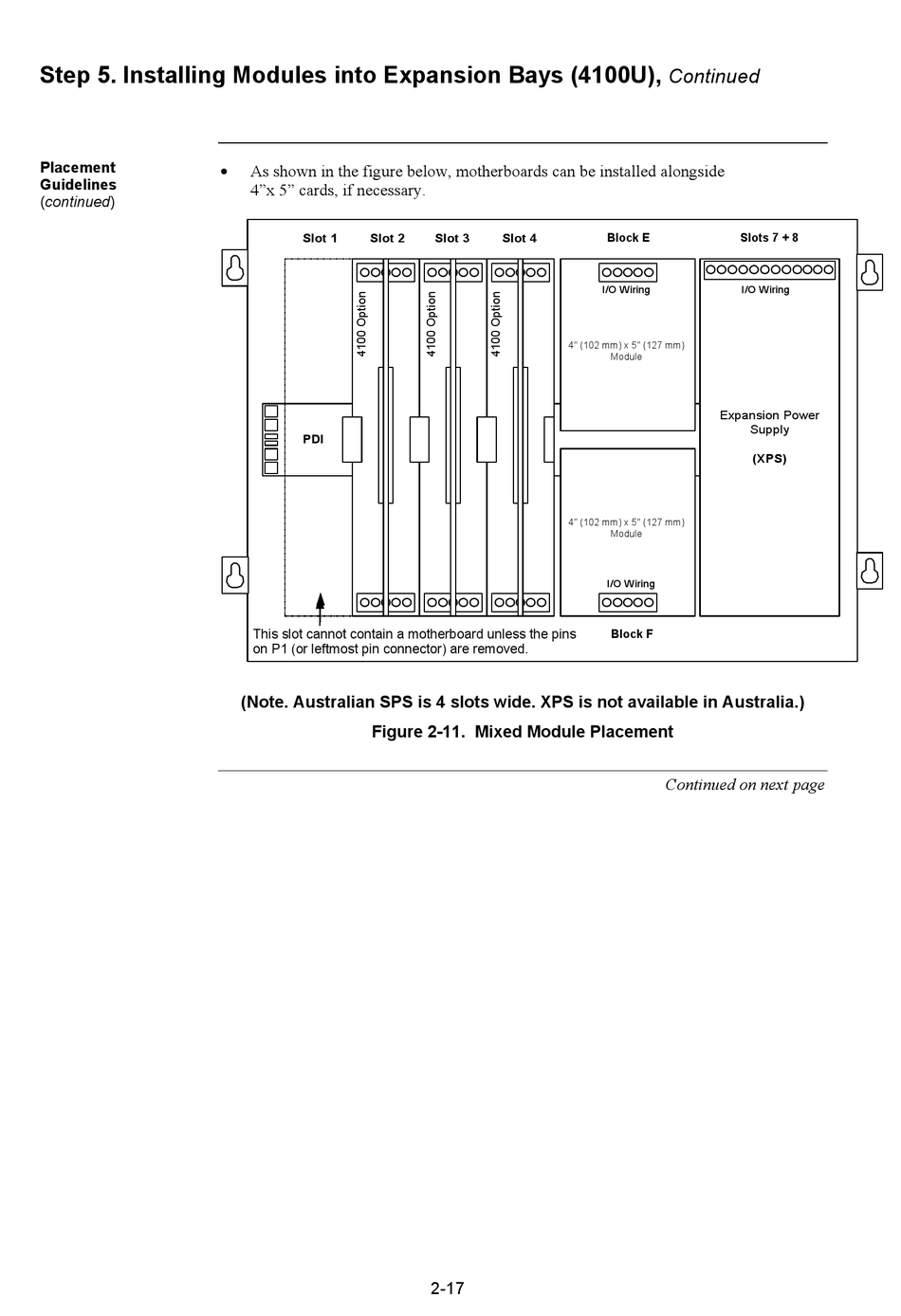

Figure 2-11. Mixed Module Placement

Position
Slot 3
Slot 4
4" (102 mm) x 5" (127 mm)
4" (102 mm) x 5" (127 mm)
2-17
Continued
Position
Block E
Slots 7 + 8
5
7 & 8
I/O Wiring
I/O Wiring
Module
Expansion Power
Supply
(XPS)
Module
I/O Wiring
Position
Block F
6
Continued on next page
