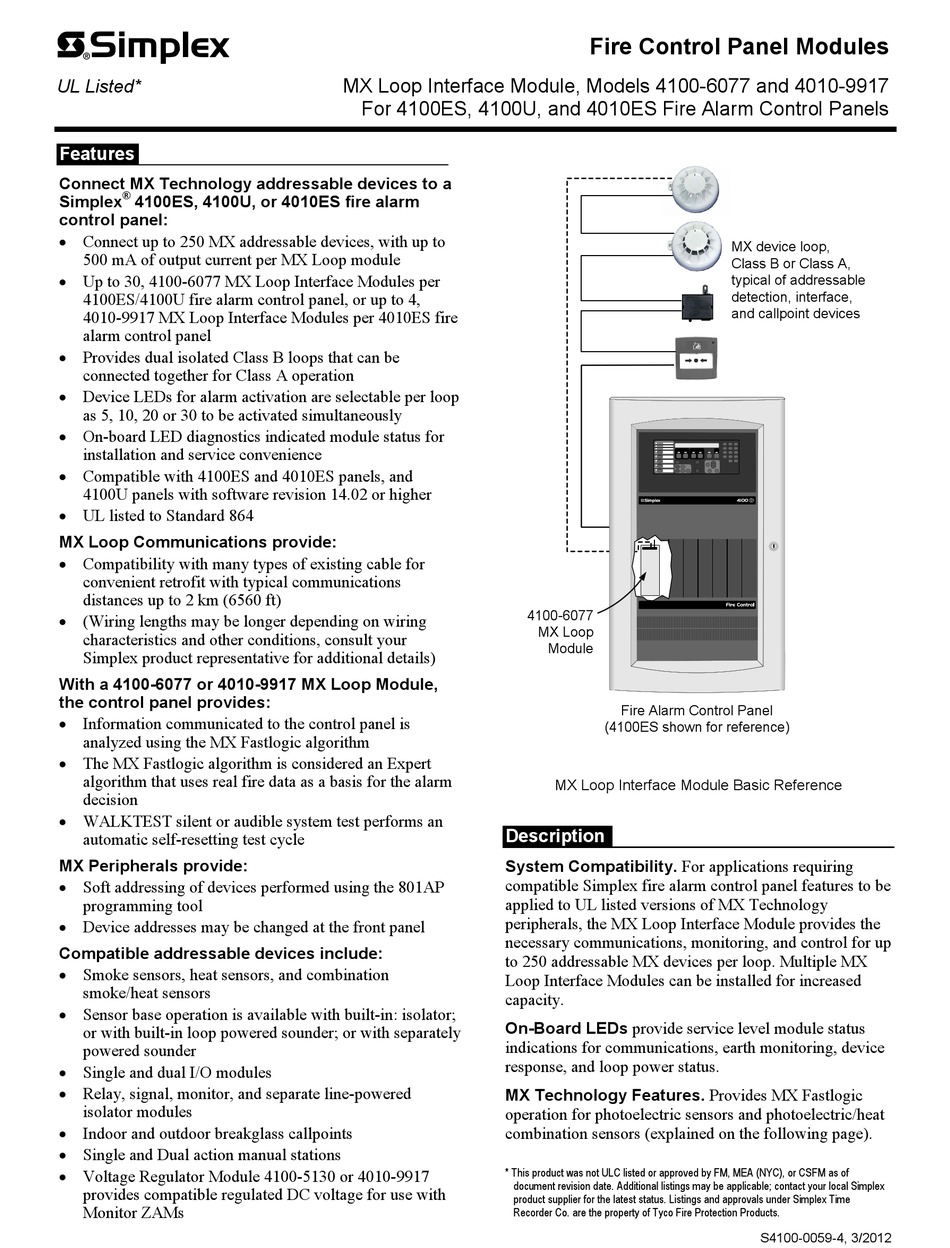

Simplex 4100-6077 Quick Start Manual

UL Listed*
Features
Connect MX Technology addressable devices to a
®
Simplex 4100ES, 4100U, or 4010ES fire alarm
control panel:
 Connect up to 250 MX addressable devices, with up to
500 mA of output current per MX Loop module
 Up to 30, 4100-6077 MX Loop Interface Modules per
4100ES/4100U fire alarm control panel, or up to 4,
4010-9917 MX Loop Interface Modules per 4010ES fire
alarm control panel
 Provides dual isolated Class B loops that can be
connected together for Class A operation
 Device LEDs for alarm activation are selectable per loop
as 5, 10, 20 or 30 to be activated simultaneously
 On-board LED diagnostics indicated module status for
installation and service convenience
 Compatible with 4100ES and 4010ES panels, and
4100U panels with software revision 14.02 or higher
 UL listed to Standard 864
MX Loop Communications provide:
 Compatibility with many types of existing cable for
convenient retrofit with typical communications
distances up to 2 km (6560 ft)
 (Wiring lengths may be longer depending on wiring
characteristics and other conditions, consult your
Simplex product representative for additional details)
With a 4100-6077 or 4010-9917 MX Loop Module,
the control panel provides:
 Information communicated to the control panel is
analyzed using the MX Fastlogic algorithm
 The MX Fastlogic algorithm is considered an Expert
algorithm that uses real fire data as a basis for the alarm
decision
 WALKTEST silent or audible system test performs an
automatic self-resetting test cycle
MX Peripherals provide:
 Soft addressing of devices performed using the 801AP
programming tool
 Device addresses may be changed at the front panel
Compatible addressable devices include:
 Smoke sensors, heat sensors, and combination
smoke/heat sensors
 Sensor base operation is available with built-in: isolator;
or with built-in loop powered sounder; or with separately
powered sounder
 Single and dual I/O modules
 Relay, signal, monitor, and separate line-powered
isolator modules
 Indoor and outdoor breakglass callpoints
 Single and Dual action manual stations
 Voltage Regulator Module 4100-5130 or 4010-9917
provides compatible regulated DC voltage for use with
Monitor ZAMs
MX Loop Interface Module, Models 4100-6077 and 4010-9917
For 4100ES, 4100U, and 4010ES Fire Alarm Control Panels
Description
System Compatibility. For applications requiring
compatible Simplex fire alarm control panel features to be
applied to UL listed versions of MX Technology
peripherals, the MX Loop Interface Module provides the
necessary communications, monitoring, and control for up
to 250 addressable MX devices per loop. Multiple MX
Loop Interface Modules can be installed for increased
capacity.
On-Board LEDs provide service level module status
indications for communications, earth monitoring, device
response, and loop power status.
MX Technology Features. Provides MX Fastlogic
operation for photoelectric sensors and photoelectric/heat
combination sensors (explained on the following page).
* This product was not ULC listed or approved by FM, MEA (NYC), or CSFM as of
document revision date. Additional listings may be applicable; contact your local Simplex
product supplier for the latest status. Listings and approvals under Simplex Time
Recorder Co. are the property of Tyco Fire Protection Products.
Fire Control Panel Modules
4100-6077
MX Loop
Module

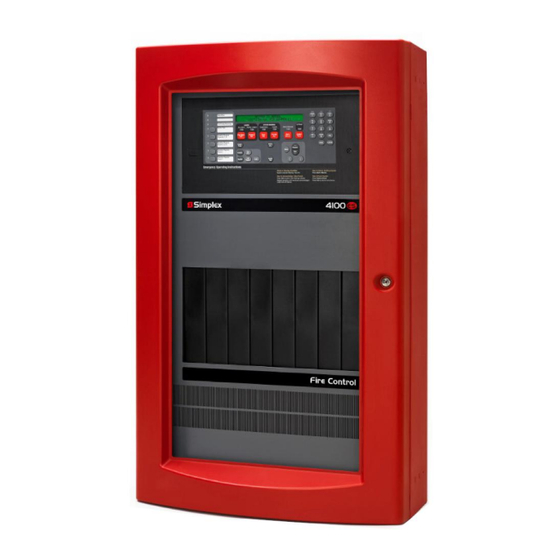

Fire Alarm Control Panel
(4100ES shown for reference)

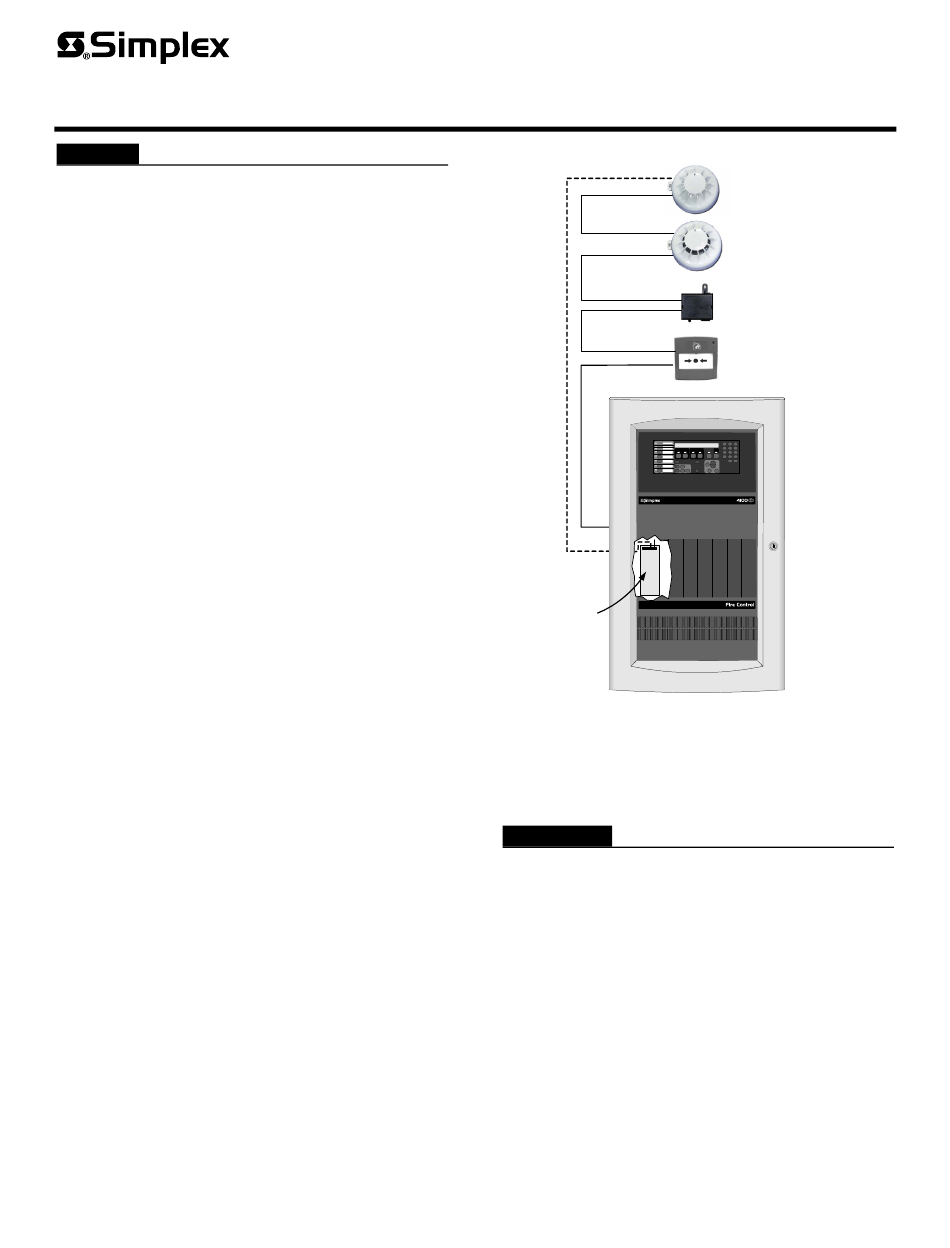

MX Loop Interface Module Basic Reference
MX device loop,
Class B or Class A,
typical of addressable
detection, interface,
and callpoint devices
S4100-0059-4, 3/2012
