Barco CORONIS 1MP System Manual

Hide thumbs Also See for CORONIS 1MP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installer and User Manual
B4100255 / 05
April 2003
© 2003 BARCO NV. All rights reserved
BarcoView
®
CORONIS
Theodoor Sevenslaan 106
8500 Kortrijk, Belgium
1MP
Phone: +32(0)56 23 32 44
Fax: +32(0)56 23 33 74
E-mail: sales.medical@barco.com
http://www.barcoview.com
System Manual
BarcoView Inc
3059 Premiere Parkway
Duluth, Georgia, 30097,USA
Phone: +1 678 475 8000
Fax: +1 678 475 8100
E-mail: sales.medical@barco.com
http://www.barcoview.com
BarcoView LTD
16F-1, Cheng Loong Plaza 33, Min Sheng Road
Section 1, Pan Chiao, Taipei Hsien, Taiwan, R.O.C.
Phone: +886 2 2957 8357
Fax: +886 2 2957 4080

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CORONIS 1MP and is the answer not in the manual?

Questions and answers

Related Manuals for Barco CORONIS 1MP

Summary of Contents for Barco CORONIS 1MP

  • Page 1 B4100255 / 05 April 2003 © 2003 BARCO NV. All rights reserved BarcoView ® CORONIS Theodoor Sevenslaan 106 8500 Kortrijk, Belgium Phone: +32(0)56 23 32 44 Fax: +32(0)56 23 33 74 E-mail: sales.medical@barco.com http://www.barcoview.com System Manual BarcoView Inc 3059 Premiere Parkway...

  • Page 2: Table Of Contents

    Running Multiple BarcoMed 3MP2FH, 2MP2FH or 1MP2FH Display Controllers in a Single Host ..............20 Display installation ..................21 Safety instructions ..................... 23 Overview ......................24 Introduction ....................24 Package contents ..................25 Controls and connectors ................26 Front ......................26 System manual Coronis 1MP...
  • Page 3 Software ....................58 BarcoMed Software Installation Wizard ........... 59 Software Installation ..................60 Installing the BarcoMed 3MP2FH, 2MP2FH or 1MP2FH Windows NT 4.0 Software ....................... 60 Using the BarcoMed Product Installation Wizard ........60 Driver Installation ..................62 System manual Coronis 1MP...
  • Page 4 BARCO DPMS Screen Saver Installation ..........66 CORONIS Rotation Service Installation ........... 69 Reinstalling the BarcoMed Driver ............73 Setting the Resolution of Your CORONIS Display Panel ......73 Installing the BarcoMed 3MP2FH, 2MP2FH or 1MP2FH Windows 2000 Software ....................... 76 Using the BarcoMed Product Installation Wizard ........
  • Page 5 Amount of Time in each DPMS State ............. 140 Monitor Settings ..................141 Use As Logon Screen Saver ..............141 Getting started with the BARCO DPMS Screen Saver ......141 Using the BARCO DPMS Screen Saver ........... 142 Installing or Reinstalling BARCO DPMS ............. 147 Uninstalling BARCO DPMS ................

  • Page 6: Introduction

    INTRODUCTION System manual Coronis 1MP...
  • Page 7 Introduction (This page intentionally left blank.) System manual Coronis 1MP...

  • Page 8: Introduction

    BARCO Coronis ® is a total display solution for medical applications. Coronis 1MP can be a single-head or dual-head system. Coronis comes with everything you need to set-up a complete viewing system, from cables to displays. Contents of the package Please refer to the packing list on the outside of the Coronis box.

  • Page 9: Coronis Installation Overview

    To install the Coronis system completely, you have to follow these steps: 1 Install the imaging board(s) in the PC 2 Install and connect the displays to the PC 3 Install the Coronis driver software 4 Install the MediCal software 5 Use MediCal System manual Coronis 1MP...

  • Page 10: Imaging Board Installation

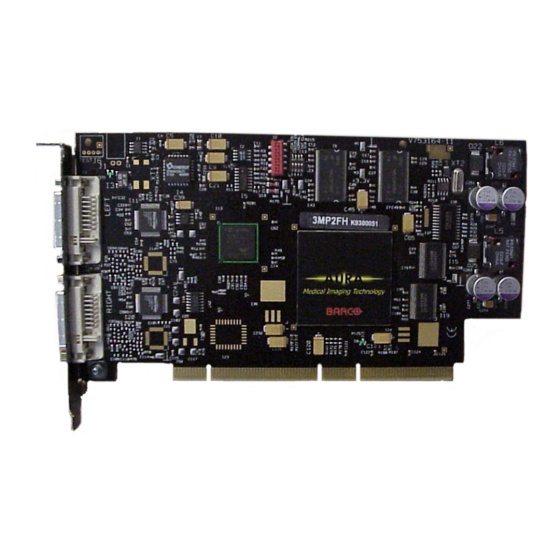

    IMAGING BOARD INSTALLATION System manual Coronis 1MP...
  • Page 11 Imaging board installation (This page intentionally left blank.) System manual Coronis 1MP...

  • Page 12: 1Mp2Fh Product Overview

    1024 x 1280 @ 60 HZ (primary) • 1280 x 1024 @ 60 Hz The following resolution is also available when the OS is booted in VGA mode. • 640x480 @ Default Refresh Rate, 16 colors System manual Coronis 1MP...

  • Page 13: System Configuration Guidelines

    Because of the low power consumption and low heat generation of the 1MP2FH, multiple controllers may be installed in adjacent PCI slots or adjacent to other PCI boards. Additionally there should be no need to modify either the PC’s power supply and/or cooling system. System manual Coronis 1MP...

  • Page 14: Planning Your 3Mp2Fh, 2Mp2Fh Or 1Mp2Fh Installation

    To install the BarcoMed Display Controller(s) in your system, you have to follow these steps: 1 Install the imaging board(s) in the PC 2 Install and connect the displays to the imaging board(s) 3 Install the BarcoMed driver software System manual Coronis 1MP...
  • Page 15 Imaging board installation (This page intentionally left blank.) System manual Coronis 1MP...

  • Page 16: Hardware Installation

    Figure 1: The 3MP2FH, 2MP2FH or 1MP2FH Switch Locations There are four switches located at S1 on the 3MP2FH, 2MP2FH or 1MP2FH. The following table shows their locations and briefly describes their functions and default states. System manual Coronis 1MP...

  • Page 17: Using The Vga Capabilities Of The Barcomed 3Mp2Fh, 2Mp2Fh Or 1Mp2Fh

    32 bit or 64 bit slot with no loss of functionality. Figure 2 illustrates the types of slots so that you can correctly identify which one to use for the 3MP2FH, 2MP2FH or 1MP2FH. System manual Coronis 1MP...

  • Page 18: Installing The Barcomed 3Mp2Fh, 2Mp2Fh Or 1Mp2Fh Display Controller

    3MP2FH, 2MP2FH or 1MP2FH (the output farthest from the motherboard – “VID 1” in figure 3) using the provided DVI cable. For a dual-headed 3MP2FH, 2MP2FH or System manual Coronis 1MP...

  • Page 19: Running Multiple Barcomed 3Mp2Fh, 2Mp2Fh Or 1Mp2Fh Display Controllers In A Single Host

    This is due to the PC’s PCI bus control in the system BIOS, and not the BarcoMed display controller. It may become necessary, depending on how your PC’s BIOS configures the PCI bus, to switch your DVI display connections to achieve a linear desktop configuration. Figure 3: The Video Outputs. System manual Coronis 1MP...

  • Page 20: Display Installation

    DISPLAY INSTALLATION System manual Coronis 1MP...
  • Page 21 Display installation (This page intentionally left blank.) System manual Coronis 1MP...

  • Page 22: Safety Instructions

    The 12 VDC power supply must be powered child or adult, and serious damage to the by the AC mains voltage. equipment. More warnings in the Installation chapter. System manual Coronis 1MP...

  • Page 23: Overview

    Display installation OVERVIEW Introduction The MFGD 1318, BARCO’s 18” 1 megapixel grayscale LCD display, guarantees perfect image quality in medical imaging applications. The display combines a TFT (thin film transistor) liquid crystal display panel structure and a built-in backlight with inverter for a better picture quality.

  • Page 24: Package Contents

    The recommended refresh rate is 60 Hz. Would you have trouble selecting a proper display setting in Windows, please refer to the Troubleshooting section further. BARCO’s BarcoMed 1MP2FH imaging board is the best choice to drive the MFGD 1318 display. Power saving (DPMS) The MFGD 1318 is equipped with a power saving system.

  • Page 25: Controls And Connectors

    The LED is orange when the display is in Stand-by power-saving mode. Side (3) USB downstream connector (4) Control wheel for navigating through the on-screen display (OSD) menus and changing values in the menus System manual Coronis 1MP...

  • Page 26: Rear

    Digital DVI (video and data) input D15 (VGA) video connector Vertical sync input Composite / Horizontal sync input Composite video input (10) USB downstream connector (11) USB upstream connector (12) DC 12V power input D 15 C S/HS VIDEO System manual Coronis 1MP...

  • Page 27: Installation

    3 Pull the lower side of the cover towards you and simultaneously slide the cover downward. 4 Pull the red strap out of the fixation holes in the foot. You can better leave the cover off the foot while connecting the signal cables to the display. System manual Coronis 1MP...

  • Page 28: Portrait Or Landscape Position

    2 Connect the other end of the DVI cable to the video output of your DVI signal source. 3 Route the cable so that it enters the connector compartment at the place where the cover is bulged. System manual Coronis 1MP...
  • Page 29 1 Connect the output of the 12V DC power supply to the DC input (12) of the display. 2 Connect one end of the proper power cable to the AC input of the 12V DC power supply. System manual Coronis 1MP...

  • Page 30: Routing The Signal Cables

    3 Press the cover to the foot so that both clips make a clicking sound. Connector compartment Push the upper side of the Signal cables routed under foot cover cover onto the foot and bound by velcro strips System manual Coronis 1MP...

  • Page 31: Using The Usb Hub

    The display foot allows adjusting the horizontal viewing angle, vertical viewing angle and panel height. Starting up Proceed as follows: 1 Switch on the signal source (E.g., PC). 2 If necessary, select a suitable resolution or signal format for the signal source. System manual Coronis 1MP...

  • Page 32: Operation

    To display the on-screen menus, turn the wheel (4). The Main Menu appears. This is the top level of the menu system. MFGD 1318 MAIN MENU Autoset* Video Contrast* Video Brightness* Luminance Adjustments Input Selection Auto Settings Scan Mode Information * Not in DVI mode EXIT System manual Coronis 1MP...

  • Page 33: Saving Changes

    When you make adjustments and save the changes, the current scan mode is saved as programmable scan mode. If this happens while all programmable scan modes are occupied, the oldest programmable scan mode is overwritten automatically. System manual Coronis 1MP...

  • Page 34: Using The Autoset* Functions

    1 In the main menu, turn the control wheel to select the Autoset menu. MFGD 1318 MAIN MENU Autoset* Video Contrast* Video Brightness* Luminance Adjustments Input Selection Auto Settings Scan Mode Information * Not in DVI mode EXIT System manual Coronis 1MP...

  • Page 35: Controlling Video Contrast* And Video Brightness

    1 In the main menu, turn the control wheel to select the Video Contrast or Video Brightness menu. 2 Click the control wheel to enter the Video Contrast or Video Brightness menu. You can change the current setting manually or select the calibrated position. System manual Coronis 1MP...
  • Page 36 Setting the Luminance value With this function, the backlight value is stabilized by the I-Guard sensor. The value you enter is the target backlight luminance, ex- pressed in Cd/m². System manual Coronis 1MP...

  • Page 37: Setting The Luminance Value

    MFGD 1318 MAIN MENU Autoset Video Contrast* Video Brightness* Luminance Adjustments Input Selection Auto Settings Scan Mode Information EXIT 2 Click the control wheel. The Adjustments menu appears. ADJUSTMENTS Geometry Phase* EXIT * Not in DVI mode System manual Coronis 1MP...
  • Page 38 - Portrait: The image is reproduced in portrait orientation. - Landscape: The image is reproduced in landscape orientation. * Not in DVI mode ** Available only if the Portrait Accelerator option is installed System manual Coronis 1MP...

  • Page 39: Selecting Inputs

    1 In the main menu, turn the control wheel to select the Input Selection menu. MFGD 1318 MAIN MENU Autoset Video Contrast* Video Brightness* Luminance Adjustments Input Selection Auto Scan Mode Settings Information EXIT * Not in DVI mode System manual Coronis 1MP...

  • Page 40: Settings

    1 In the main menu, turn the control wheel to select the Settings menu. MFGD 1318 MAIN MENU Autoset Video Contrast* Video Brightness* Luminance Adjustments Input Selection Auto Settings Scan Mode Information EXIT * Not in DVI mode 2 Click the control wheel. The Settings menu appears. System manual Coronis 1MP...

  • Page 41: Scan Mode

    When switched on, the OSD menus automatically close when left idle for some time. Scan Mode To enter the Scan Mode menu: 1 In the main menu, turn the control wheel to select the Scan Mode menu. System manual Coronis 1MP...

  • Page 42: 3.10 Getting Information

    3.10 Getting information The Information menu allows you to get information about the display and the connected signals. To enter the Information menu: 1 In the main menu, turn the control wheel to select the Information menu. System manual Coronis 1MP...
  • Page 43 Scan Name ..... The name of the current memory scan mode Hor Frequency ..The currently measured horizontal sync fre- quency Vert Frequency ..The currently measured vertical sync frequency Resolution ....Displays the actual video signal resolution System manual Coronis 1MP...

  • Page 44: Advanced Functions

    Important The functions described in this chapter are intended for trained service staff only! Improper use of these functions may disorder the display. BARCO cannot be held responsible for the results or damage caused by improper use of these functions.

  • Page 45: Advanced Functions In The Adjustments Menu

    Next, execute this function. - Max Luminance: Adjust this value until the luminance is at the level you wish to work with when the ambient light is at the maximum level you have set in the above function. System manual Coronis 1MP...

  • Page 46: Advanced Functions In The Settings Menu

    The following input mode settings can be selected: Standard input mode RGB->Y ....The RGB video signals from the imaging board are calculated and transformed into a single luminance value according to the formula 0.3R + 0.59G + 0.11B. This single luminance System manual Coronis 1MP...
  • Page 47 0.3G + 0.59B + 0.11R. This single luminance signal drives the RGB sub-pixels of the panel equally. BRG->Y ....The RGB video signals from the imaging board are calculated and transformed into a single System manual Coronis 1MP...

  • Page 48: Advanced Functions In The Scan Mode Menu

    Display Ser No ..Indicates the display serial number Display Stock No ..Indicates the display order number Panel ....... Indicates the flat panel serial number Panel Prod Date ..Indicates the flat panel production date System manual Coronis 1MP...
  • Page 49 (so, the total backlight lifetime) Backlight Runtime ... Indicates the time the backlight has been on since the last time it was switched off (e.g., in stand-by). This counter stops after 1092 minutes. System manual Coronis 1MP...

  • Page 50: Maintenance

    It may be possible that dust particles have entered the display and are stuck to the rear of the glass. We recommend to let this cleaning procedure be done in a BARCO service center. However, when really necessary, you can perform the cleaning on site if you can work in conditions that are as clean and dust-free as possible.

  • Page 51: Troubleshooting

    Permanently dark or bright pixels can happen to TFT displays. 10 or less permanently dead pixels do not make out a good case for ex- changing the unit. Please contact our Customer Service Department if the number of pixel faults exceeds the above-mentioned figure. System manual Coronis 1MP...

  • Page 52: Technical Specifications

    Amorphous silicon TFT • Backlight: 6 cold cathode fluorescent lamps Luminance • Calibrated: 500 cd/m2 (145.9 fL) Resolution • 1280 x 1024 (1.3 MegaPixel) INPUTS • Complies to DVI Rev. 1.0 spec up to UXGA 60 Hz System manual Coronis 1MP...

  • Page 53: Scanning System

    Vertical Frequency: 50 - 120 Hz • Max. sampling clock: 165 MHz (DVI), 170 MHZ (analog) • Interlaced / Non-interlaced signals • Multi-sync CONTROLS • On-Screen Display (OSD) • Rotary / push control wheel to navigate through the OSD • • System manual Coronis 1MP...

  • Page 54: Power Supply

    -20°C to 60°C Due to our policy of continuous product improvement, the above specifications are subjected to change without notice. Barco shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages whatsoever resulting from furnishing, performance or use of this material.

  • Page 55: Barcomed Software Driver Installation

    BARCOMED SOFTWARE DRIVER INSTALLATION System manual Coronis 1MP...
  • Page 56 BarcoMed software driver installation (This page intentionally left blank.) System manual Coronis 1MP...

  • Page 57: Software Installation

    BarcoMed Display Controller. The BARCO Display Tab is used for gathering information about the BarcoMed Flat Panel Display(s). The BARCO DPMS Screen Saver allows the user to set power and monitor saving features for medical monitors driven by BarcoMed Display Controller(s).

  • Page 58: Barcomed Software Installation Wizard

    BARCO DPMS Screen Saver from his system. The BarcoMed Display Controller Driver must be installed prior to installing either or both the BARCO DPMS Screen Saver or the CORONIS Rotation Service. System manual Coronis 1MP...

  • Page 59: Software Installation

    Using the BarcoMed Product Installation Wizard To install your BarcoMed 3MP2FH, 2MP2FH or 1MP2FH Windows Display Controller Driver, BARCO DPMS Screen Saver and CORONIS Rotation Service for the first time follow the steps below. If you are reinstalling the drivers or installing a new driver release over an existing driver release, skip step 1 below: 1.
  • Page 60 Wizard’s Welcome Screen to continue or “Cancel” to exit the wizard. If you click “Install” the wizard will begin installing the selected software. The wizard will install the software in the order listed on the Wizard’s Welcome Screen. System manual Coronis 1MP...

  • Page 61: Driver Installation

    If you select “Cancel”, a dialog box (figure 8) will open asking you to confirm cancellation of the install process. If you choose “No”, the Wizard will continue normally. If you choose “Yes”, the Wizard will exit and return you to the Barco Software Install System manual Coronis 1MP...
  • Page 62 Barco Software Install Wizard. If no additional pieces of software were selected, you may either click “Finish” to exit the Barco Software Install Wizard or “Back” to return to the Welcome Screen and select additional software to be installed and then click “Install”.
  • Page 63 “Cancel” and the Wizard will exit. Special Note: Once you click “Next”, you cannot cancel the driver installation. Figure 11 During the BarcoMed driver installation, the install progress window is displayed (figure 12 on the next page). System manual Coronis 1MP...
  • Page 64 “Finish” (see figure 13). Click “Finish” to finish installing the display drivers and return to the BarcoMed Product Install Wizard. Clicking “Cancel” will also return you to the BarcoMed Product Install Wizard, but will not delete the Barco Display Drivers. Figure 13...

  • Page 65: Barco Dpms Screen Saver Installation

    BARCO DPMS InstallShied Wizard. BARCO DPMS Screen Saver Installation 9. Click “Next” on the Welcome Screen of the BARCO DPMS InstallShied Wizard to begin the installation. Click “Cancel” to cancel the DPMS installation and return to the BarcoMed Product Install Wizard (figure 15 on the next page).
  • Page 66 Dutch or German names. Currently the default schemes are not supported in the Japanese, Korean and Chinese languages. We recommend that the users of these three languages install the English default schemes and then rename System manual Coronis 1MP...
  • Page 67 13. When the Windows Installer has finished installing DPMS, the “Installshield Wizard Completed” page will appear (see figure 19 on the next page), click “Finish” to exit the BARCO DPMS InstallShied Wizard and return to the BarcoMed Product Install Wizard Welcome Screen.

  • Page 68: Coronis Rotation Service Installation

    14. Click “Next” on the Welcome Screen of the CORONIS Rotation Service InstallShied Wizard to begin the installation. Click “Cancel” to cancel the CORONIS Rotation Service installation and return to the BarcoMed Product Install Wizard (see figure 20 on the next page). System manual Coronis 1MP...
  • Page 69 “browse” button on the Install Location Screen of the CORONIS Rotation Service InstallShield Wizard (figure 21). Click “Next” to continue the installation. Figure 21 16. Click “Next” on the “Setup has enough information” screen to continue (figure 22 on the next page). System manual Coronis 1MP...
  • Page 70 CORONIS Rotation Service InstallShield Wizard and to return to the BarcoMed Product Installation Wizard. Figure 23 Click “Finish” to exit the BarcoMed Product Installation Wizard or click “Back” if you wish to install additional BarcoMed software (figure 24 on the next page). System manual Coronis 1MP...
  • Page 71 19. When your computer restarts, select “NT Version 4.0 (VGA Mode)”. Log in using an account with administrator privileges and set the resolution of your CORONIS Display Panel(s). System manual Coronis 1MP...

  • Page 72: Reinstalling The Barcomed Driver

    “Using the BarcoMed Product Installation Wizard” with the following changes. 1. Skip Step 1. 2. In Step 4, clear the checkboxes next to the BARCO DPMS and the CORONIS Rotation Service. 3. When the driver has finished installing, click “Finish”. Then click “Quit”.
  • Page 73 3. Select a resolution from the list that is correct for the maximum number of display adapters installed even if you will later configure for less than the maximum number of displays supported by your configuration. (See table on following page for examples.) System manual Coronis 1MP...
  • Page 74 (NOT the VGA Mode option). Log in as usual. If you wish to change the number of CORONIS display panels you are using, this can be done using the “BarcoMed Driver Tab” of the Windows Display Control Panel. System manual Coronis 1MP...

  • Page 75: Installing The Barcomed 3Mp2Fh, 2Mp2Fh Or 1Mp2Fh Windows 2000 Software

    Windows 2000 installation process. To install your BarcoMed 3MP2FH. 2MP2FH or 1MP2FH Windows Display Controller Driver, BARCO DPMS Screen Saver and CORONIS Rotation Service for the first time follow the steps below. If you are reinstalling the drivers or installing a new driver release over an existing driver release skip to the step 5 on the next page: 1.
  • Page 76 Microsoft Installer. Figure 28 The BarcoMed Product Installation Wizard will advise you when it has successfully installed the new version of the Microsoft Installer. Click “OK” to continue. System manual Coronis 1MP...
  • Page 77 When you have selected the BarcoMed Software you wish to install click “Install” on the Wizard’s Welcome Screen to continue or “Cancel” to exit the wizard. If you click “Cancel” the wizard will exit. System manual Coronis 1MP...

  • Page 78: Driver Installation

    Screen. Figure 31 Driver Installation 7. Click “Next” on the Display Driver Wizard’s Welcome Screen (figure 32) to continue or “Cancel” to exit the Display Driver Wizard and return to the Software Install Wizard. Figure 32 System manual Coronis 1MP...
  • Page 79 Barco graphics device driver on your CORONIS Software CD (see figure 34 onthe next page). If there are no Barco devices installed or if the driver on your CORONIS Software CD does not support the installed devices, the dialog box will be empty, and program will exit when the user clicks “Finish”...
  • Page 80 DualView is a feature that is automatically supported by Windows XP. However, BARCO has provided a means for you to enable this functionality while running Windows 2000. Figures 36 and 37 on the next page shows the difference between running without and with DualView enabled under Windows 2000.
  • Page 81 BarcoMed software driver installation Figure 36: DualView Disabled Figure 37: DualView Enabled System manual Coronis 1MP...
  • Page 82 “Next” to continue. If you want to end the installation without installing the driver, click “Cancel” and the wizard will exit. Special Note: Once you click “Next”, you cannot cancel the driver installation. System manual Coronis 1MP...
  • Page 83 Wizard will warn you that while the driver is being installed your display may flicker. Click “OK” to continue (see figure 40). Figure 40 12. While the driver is being installed, the screen shown in figure 41 will be visible. System manual Coronis 1MP...
  • Page 84 Click “Finish” to finish installing the display drivers and return to the BarcoMed Product Install Wizard. Clicking “Cancel” will also return you to the BarcoMed Product Install Wizard, but will not delete the Barco Display Drivers. System manual Coronis 1MP...
  • Page 85 Screen, the wizard will automatically begin installing the next selected piece of BarcoMed Software. If you are working with the default selections, this will be the BARCO DPMS InstallShield Wizard, click “Cancel”. The wizard will ask you to confirm that you want to cancel the DPMS installation, click “Yes”...

  • Page 86: Barco Dpms Screen Saver Installation

    BarcoMed software driver installation Figure 44 BARCO DPMS Screen Saver Installation 15. Click “Next” on the Welcome Screen of the BARCO DPMS InstallShield Wizard to begin the installation. Click “Cancel” to cancel the DPMS installation and return to the BarcoMed Product Install Wizard (figure 45).
  • Page 87 Korean and Chinese languages. We recommend that the users of these three languages install the English default schemes and then rename and save them into their language in the DPMS configuration screen. Click “Next” to continue (see figure 47). Figure 47 System manual Coronis 1MP...
  • Page 88 19. When the Windows Installer has finished installing DPMS, the “InstallShield Wizard Completed” page will appear, click “Finish” to exit the BARCO DPMS InstallShield Wizard and return to the BarcoMed Product Install Wizard Welcome Screen (see figure 49). Figure 49...

  • Page 89: Coronis Rotation Service Installation

    C:\WINNT. If you wish to install the CORONIS Rotation Service in a different location use the “browse” button on the Install Location Screen of the CORONIS Rotation Service InstallShield Wizard (figure 51 on the next page). Click “Next” to continue the installation. System manual Coronis 1MP...
  • Page 90 “Finish” to complete the setup (figure 53 on the next page). Click “Finish” to exit the CORONIS Rotation Service InstallShield Wizard and to return to the BarcoMed Product Installation Wizard. System manual Coronis 1MP...
  • Page 91 Windows may now warn you that you must restart your computer before the new settings will take effect (figure 55 on the next page). Click “Yes” to restart your computer now. Click “No” if you wish to restart your computer later. System manual Coronis 1MP...
  • Page 92 BarcoMed software driver installation Figure 55 When your system restarts, boot normally and log in using an account with administrator privileges and set the resolution of your CORONIS displays. System manual Coronis 1MP...

  • Page 93: Setting The Resolution Of Your 3Mp2Fh, 2Mp2Fh Or 1Mp2Fh Coronis Display Panel With Dualview Disabled

    Display Controller, no 3 party VGA card configuration, your system may look different. 3. Select the “Adapter” tab and then click on the “List All Modes…” button. Select the desired resolution and refresh rate that your System manual Coronis 1MP...
  • Page 94 5. Click “Yes” when asked, “Your desktop has been reconfigured. Do you want to keep these settings?” Repeat steps 1 – 5 for each monitor/display panel on all the BarcoMed Display Controllers installed in your system. System manual Coronis 1MP...

  • Page 95: Setting The Resolution Of Your 3Mp2Fh, 2Mp2Fh Or 1Mp2Fh Coronis Display Panel With Dualview Enabled

    6. Click “OK” in the “Windows will now apply your new desktop settings” dialog box. Your high resolution display(s) should now synchronize and display the Windows desktop. 7. Click “Yes” when asked, “Your desktop has been reconfigured. Do you want to keep these settings?” System manual Coronis 1MP...
  • Page 96 DualView Enabled. Note: The system shown in figure 57 above is a dual-head, single BarcoMed 3MP2FH Display Controller, no 3 party VGA card configuration, your system may look different. System manual Coronis 1MP...

  • Page 97: Disabling Dualview Under Windows 2000

    “OK”. Your system will automatically shutdown and restart. Figure 58: BarcoMed Driver Tab – Disabling DualView 4. When your machine comes back up, you may need to re-set up your CORONIS displays with the desired display settings. System manual Coronis 1MP...

  • Page 98: Re-Enabling Dualview Under Windows 2000

    Your system will automatically shutdown and restart. Your system will automatically shutdown and restart. Figure 59: BarcoMed Driver Tab – Enabling DualView 4. When your machine comes back up, you may need to re-set up your CORONIS displays with the desired display settings. System manual Coronis 1MP...

  • Page 99: Installing The Barcomed 3Mp2Fh, 2Mp2Fh Or 1Mp2Fh Windows Xp Software

    Using the BarcoMed Product Installation Wizard To install your BarcoMed 3MP2FH. 2MP2FH or 1MP2FH Windows Display Controller Driver, BARCO DPMS Screen Saver and CORONIS Rotation Service for the first time follow the steps below. If you are reinstalling the drivers or installing a new driver release over an existing driver release skip to the step 7 on the next page: 1.
  • Page 100 “Install” on the Wizard’s Welcome Screen to continue or “Cancel” to exit the wizard. If you click “Cancel” the wizard will exit. If you click “Install” the wizard will begin installing the selected software in the order listed on the Wizard’s Welcome Screen. System manual Coronis 1MP...
  • Page 101 If you choose “No”, the Wizard will continue normally. If you choose “Yes”, the Wizard will exit and return you to the Barco Software Install Wizard. The wizard will then begin to install the next piece of software that was selected when you initially launched the Barco Software Install Wizard.
  • Page 102 Barco device driver on your BarcoMed Software CD (figure 64). If there are no Barco devices installed or if the driver on your BarcoMed Software CD does not support the installed devices, the dialog box will be empty, and program will exit and return to the BarcoMed Product Install Wizard when the user clicks “Finish”...
  • Page 103 DualView is a feature that is automatically supported by Windows XP. However, BARCO has provided a means for you to disable this functionality while running Windows XP. Figures 66 and 67 on the next page shows the difference between running without and with DualView enabled under Windows XP.
  • Page 104 BarcoMed Display Controller. If you wish to enable simply click “Next” to continue. If you do not wish to enable DualView “un-check” the checkbox next to “Enable the DualView device.”, and click “Next” to continue. System manual Coronis 1MP...
  • Page 105 Special Note: Once you click “Next”, you cannot cancel the driver installation. Figure 69 14. Prior to beginning the installation the BarcoMed Driver Install Wizard will warn you that while the driver is being installed your display may flicker (figure 70). Click “OK” to continue. System manual Coronis 1MP...
  • Page 106 While the driver is being installed the screen shown in figure 71 will be visible. Figure 71 15. During the driver installation Windows XP will warn you that the driver has not passed Windows XP Logo Testing (see figure 72 on the next page). System manual Coronis 1MP...
  • Page 107 “Finish” to finish installing the display drivers and return to the BarcoMed Product Install Wizard. Clicking “Cancel” will also return you to the BarcoMed Product Install Wizard, but will not delete the Barco Display Drivers. Figure 73 System manual Coronis 1MP...

  • Page 108: Barco Dpms Screen Saver Installation

    Figure 74 BARCO DPMS Screen Saver Installation 17. Click “Next” on the Welcome Screen of the BARCO DPMS InstallShield Wizard to begin the installation (see figure 75). Click “Cancel” to cancel the DPMS installation and return to the BarcoMed Product Install Wizard.
  • Page 109 Currently the default schemes are not supported in the Japanese, Korean and Chinese languages. We recommend that the users of these three languages install the English default schemes and then rename and save them into their language in System manual Coronis 1MP...
  • Page 110 21. When the Windows Installer has finished installing DPMS, the “InstallShield Wizard Completed” page will appear (see figure 79 on the next page). Click “Finish” to exit the BARCO DPMS InstallShield Wizard and return to the BarcoMed Product Install Wizard Welcome Screen.

  • Page 111: Coronis Rotation Service Installation

    22. Click “Next” on the Welcome Screen of the CORONIS Rotation Service InstallShield Wizard to continue the installation. Click “Cancel” to cancel the CORONIS Rotation Service installation and return to the BarcoMed Product Install Wizard (see figure 80 on the next page). System manual Coronis 1MP...
  • Page 112 “browse” button on the Install Location Screen of the CORONIS Rotation Service InstallShield Wizard (figure 81). Click “Next” to continue the installation. Figure 81 24. Click “Next” on the “Setup has enough information” screen to continue (figure 82 on the next page) . System manual Coronis 1MP...
  • Page 113 CORONIS Rotation Service InstallShield Wizard and to return to the BarcoMed Product Installation Wizard. Figure 83 Click “Finish” to exit the BarcoMed Product Installation Wizard (figure 84) or click “Back” if you wish to install additional BarcoMed software. System manual Coronis 1MP...
  • Page 114 Click “Yes” to restart your computer now. Click “No” if you wish to restart your computer later. Figure 85 When your system restarts, boot normally and log in using an account with administrator privileges and set the resolution of your CORONIS displays. System manual Coronis 1MP...

  • Page 115: Setting The Resolution Of Your Coronis Display Panel With Dualview Enabled

    Do not click the “Apply” button at this time. Now repeat step 4 – 6 above. Repeat steps 1 – 7 to set the resolution for the displays on all the BarcoMed Display Controller(s) installed in your system. System manual Coronis 1MP...

  • Page 116: Setting The Resolution Of Your Coronis Display Panel With Dualview Disabled

    If the BarcoMed Display Controller is not running VGA, the device may not be enabled yet. To enable the device check the “Extend my Windows desktop into this monitor” checkbox. Do not click the “Apply” button at this time. 2. Click on the “Advanced” Button. System manual Coronis 1MP...
  • Page 117 Figure 87: Windows XP Display Properties Settings Tab for the 3MP2FH with DualView disabled. Note: The system shown in figure 87 above is a dual-head, single BarcoMed 3MP2FH display controller, no 3 party VGA card configuration. Your system may look different. System manual Coronis 1MP...

  • Page 118: Disabling Dualview Under Windows Xp

    (see figure 88, below). Click “OK”, twice. Your system will automatically shutdown and restart. Figure 88: BarcoMed Driver Tab – Disabling DualView 4. When your machine comes back up, you will need to re-set up your CORONIS displays with the desired display settings. System manual Coronis 1MP...

  • Page 119: Re-Enabling Dualview Under Windows Xp

    (see figure 89 below). Click “OK”, twice. Your system will automatically shutdown and restart. Figure 89: BarcoMed Driver Tab – Enabling DualView 4. When your machine comes back up, you will need to re-set up your CORONIS displays with the desired display settings. System manual Coronis 1MP...
  • Page 120 BarcoMed software driver installation (This page intentionally left blank.) System manual Coronis 1MP...

  • Page 121: Barcomed Driver Tab

    Under Windows XP, click on “Settings” tab. Double click on the rectangle that represents the BarcoMed Display Controller to bring up its property page. Click on the “BarcoMed Driver” tab (see figure 93 on the next page). Figure 91: BarcoMed Driver Tab under Windows NT 4.0 System manual Coronis 1MP...
  • Page 122 BarcoMed software driver installation Figure 92: BarcoMed Driver Tab under Windows 2000 Figure 93: BarcoMed Driver Tab under Windows XP System manual Coronis 1MP...

  • Page 123: Status

    As shown in the next picture, the 20 standard system colors are converted from RGB to gray values. The rest of the 236 entries from System manual Coronis 1MP...

  • Page 124: Static Gray Palette With No System Colors

    The Enable Dithering check box will be grayed-out, and dithering will be automatically disabled regardless of whether this check box is checked. This complies with the Windows standard interface method. If you are unsure whether or not System manual Coronis 1MP...

  • Page 125: Drawing Modes

    For example, if the current board installation is capable of driving four heads, but you only have three monitors which are placed in a single row, then you can select the “Three monitors – System manual Coronis 1MP...

  • Page 126: Languages Supported

    English (U.S) ( default ) Dutch German Korean Japanese Simplified Chinese Traditional Chinese To change between the languages select the correct region via the Regional Settings Control Panel in your machine’s Start > Settings > Control Panel. System manual Coronis 1MP...

  • Page 127: Barcomed Hardware Tab

    I f n I f n I f n I f n I f n I f n I f n I f n I f n I f n I f n I System manual Coronis 1MP...
  • Page 128 Double click on the rectangle that represents the BarcoMed Display Controller to bring up its property page. Click on the “BarcoMed Hardware Tab” (see figure 95, on the next page). Figure 94: BarcoMed Hardware Tab under Windows NT 4.0 System manual Coronis 1MP...

  • Page 129: Using The Barcomed Hardware Tab

    Using The BarcoMed Hardware Tab Device Displays the current BarcoMed Display Controller, driver, and the currently selected display resolution. Identify Device: This button is for BarcoView Medical Imaging Systems (MIS) internal use only and is grayed out. System manual Coronis 1MP...

  • Page 130: Pci Information

    The other report that is generated contains information about the Barco display adapters installed in the system and will be named BarcoMedDeviceInfo.txt.
  • Page 131 BarcoMed Display Controller in order to update it’s firmware. This file will be provided by BarcoView MIS if and when a firmware update is required. Special Note: The BarcoMed Hardware Configuration Wizard is applicable only for AURA-based Display Controller(s). System manual Coronis 1MP...
  • Page 132 BarcoMed software driver installation (This page intentionally left blank.) System manual Coronis 1MP...

  • Page 133: Barco Display Tab

    1. Open the “Display Properties Control Panel” by right clicking on the desktop, then select “Properties”. 2. Under Windows NT 4.0, Click on the “BARCO Display Tab” (see figure 96, below). Figure 96: BARCO Display Tab under Windows NT 4.0 Under Windows 2000 and Windows XP, click on the “Settings”...

  • Page 134: Using The Barco Display Tab

    BarcoMed software driver installation Display you are working with to bring up its properties page. Click on the “BARCO Display” tab (figure 97). Figure 97: BARCO Display Tab under Windows 2000 and Windows XP Using The BARCO Display Tab Displays...

  • Page 135: Properties

    I-Guard sensor on the front of the display. Current Luminance Value: This is the current luminance value of the display. It may vary a bit from time to time, for the display continuously calibrates itself to meet the target luminance value. System manual Coronis 1MP...
  • Page 136 BarcoMed software driver installation Figure 98 System manual Coronis 1MP...

  • Page 137: Barco Dpms Screen Saver Overview

    DPMS states as requested by the display controller. The default state for the BARCO DPMS Screen Saver is the Off state. In addition to simply entering the Off state after the work day, the user can specify that the display first go through two other DPMS Screen Saver states before going into Off state.

  • Page 138: Barco Dpms Screen Saver Options

    BarcoMed software driver installation BARCO DPMS Screen Saver Options From the “BARCO DPMS Screen Saver Control Panel” you can change many DPMS screen saver elements simultaneously. The DPMS screen saver elements in each scheme are work schedule, work day screen saver, DPMS settings after work day, and many additional options.

  • Page 139: Screen Saver During Work Day

    BarcoMed software driver installation Screen Saver During Work Day On CRT based displays, such as the Barco MGD series, a “regular” screen saver can be invoked during user inactivity during the work day. This “regular” screen saver and its settings can be chosen from the “Screen Saver During Work Day”...

  • Page 140: Monitor Settings

    If you have a Barco Medical Display, select “Barco Quick Start.” If a non-Barco display is being used, select the amount of time it takes your display to warm up via the “Monitor Setting”...

  • Page 141: Using The Barco Dpms Screen Saver

    Barco DPMS Screen Saver so that Windows will store the selection in the user’s profile. If a user does not select the BARCO DPMS Screen Saver as his screen saver, the next time he logs on to the system the screen saver selection may be blank.
  • Page 142 BarcoMed software driver installation Figure 99: Windows NT 4.0 Screen Saver Tab System manual Coronis 1MP...
  • Page 143 BarcoMed software driver installation Figure 100: Windows 2000 Screen Saver Tab Figure 101: Windows XP Screen Saver Tab System manual Coronis 1MP...
  • Page 144 BarcoMed software driver installation 3. Click on the “Settings” button. The “BARCO DPMS Screen Saver Control Panel” will open (see figure 102). Figure 102: BARCO DPMS Settings Control Panel 4. Use the default schemes by selecting one of the three default schemes.
  • Page 145 8. Select the amount of time it takes for your display to warm up. If you have a Barco Medical Display, select “Barco Quick Start”. If you are using a non-Barco display, select the amount of time it takes your display to warm up via the “Monitor Setting” section.

  • Page 146: Installing Or Reinstalling Barco Dpms

    12. Click “OK” again to close the “Display Properties Control Panel”. Installing or Reinstalling BARCO DPMS To install or reinstall the BARCO DPMS Screen Saver insert the CORONIS Software CD in the appropriate device on your computer and run the BarcoMed Product Install Wizard (please see the section Software Installation for complete instructions).
  • Page 147 4. Click “Remove” on the Remove Program Screen of the Wizard (figure 106). Figure 106 5. When the Wizard has finished removing the program, click “Finish” on the InstallShield Wizard Completed Screen of the Wizard (figure 107). System manual Coronis 1MP...
  • Page 148 BarcoMed software driver installation Figure 107 6. Click “Quit” to exit the BarcoMed Product Installation Wizard. System manual Coronis 1MP...

  • Page 149: Coronis Rotation Service

    Rotating a single head on any given BarcoMed Display Controller will affect both of the heads connected to that display controller. If you change the physical orientation of one CORONIS display connected to any given BarcoMed Display Controller, the CORONIS System manual Coronis 1MP...

  • Page 150: Installation Or Reinstallation

    3. Type the following text in the dialog box: “cmd”. 4. Click on “OK”. 5. Type the following text in the command line window: “coronisrotationservice /uninstall” 6. When the program has finished, closed the command line window. System manual Coronis 1MP...

  • Page 151: Medical Software Installation And Usage

    MEDICAL SOFTWARE INSTALLATION AND USAGE System manual Coronis 1MP...
  • Page 152 MediCal software installation and usage (This page intentionally left blank.) System manual Coronis 1MP...

  • Page 153: Medical Software Installation

    5 For all the displays in the system, define (if necessary) and select a Preset. 6 After selecting the Preset, MediCal starts consistency calibration automatically. 7 Define the Q/A task schedule. 8 Run the due tasks. Please refer to the MediCal User Guide for more information. System manual Coronis 1MP...
  • Page 154 MediCal software installation and usage (This page intentionally left blank.) System manual Coronis 1MP...

Table of Contents
