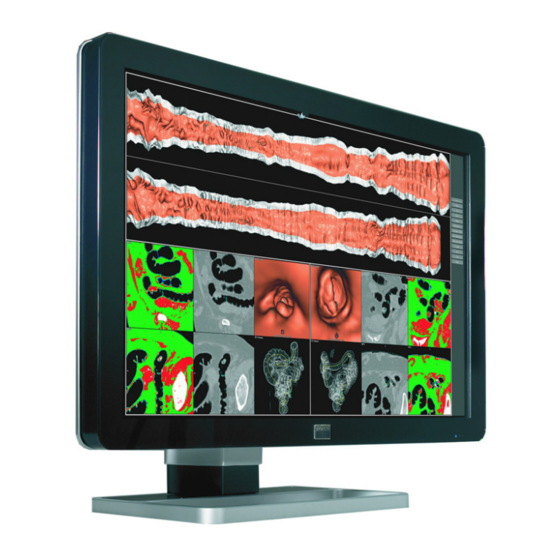

Coronis Fusion
Online User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Coronis Fusion and is the answer not in the manual?

Questions and answers

Related Manuals for Barco Coronis Fusion

Summary of Contents for Barco Coronis Fusion

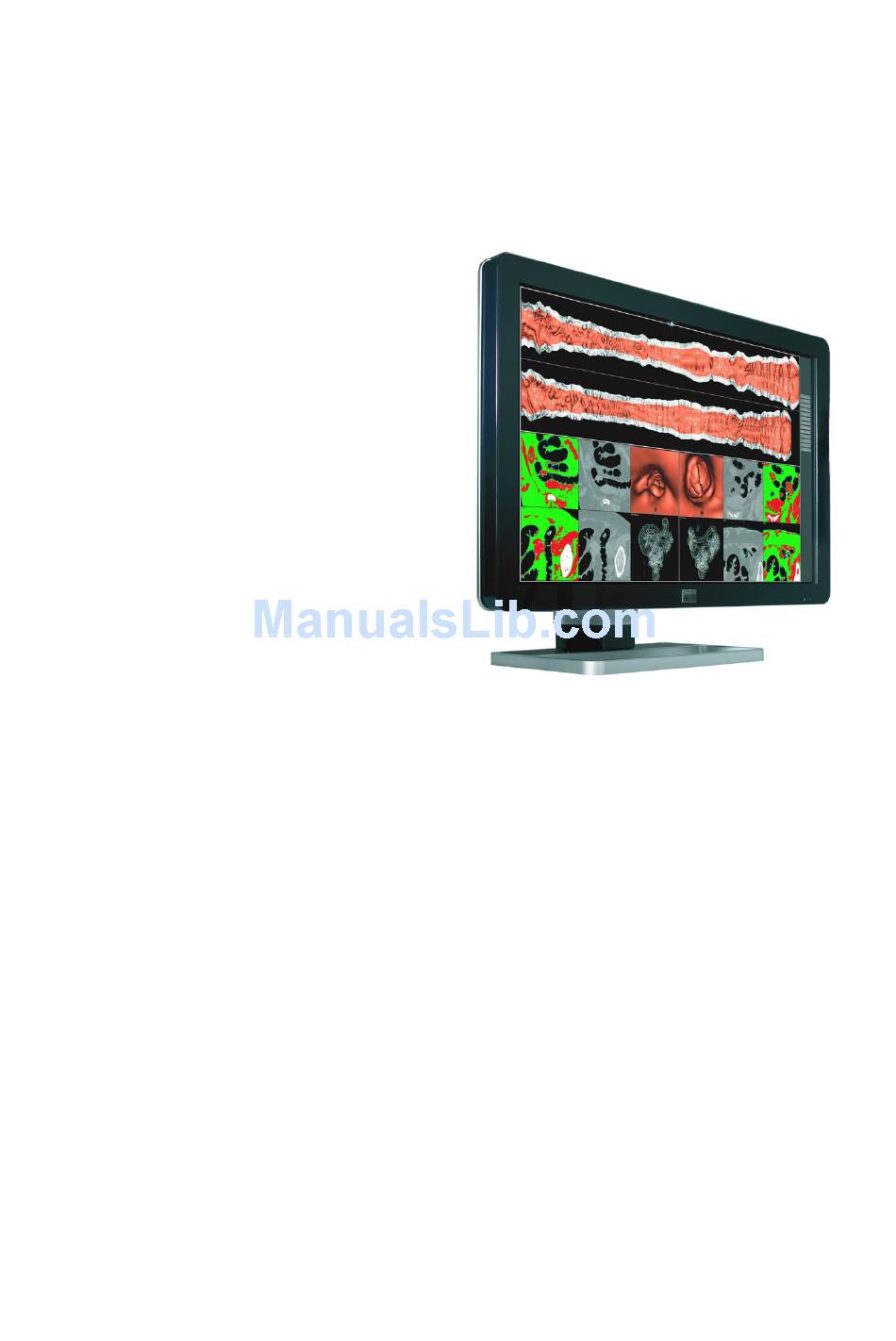

  • Page 1 Coronis Fusion Online User Guide...
  • Page 2 (This page intentionally left blank.) (This page intentionally left blank.)

  • Page 3: Sources Of Information

    Using the online User Guide Using the online User Guide Sources of information Overview of product documentation Document Content Quick install sheet Gives a short overview of the installa- (poster in box) tion of a complete system. Getting started guide Gives a detailed description of the (booklet in box) installation and connection of a com-...
  • Page 4 Using the online User Guide Item Description Favorites Allows to add and remove help topics to a list of favorites. (requires cookies) Items in the toolbar frame Item Description Press this button to show the location of Synchronize the help item in the Contents. Press this button to move to the previ- Previous ous help topic.

  • Page 5: Graphic Board Information

    Display System using the tools available through the ORONIS USION Advanced button on the Settings tab of the Windows Display Control Panel. Note: If you purchased Barco Medical Displays only and not a complete B Display System you will need to ARCO ORONIS USION refer to the user manual for the display controller you are using.

  • Page 6: Barco Driver Properties

    The second section provides information about the display. The bottom section allows access to two Barco tools, Barco System Report and MediCal QAWeb. Also, there is a active link to the Barco Medical Imaging Systems web site.
  • Page 7 Barco system report The Barco System Report, also known as BarcoMed SelfExam, is a wizard based tool which collects data about the components that are...

  • Page 8: Advanced Properties For Mxrt Controller

    Graphic board information installed in your system. This information is used by the Barco MIS Support team when trying to resolve customer issues. MediCal QAWeb Clicking on the QA Web button will launch the MediCal QAWeb application. Please refer to the MediCal QAWeb manual for information about this application.

  • Page 9: Color Format

    If it is unchecked, then it will be the largest mode in the Cloned displays mode list. Clone mode can only be exited through the Barco Adapter Configuration page in the Barco Advanced Control Panel. Note: Not all options are available at all times. Please select...

  • Page 10: Opengl And Direct3D

    There is also a checkbox provided for enabling Custom Settings. Custom Settings Note: Barco recommends that you use the default settings, unless your viewing application vendor provides detailed information on custom settings.

  • Page 11: Device Details

    Rotation The Rotation page is visible only when the display connected to the current (active) head of your Barco MXRT display controller does not support rotation internally. The Rotation feature allows the user to rotate the Windows desktop to match the physical orientation of the display.

  • Page 12: Opengl Profiles

    Graphic board information OpenGL Profiles The Configuration page enables you to customize display profiles for individual applications. Typically, you would change these settings for one or more of the following reasons: • Diagnostic purposes. • Fine-tuning a specific application/system configuration. •...
  • Page 13 Graphic board information configuration controls on this tabbed dialog to obtain the desired display parameters for the selected application. To remove the selected configuration profile completely, select the name of the application from the Configuration Profiles list box and click Delete. Note: You cannot delete the factory-set configuration profiles.

  • Page 14: Display Information

    To do this, go to “Power Options Properties” in the “Control Panel”. Barco recommends setting DPMS activation after 20 minutes of non-usage. 2. Use a screen saver to avoid image retention Prolonged operation of an LCD with the same content on the same screen area may result in a form of image retention.

  • Page 15: Display Controls

    Display information diagnostic performance of the product. To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels. To learn more about LCD technology and missing pixels, consult the dedicated white paper available at www.barcomedical.com. 4. Enhance user comfort Every Barco multi-head display system is color matched with the highest specification in the market.
  • Page 16 Display information Figure 2: Touch keys Left/Down touch key To move down or decrease values in the OSD. Right/Up touch key To move up or increase values in the OSD. Enter touch key To display the OSD (on-screen display). In the OSD, this button acts as Enter button to make selections.

  • Page 17: Using The Touch Keys

    Display information Control wheel The control wheel can be pressed like a push button and rotated like a knob. It allows to put the display in stand-by, navigate through the on- screen display (OSD) menus and change values in the OSD. The control wheel is located at the bottom of the LCD panel.
  • Page 18 Display information Displaying the on-screen display (OSD) While the OSD is not on the screen, touch any touch key. As a result, the control panel illumination is switched on for a few seconds. While the contol panel illumination is on, touch the Enter touch key.

  • Page 19: Using The Control Wheel

    Display information Using the control wheel Stand-by switching While the OSD is not on the screen, click the control wheel shortly. A message appears on the screen. Click the control wheel once more to confirm. To switch the display on while it is in stand-by, click the control wheel shortly.

  • Page 20: Info Messages

    Display information Click the wheel to enter the new value and return to the menu. Info messages The following messages may appear automatically on the screen: Input Selection The Input selection menu appears in case 2 video signals are connected and the resolution of one or both video signals is too high to display them both.

  • Page 21: On-Screen Display (Osd)

    Display information backlight value). The message will not disappear until the display is powered off. LCM Temperature Sensor Off Line This is a serious error message. You should power off the display and call for service. The warning means the LCD panel temperature sensor has lost communication.
  • Page 22 Display information Name Description Viewing mode Allows to select the viewing mode: Diagnostic or Text. In text mode the luminance is approximately half of the luminance in diagnostic mode. This is intended for use with office applications such as word processing. You can also switch between both modes by touch- ing the up and down...
  • Page 23 Display information Name Description Luminance target Allows to select the luminance target that corresponds to the color target. Defined in Indicates how the color temperature is defined: in (x,y) co-ordinates or Kelvin (K). You can switch between both by using the Up and Down touch keys or by rotating the control wheel.

  • Page 24: Display Function Menu

    Display information Name Description Restore factory x,y values Allows to reset the (x,y) co-ordinates of the color temperature to the factory val- ues. This function is not available when the Native White color target is selected. Display Function menu Display function menu Name Description Display function...
  • Page 25 Display information Name Description Averaged ambient light Shows the average of the measured ambient light since the display was switched on. When you execute the function “Mea- sure ALC Value”, this value will be stored as the Measured ALC correction value for the selected reading room, unless this value is higher than the maximum ambient light determined for...
  • Page 26 Display information Name Description DICOM offset When Continuous DICOM ALC is switched off, the DICOM DF is recalculated at the moment the DICOM Offset is changed, taking the new DICOM Offset into account. • When set to “Dark Room”, the ambient light is not taken into account.
  • Page 27 Display information Reading room definition submenu Name Description Measured ambient light Indicates the ambient light actually measured by the ambient light sensor on the front of the display. This is a read-only value. Averaged ambient light Shows the average of the measured ambient light since the display was switched on.
  • Page 28 Display information Name Description Measure ALC value The value shown here is taken into account in the calculation of the DICOM DF if Continuous DICOM ALC is switched off and DICOM Offset is set to “Mea- sured ALC”. When you select this line and confirm the selection, the actual averaged ambient light value is stored here, over- writing the former value.

  • Page 29: Settings Menu

    Display information Settings menu Name Description DPMS Allows to switch the display power management system on/off. See note below. Power LED Allows to switch the power LED’s on state on/off. The LED's orange DPMS state is not influenced by this setting. So, when the display goes into power- saving mode, the LED will turn orange, even if it was switched off by this set-...
  • Page 30 Display information Name Description Input Switch Mode Select “Auto” if you wish the display to select the video inputs automatically. If only one video input is connected, the image will be shown in the center of the screen. If both video inputs are con- nected, the video signal connected to the “Left”...

  • Page 31: Information Menu

    Display information Barco recommends to switch DPMS on to prevent image burn-in (image retention) on the LCD panel. Information menu Information Name Description Product The display type Serial No Indicates the display serial number SW Number The order no. of the internal software...

  • Page 32: Enabling/Disabling User Controls

    Display information Switching viewing modes by means of the OSD menus You can also switch viewing modes in the Luminance and color menu. Enabling/disabling User Controls To disable the user controls: Open the OSD main menu. Open the Settings menu. Select User Controls.

  • Page 33: Switching Power Led On/Off

    Display information Press the control wheel 2 times. Rotate the control wheel 1 step counterclockwise. The on- screen display appears. Note: Steps 3 to 5 must be performed in maximum 3 seconds. As a result, the User Controls setting in the Settings menu is switched on again.

  • Page 34: Changing Display Functions

    Display information Return to the Settings menu. Changing Display Functions Concepts • The Display Function menu lets you select a display function (DF). • When you select the DICOM DF you can define the DICOM DF to be recalculated taking the ambient light into account. This can be a continuous recalculation (“Continuous DICOM ALC”...

  • Page 35: Display Function Selection

    Display information Medicine). However they can be changed within certain limits. Display function selection To select a display function (DF): Open the main menu. Open the Display Function menu. Select Display Function. Select the desired DF. Return to the Display Function menu. You can select the following DFs: Name Description...
  • Page 36 Display information ALC & DICOM Options Continuous DICOM ALC Introduction When you select the DICOM DF, the display offers the possibility to take the ambient light into account for calculating the DICOM display function. This function is called Continuous DICOM ALC (ALC is short for Ambient Light Compensation).

  • Page 37: Reading Room Selection

    Display information To select a DICOM offset: Select the DICOM display function. See To select a display function (DF):, on page 35. Switch Continuous DICOM ALC off. See To switch continuous DICOM ALC on/off:, on page 36. In the ALC & DICOM Options menu, select DICOM Offset. Select an offset.
  • Page 38 Display information To select a reading room setting: Select the DICOM display function. See To select a display function (DF):, on page 35. Switch Continuous DICOM ALC off. See To switch continuous DICOM ALC on/off:, on page 36. In the ALC & DICOM Options menu, select Reading Room. Select the reading room that corresponds to the room type the display is installed in.

  • Page 39: Reading Room Definition

    Display information Reading room definition This function is available only when the DICOM display function is selected and Continuous DICOM ALC is off. To modify a reading room definition: Select the DICOM display function. See To select a display function (DF):, on page 35. Switch Continuous DICOM ALC off.
  • Page 40 Display information ambient light value. Use Enter or click the control wheel again to store the value. • However, if you wish to adapt the ambient light conditions to the definition of the selected reading room, dim the light in the room so that the measured ambient light becomes lower that the maximum ambient light.

  • Page 41: Barco Web Sites

    Barco web sites Barco web sites Visit Barco at: http://www.barco.com Visit Medical Imaging at: http://www.barco.com/medical...
  • Page 42 K5902016-01 October 2009 Barco nv Medical Imaging President Kennedypark 35 B-8500 Kortrijk, Belgium www.barco.com...
