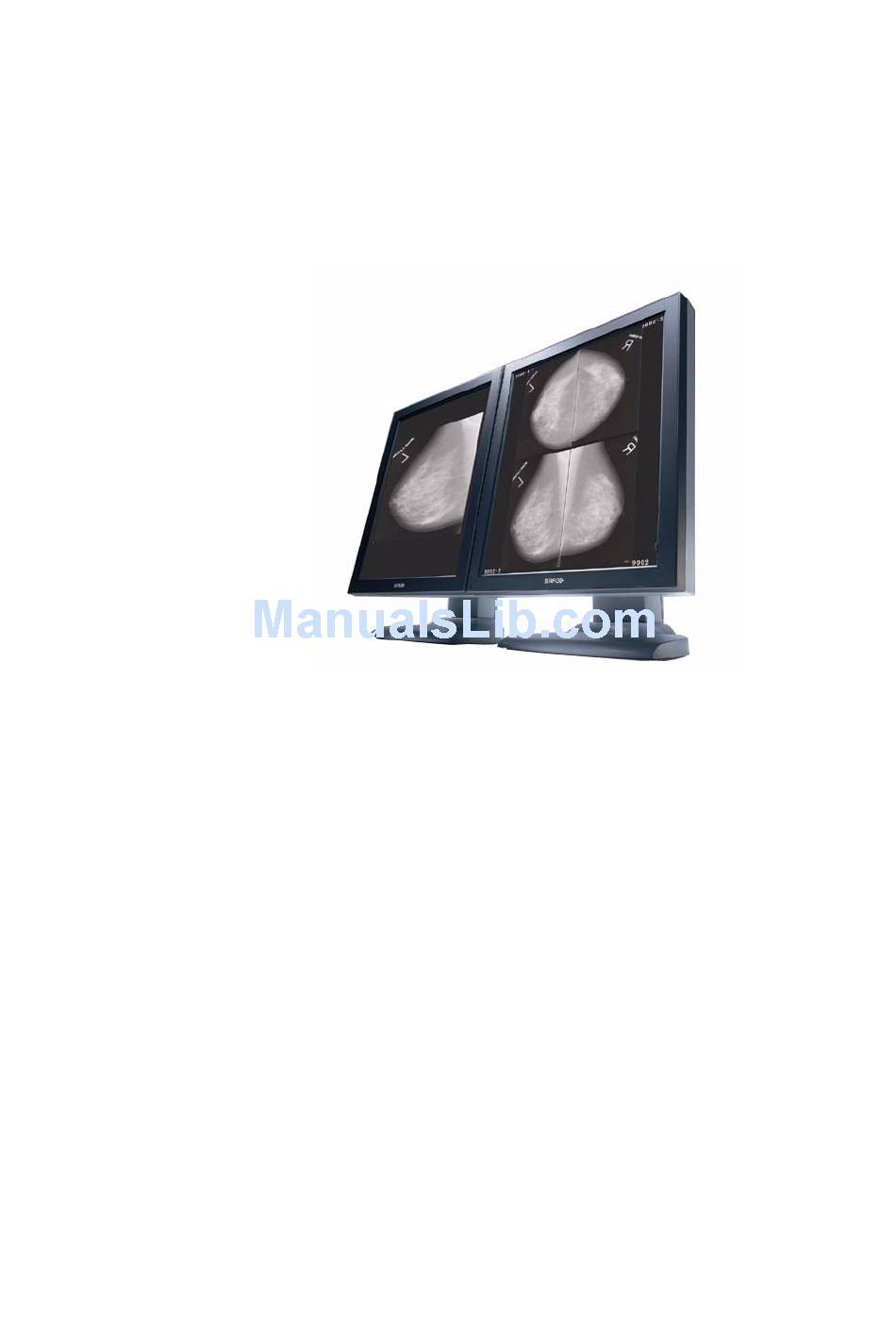

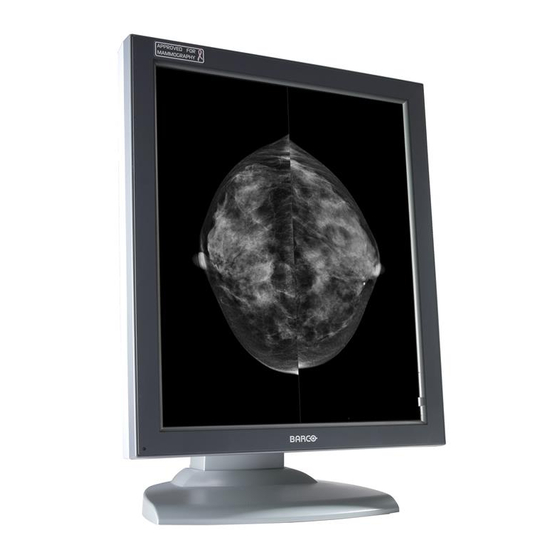

  • Page 1 Coronis 5MP Mammo Installation & User Manual...
  • Page 2 (This page intentionally left blank.) (This page intentionally left blank.) Coronis 5MP Mammo...
  • Page 3 - graphical, electronic, or mechanical including photocopying, taping or information storage and retrieval systems - without written permission of Barco © 2006 Barco N.V. All rights reserved. Coronis 5MP Mammo...

  • Page 4: Table Of Contents

    Explanation of symbols ..............14 Introduction ..................... 15 Overview.................... 17 Single display or complete system?.......... 17 BarcoMed 5MP2FH Overview ............18 Barco displays overview ............19 Package contents ................22 Parts, controls and connectors............23 Installation ....................27 Installation precautions..............29 Installing the BarcoMed 5MP2FH display controller......
  • Page 5 Barco DPMS Screen Saver ..............65 Introduction ................65 BARCO DPMS Screen Saver Options........... 66 Getting started with the BARCO DPMS Screen Saver ....69 Using the BARCO DPMS Screen Saver........70 Installing or Reinstalling BARCO DPMS........73 Coronis I-Switch Software ..............75 Overview..................
  • Page 6 Introduction ................108 Using The BarcoMed Hardware Tab......... 109 Display resolution................117 Setting the resolution of your Coronis 5MP Mammo display 118 Driver Re-installation, updates or removal ........121 Reinstalling or Updating your BarcoMed 5MP2FH Driver..121 Uninstalling the BarcoMed 5MP2FH driver ......123 Technical Information ................

  • Page 7: Preface

    Preface Coronis 5MP Mammo...
  • Page 8 Preface (This page intentionally left blank.) (This page intentionally left blank.) Coronis 5MP Mammo...
  • Page 9 BarcoView software products are the property of BarcoView. They are distributed under copyright by Barco N.V. or BarcoView, LLC., for use only under the specific terms of a software license agreement between Barco N.V.
  • Page 10 Cet appareil ISM est conforme à la norme NMB-001 du Canada. Disposal Information The lamps inside the display contain mercury. Do not throw the display in the trash. Dispose of it as required by local ordinances or regulations. Coronis 5MP Mammo...

  • Page 11: Safety Instructions

    • Power requirements: The display must be powered by the AC mains voltage. • Power cords: Utilize a UL-listed detachable power cord, 3-wire, type SJ or equivalent, 18 AWG min., rated 300 V min., provided with a Coronis 5MP Mammo...
  • Page 12 LCD panel. Over 10 hours operation with the same image content is not recommended. Switching on DPMS on display and PC and activating a good screen saver may decrease the risk of image sticking (image retention). Coronis 5MP Mammo...
  • Page 13 CE (MDD 93/42/EEC class I product), IEC 60601-1, UL 60601-1, IEC 60950-1, CAN/CSA C22.2 No. 601.01-M90 (c-UL) National Scandinavian Deviations for Cl. 1.7.2 : Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan" Norway: "Apparatet må tilkoples jordet stikkontakt" Sweden: "Apparaten skall anslutas till jordat uttag" Coronis 5MP Mammo...

  • Page 14: Explanation Of Symbols

    Indicates this apparatus must not be thrown in the trash but must be recycled, according to the European WEEE (Waste Electrical and Electronic Equipment) directive Symbols used throughout the manual: Warning Caution Important notice or Note remark Hint, tip Additional information Coronis 5MP Mammo...

  • Page 15: Introduction

    Introduction Coronis 5MP Mammo...
  • Page 16 Introduction (This page intentionally left blank.) (This page intentionally left blank.) Coronis 5MP Mammo...

  • Page 17: Overview

    Overview Overview Thank you for choosing Barco. Single display or complete system? This manual describes installation and usage of a complete system. A system is a bundling of one or more displays and one or more display controllers (graphics boards).

  • Page 18: Barcomed 5Mp2Fh Overview

    • 14 bit input and 10 bit output DAC • 1024 Simultaneous shades of gray • 400MB/second image download speed • Real time window leveling and panning • Hardware cursor • Full Speed VGA Emulation • Display Properties Control Panel to dynamically change display settings Coronis 5MP Mammo...

  • Page 19: Barco Displays Overview

    Its high-brightness, combined with image crispness and excellent viewing angle, makes it an ideal solution for a multitude of medical applications and environments. I-Guard I-GUARD is Barco’s patent-pending, built-in calibration device, ® continuously maintaining image quality. With I-GUARD , QA checks no ®...
  • Page 20 The user can easily change the panel height and viewing angle, allowing to use the display in the optimal viewing conditions. Per Pixel Uniformity (PPU) Coronis 5MP Mammo is equipped with the unique Per Pixel Uniformity (PPU) functionality. This proprietary technology measures and adjusts the luminance output at pixel level and eliminates screen noise, thereby making each individual pixel DICOM-compliant.
  • Page 21 Current Liquid Crystal Displays contain some missing pixels. These so- called defect pixels can be problematic because you might miss critical information in a mammography image. Barco's Coronis 5MP Mammo flat panel has Defect Pixel Compensation (DPC) technology. DPC detects and identifies the missing pixels in each individual display.

  • Page 22: Package Contents

    • Two velcro strips to bind the cables • European power cord • American power cord • Chinese power cord If some of the items are missing, please contact the reseller from whom you have purchased the unit. Coronis 5MP Mammo...

  • Page 23: Parts, Controls And Connectors

    PPU data (Per Pixel Uniformity) is loaded. USB downstream port. See also item “6.” on page 24 Control wheel The control wheel can be pushed like a push button and turned like a knob. Coronis 5MP Mammo...
  • Page 24 Connect this connector to the PC USB bus if you wish to connect USB devices to the display’s USB downstream port. USB downstream port When the display is connected to the PC USB bus, you can connect USB devices, such as keyboard, mouse, digital camera, to this connector. Coronis 5MP Mammo...
  • Page 25 The display is shipped with this clip in the foot to protect the tilt & swivel mechanism during transport. After unpacking, you should remove this clip. Do not throw the clip away! Should the display have to be packed and shipped later, the clip must be applied to the foot again. Coronis 5MP Mammo...
  • Page 26 Parts, controls and connectors (This page intentionally left blank.) Coronis 5MP Mammo...

  • Page 27: Installation

    Installation Coronis 5MP Mammo...
  • Page 28 Installation (This page intentionally left blank.) (This page intentionally left blank.) Coronis 5MP Mammo...

  • Page 29: Installation Precautions

    • Keep the display away from heat sources and provide enough ventilation around the display. • Do not use the display in direct sunlight. • Do not scratch or apply pressure to the LCD panel. This may damage the panel permanently. Coronis 5MP Mammo...

  • Page 30: Installing The Barcomed 5Mp2Fh Display Controller

    Prior to installing your BarcoMed 5MP2FH display controller(s) in your PC please take a few minutes to familiarize yourself with both the display controller and the PCI slots in your computer. Figure 3: The BarcoMed 5MP2FH display controller Coronis 5MP Mammo...
  • Page 31 32 bit board. It may be installed in either a 32 bit or 64 bit slot with no loss of functionality. Figure 5 illustrates the types of slots so that you can correctly identify which one to use for the BarcoMed 5MP2FH. Coronis 5MP Mammo...
  • Page 32 BarcoMed 5MP2FH (the output farthest from the motherboard – “Head 1” in figure 6 on page 33) using the provided DVI cable. For a dual-headed BarcoMed 5MP2FH setup, connect the secondary display to the other connector on the display controller. Coronis 5MP Mammo...
  • Page 33 BIOS, and not the BarcoMed display controller. It may become necessary, depending on how your PC’s BIOS configures the PCI bus, to switch your DVI display connections to achieve a linear desktop configuration. Figure 6: The Video Outputs. Coronis 5MP Mammo...

  • Page 34: Display Installation

    To remove the clip: Position the display with its rear side facing you. Pull the red clip out of the fixation holes in the foot. Keep the clip in case the display needs to be shipped later. Coronis 5MP Mammo...
  • Page 35 Stand at the front side of the panel and take the panel at both sides. Very important: Tilt the panel before changing the orientation. Should you change the panel orientation without tilting it first, you might irreversibly damage the tilt & swivel mechanism. Figure 10: Tilt the panel before rotating Coronis 5MP Mammo...
  • Page 36 Only the orientation of the on-screen display (OSD) will change automatically in case “Orientation” in the OSD Geometry menu is set to “Automatic”. To change the orientation of the image, you will have to change the resolution in the Windows Display control panel (if possible). Coronis 5MP Mammo...

  • Page 37: Power Connection

    2 clips at the top of the cover. Connect one end of the proper power cable to the AC input of the display. Connect the other end of the power cord to a grounded power outlet. Coronis 5MP Mammo...

  • Page 38: Video Connection

    Connect the second display to output Vid 2 (Head B). USB connection The USB connection allows you to use the display as USB hub, to which you can connect USB devices, such as a keyboard, mouse or digital camera. Coronis 5MP Mammo...

  • Page 39: Cable Routing

    • Bind the cables together above and under the foot, by means of the 2 velcro strips attached to the inside of the foot cover (packed inside the accessory box). • At last, put the foot cover back in place. Coronis 5MP Mammo...
  • Page 40 Slide the cover upward while moving the lower side of the cover towards the foot. Press the cover to the foot so that it makes a clicking sound. Coronis 5MP Mammo...

  • Page 41: Attaching The Display To An Arm Stand

    Remove the small screw (A) fixing the small plastic cover on top of the foot. Next, remove the small cover itself. Figure 16: Display with tilt & swivel foot cover removed Unscrew the 2 screws fixing the round plastic cover (B). Coronis 5MP Mammo...
  • Page 42 Lift up the round plastic cover. Remove the four screws fixing the foot while supporting the foot. Attach the arm stand firmly to the panel using 4 screws M4 x 8 4 screws M4 x 8mm Figure 17 Coronis 5MP Mammo...

  • Page 43: Software Installation

    Connect the Coronis 5MP Mammo display panel(s) to the BarcoMed 5MP2FH display controller and power supply. Decide if you want to install the Barco DPMS Screen Saver and the Coronis I-Switch Software in addition to the driver. Decide if you are going to install the BarcoMed 5MP2FH driver with DualView enabled or disabled.
  • Page 44 “No”. Insert your Coronis 5MP Mammo Software CD into your computer’s CD drive. If the “BarcoMed Product Installation Wizard” doesn’t start within one minute, browse the contents of your Coronis 5MP Mammo Software CD and double click on the file: “Setup.exe”...
  • Page 45 If you do not want to install a particular BarcoMed Software product at this time, deselect it by clearing the checkbox next to it. Click “Install” to continue or “Cancel” to exit the wizard. Coronis 5MP Mammo...
  • Page 46 If you select a device with an installed driver, the wizard will warn you if the installed driver is newer than the one you are installing (figure 21). Coronis 5MP Mammo...
  • Page 47 Click “OK” to continue. When the screen shown in figure 22 on page 48 or figure 23 on page 48 appears, click “Yes” or “Continue Anyway” to continue. This screen may appear multiple times. Coronis 5MP Mammo...
  • Page 48 If you are uncertain use the default settings. You can change the palette mode later (See “Palette Mode” on page 59 of the BarcoMed Driver Tab section). If you want to enable DirectDraw check the checkbox next to “Enable Direct Draw”. Click “Next”. Coronis 5MP Mammo...
  • Page 49 The wizard will now begin installing the next selected piece of BarcoMed Software. If you are working with the default selections, this will be the Barco DPMS Screen Saver. Please turn to the section, “BARCO DPMS Screen Saver Installation” on page 50.
  • Page 50 BARCO DPMS Screen Saver Installation Click “Next” on the Welcome Screen of the BARCO DPMS InstallShield Wizard to begin the installation. Click “Cancel” to cancel the DPMS installation and return to the BarcoMed Product Install Wizard (see figure 25 on page 50).
  • Page 51 Install Wizard to select additional software to install. When you click “Finish” Windows may prompt you to restart your system, if it does click “Yes” and turn to the section “Barco monitor plug and play software” on page 52. I-Switch Software Installation...
  • Page 52 Software Installation Click “Next” on the Welcome Screen of the Coronis 5MP Mammo I-Switch Software InstallShield Wizard to continue the installation. Click “Cancel” to cancel the Coronis 5MP Mammo I-Switch Software installation and return to the BarcoMed Product Install Wizard.
  • Page 53 Figure 26: Windows 2000 Digital Signature Not Found Warning Figure 27: Windows XP Windows Logo Testing Warning The Barco Monitor Plug and Play software will automatically set the resolution for the displays of your Coronis 5MP Mammo System. However, the second head of a dual headed system may be inactive. To make this display active you must extend your desktop to this display using the “Windows Display Control Panel”.
  • Page 54 Software Installation section “Setting the resolution of your Coronis 5MP Mammo display” on page 118 of the Troubleshooting Section of this manual for instructions on setting the resolution. Coronis 5MP Mammo...

  • Page 55: Display Controller Settings

    Display Controller settings Coronis 5MP Mammo...
  • Page 56 Display Controller settings (This page intentionally left blank.) (This page intentionally left blank.) Coronis 5MP Mammo...

  • Page 57: Barcomed Driver Tab

    BarcoMed Tabs of the Windows Display Control Panel to change any display settings. Open the “Display Properties Control Panel” by right clicking on the desktop, then select “Properties”. Coronis 5MP Mammo...

  • Page 58: Status

    BarcoMed Driver Tab Under Windows 2000 or Windows XP, click on “Settings” tab. Double click on the rectangle that represents the Barco display whose settings you wish to change to bring up its property page. Click on the “BarcoMed Driver” tab ( see figure 28).

  • Page 59: Palette Mode

    In the Palette Mode section you can choose one of the four following Palette Modes.If you are using a color display in conjunction with your Barco grayscale display(s) under Windows 2000 or Windows XP, prior to selecting a palette mode please make certain that you have configured your Window 2000 or Windows XP desktop correctly.
  • Page 60 As shown in figure 30, the 20 standard system colors are converted from RGB to gray values. The rest of the 236 entries from index 10 to 245 contain the missing gray values so that the palette has the full 256 gray values within it. Coronis 5MP Mammo...
  • Page 61 10 entries of the palette are the standard system colors. In this palette mode, these entries are made up from entries in the bottom or the top of the gray ramp. Please note that dithering is not permitted Coronis 5MP Mammo...

  • Page 62: Drawing Modes

    Adjacent pixels are assigned differing color values; when viewed from a distance, these colors seem to blend into a single intermediate color. The technique is similar to the half-toning used in black-and-white publications to achieve shades of gray. Please Coronis 5MP Mammo...
  • Page 63 8-bit pixels. While this option may be used with applications that normally require 10-bit support, there will be a loss of pixel depth, i.e. 256 shades of gray instead of 1024 simultaneous shades of gray. Coronis 5MP Mammo...

  • Page 64: Monitor Configuration

    59% Green, 30% Red, 11% Blue. Monitor Configuration Note: If the options in this section are grayed out, then they are not available for the model controller with which you are working. Coronis 5MP Mammo...

  • Page 65: Barco Dpms Screen Saver

    Note: The Barco DPMS Screen Save will not control any displays connected to a non-Barco display controller. The default state for the BARCO DPMS Screen Saver is the Off state. In addition to simply entering the Off state after the work day, the user can specify that the display first go through two other DPMS Screen Saver states before going into Off state.

  • Page 66: Barco Dpms Screen Saver Options

    Barco DPMS Screen Saver BARCO DPMS Screen Saver Options From the “BARCO DPMS Screen Saver Control Panel” you can change many DPMS screen saver elements simultaneously. The DPMS screen saver elements in each scheme are work schedule, work day screen saver, DPMS settings after work day, and many additional options.
  • Page 67 Screen Saver During Work Day On LCD based displays, such as the Barco CORONIS displays, it is not necessary to invoke a screen saver as there is no CRT phosphor to preserve. However, one can extend the life of the backlight in the LCD display, in addition to realizing great power savings, during period of user inactivity by quickly entering the Off state.

  • Page 68: Monitor Settings

    If you have a Barco Medical Display, select “Barco Quick Start.” If a non- Barco display is being used, select the amount of time it takes your display to warm up via the “Monitor Setting”...

  • Page 69: Getting Started With The Barco Dpms Screen Saver

    Barco DPMS Screen Saver Use As Logon Screen Saver Check the box to use the BARCO DPMS Screen Saver when no one is logged into the system. Uncheck the box to use the default screen saver when no one is logged into the system.

  • Page 70: Using The Barco Dpms Screen Saver

    DPMS Screen Saver so that Windows will store the selection in the user’s profile. If a user does not select the BARCO DPMS Screen Saver as his screen saver, the next time he logs on to the system the screen saver selection may be blank.
  • Page 71 Barco DPMS Screen Saver Figure 33: Windows XP Screen Saver Tab Click on the “Settings” button. The “BARCO DPMS Screen Saver Control Panel” will open (see figure 34). Figure 34: BARCO DPMS Settings Control Panel Use the default schemes by selecting one of the three default schemes.
  • Page 72 “Properties” from the drop down menu; then select the “Screen Saver” tab. Select the “BARCO DPMS Screen Saver” in the “Screen Saver” drop down menu if it is not already selected. Click on the “Settings” button. The “BARCO DPMS Screen Saver Control Panel”...

  • Page 73: Installing Or Reinstalling Barco Dpms

    Select the amount of time it takes for your display to warm up. If you have a Barco Medical Display, select “Barco Quick Start”. If you are using a non-Barco display, select the amount of time it takes your display to warm up via the “Monitor Setting” section.
  • Page 74 Barco DPMS Screen Saver Uninstalling BARCO DPMS To remove the BARCO DPMS Screen Saver from your system insert the Coronis 5MP Mammo Software CD in the appropriate device on your computer, run the BarcoMed Product Install Wizard and follow these steps.

  • Page 75: Coronis I-Switch Software

    Although Windows 2000 and Windows XP support multiple types of display controllers, they support only one resolution per display controller. Rotating a single head on any given BarcoMed Display Controller will affect both of the heads connected to that display Coronis 5MP Mammo...
  • Page 76 Click on the Windows “Start” button. Click on “Run". Type the following text in the dialog box: "cmd". Click on "OK". Type the following text in the command line window: “coronisrotationservice /uninstall” When the program has finished, closed the command line window. Coronis 5MP Mammo...

  • Page 77: Barco Display Tab

    Barco Display Tab Barco Display Tab Introduction The Barco Display Tab is used for gathering information about the BarcoMed Flat Panel Display(s). To access the Barco Display Tab do the following: Open the “Display Properties Control Panel” by right clicking on the desktop, then select “Properties”.

  • Page 78: Using The Barco Display Tab

    Displays All of the available display controllers that are of the same type as the current barco display controller are shown here graphically, with one display icon representing each output of a display controller. The icon orientation reflects the display resolution. Only those outputs with a display attached to them are active.
  • Page 79 I-Guard sensor on the front of the display. Current Luminance Value: This is the current luminance value of the display. It may vary a bit from time to time, for the display continuously calibrates itself to meet the target luminance value. Figure 38 Coronis 5MP Mammo...
  • Page 80 Barco Display Tab (This page intentionally left blank.) Coronis 5MP Mammo...

  • Page 81: Display Operation

    Display operation Coronis 5MP Mammo...
  • Page 82 Display operation (This page intentionally left blank.) (This page intentionally left blank.) Coronis 5MP Mammo...

  • Page 83: Display Operation

    The LED turns orange. BAR CO Push and hold Figure 39 When the display is in stand-by, press the control wheel to switch it back on. Coronis 5MP Mammo...

  • Page 84: About The On-Screen Display (Osd)

    When the OSD is not on the screen, rotate the control wheel to display the OSD. The main menu appears. To enter into a menu: First, rotate the control wheel to select the desired menu. Next, press the wheel shortly. Coronis 5MP Mammo...

  • Page 85: Locking And Unlocking User Controls

    Locking and unlocking user controls The User Controls function allows to disable or enable the control wheel functions. When user controls are disabled, you cannot: • display and use the on-screen display Coronis 5MP Mammo...
  • Page 86 Rotate the control wheel 1 step clockwise. Press the control wheel 2 times. Rotate the control wheel 1 step counterclockwise. The on-screen display appears. Note: Steps 2 to 4 must be performed in maximum 3 seconds. Rotate the control wheel to select Settings. Coronis 5MP Mammo...

  • Page 87: Complete Osd Overview

    Description Luminance Target Manually adjust the luminance. The luminance is indicated in cd/m² (nit). Luminance Target adjusts the overall luminance (light output) of the display. It does not affect the grayscales of the image on the screen. Coronis 5MP Mammo...
  • Page 88 Displays the current internal software version Display Lifetime Indicates the total time the display has been operating, including the time in stand-by Backlight Lifetime Indicates the total time the display has been operating, excluding the time in stand-by Coronis 5MP Mammo...

  • Page 89: Advanced Display Operation

    The functions described in this chapter are intended for trained service staff only! Improper use of these functions may cause the display to not function correctly. Barco cannot be held responsible for the results or damage caused by improper use of these functions. About the Advanced functions The advanced functions are extensions of the standard OSD.

  • Page 90: Advanced Functions In The Settings Menu

    DVI Input Click to switch between normal DVI signal, Dual10 DVI signal or automatic detection of the DVI format. DVI Link Click to switch between single link (Single) and automatic detection of single or dual link (Auto). Coronis 5MP Mammo...

  • Page 91: Advanced Functions In The Information Menu

    The display type Display Ser No Indicates the display serial number Display Stock No Indicates the display order number Panel Ser No Indicates the flat panel serial number Panel Prod Date Indicates the flat panel production date Coronis 5MP Mammo...
  • Page 92 Indicates the total time the display has been operating, excluding the time in stand-by Backlight Runtime Indicates the time the backlight has been on since the last time it was switched off (e.g., in stand-by). This counter stops after 1092 min- utes. Coronis 5MP Mammo...
  • Page 93 The number of active dots, horizontally, of the input signal Hor.Blanking: The horizontal blanking of the input signal Hor.Front Porch: The horizontal front porch of the input signal Hor.Sync: The horizontal sync length of the input signal Coronis 5MP Mammo...

  • Page 94: Advanced Functions In The Adjustments Menu

    The Miscellaneous adjustments are intended for internal purposes only. Adjusting them will have no result. The Miscellaneous menu contains the following items: Name Description RS232 Address Rotate the control wheel to change the inter- nal display address. Coronis 5MP Mammo...

  • Page 95: Cleaning Instructions

    Cleaning instructions Coronis 5MP Mammo...
  • Page 96 Cleaning instructions (This page intentionally left blank.) (This page intentionally left blank.) Coronis 5MP Mammo...

  • Page 97: Precautions

    - Detergents with fluoride - Detergents with ammonia - Detergents with abrasives - Steel wool - Sponge with abrasives - Cloth with thread made of steel - Other coarse tools *(Lye is a strong caustic alkaline solution of potassium salts.) Coronis 5MP Mammo...

  • Page 98: Front Glass

    Front glass Proceed as follows: • Clean the glass using a soft cotton cloth, lightly moistened with a watery solution or a mild commercial glass-cleaning product suited for coated glass surfaces. • Wipe dry with a dry cloth. Coronis 5MP Mammo...

  • Page 99: Cabinet

    • Repeat with water only. • Wipe dry with a dry cloth. • The cabinet has been tested for resistance to the following products: Cidex, Betadine, Alcohol (Isopropyl and Ethyl), Ammonia-based cleaners (Windex) and Aquasonic Gel. Coronis 5MP Mammo...

  • Page 100: Lcd Panel

    It may be possible that dust particles have entered the display and are stuck behind the front glass. We recommend to let this cleaning procedure be done in a BARCO service center. The product warranty expires when the user removes the glass panel or otherwise opens the display.
  • Page 101 25% Isopropyl Alcohol (IPA) and 75% de-ionized or distilled water. E.g.: Cleareen, a product of Certified Laboratories. • Take another clean, dry, soft, lint-free cloth and gently wipe the glass dry. Coronis 5MP Mammo...
  • Page 102 LCD panel (This page intentionally left blank.) Coronis 5MP Mammo...

  • Page 103: Troubleshooting

    Troubleshooting Coronis 5MP Mammo...
  • Page 104 Troubleshooting (This page intentionally left blank.) (This page intentionally left blank.) Coronis 5MP Mammo...

  • Page 105: General Tips

    Image contains not • You may have installed the driver enough grayscales software with an inappropriate selection of Palette Settings (Static Gray with or without System Colors). Install the driver software again using a different setting for Palette Settings. Coronis 5MP Mammo...
  • Page 106 Switching on the display DPMS may decrease the risk of image sticking. • A slight case of image sticking can be solved by continuously displaying a full white image during a number of hours. Coronis 5MP Mammo...
  • Page 107 Problem description Possible tests or solutions On a dual-head system, • Switch the video cables at the the images on the left display controller or at the display and right display seem to video inputs be switched Coronis 5MP Mammo...

  • Page 108: Barcomed Hardware Tab

    PCI Information Only BarcoMed 2MP1NT PCI Information Only BarcoMed 2MP2 PCI Information Only PCI and Firmware BarcoMed 2MP2H Information BarcoMed PC and Firmware 2MP2CF–3D Information PCI and Firmware BarcoMed 2MP2CP Information PCI and Firmware BarcoMed 2MP2FH Information Coronis 5MP Mammo...

  • Page 109: Using The Barcomed Hardware Tab

    Click on the “Settings” tab. Double click on the rectangle that represents one of the heads of the BarcoMed Display Controller you are working with to bring up its properties page. Click on the “BarcoMed Hardware Tab” (see figure 46 on page 110). Coronis 5MP Mammo...
  • Page 110 Figure 46 BarcoMed Hardware Tab under Windows 2000 or Windows XP Device Displays the current BarcoMed display controller, driver, and the currently selected display resolution. Identify Device: This button is for BarcoView Medical Imaging Systems (MIS) internal use only and is grayed out. Coronis 5MP Mammo...

  • Page 111: Pci Information

    Button: “Generate Report” Clicking this button will launch the BarcoMed Self Exam utility. BarcoMed Self Exam is an automated Barco Diagnostic Tool that is used to gather the information that support engineers and technicians need to help Coronis 5MP Mammo...

  • Page 112: Languages Supported

    It probes the system for various types of system information, and saves it to a web-page report that can then be analyzed by the Barco ImageCare team. BarcoMed Self Exam is implemented in a Wizard Format. The BarcoMed Self Exam Wizard will first ask the user to provide detailed customer contact information.
  • Page 113 Customer Diagnostic Questions Screen This screen allows the user to tell the Barco ImageCare team as much as possible about the problem. For the Medical Viewing Applications Running field, enter the medical applications that are currently running on the system with the problem.
  • Page 114 Submitting the Data to Barco Support Once BarcoMed Self Exam has collected the data, the user can submit it to ImageCare, Barco Medical Imaging Systems’ customer support organization by email. To do this you need a system with access to the World Wide Web.
  • Page 115 BarcoMed Hardware Tab Attach the BarcoMed Self Exam report(s) to the email message and send it. You will receive an acknowledgment of receipt of your email by the end of the next business day. Coronis 5MP Mammo...
  • Page 116 The user will be prompted to select a firmware update file to use for the update process. This file will be provided by BarcoView MIS if and when a firmware update is required. Coronis 5MP Mammo...

  • Page 117: Display Resolution

    Display resolution Display resolution If you are using a color display in conjunction with your Barco grayscale display(s) you should configure your desktop before setting the resolution of the your Barco grayscale display(s). Configuring the Windows 2000 or Windows XP desktop...

  • Page 118: Setting The Resolution Of Your Coronis 5Mp Mammo Display

    Display resolution Setting the resolution of your Coronis 5MP Mammo display In order to set the resolution of your Coronis 5MP Mammo display you must be logged in using an account with administrator privileges. To set the resolution of your Coronis 5MP Mammo display(s) right click on the desktop and select “Properties”.
  • Page 119 “TAB” key once and then press “CTRL”+“Enter” to select “OK”. Click “OK” in the “Windows will now apply your new desktop settings” dialog box. Your Coronis 5MP Mammo display should now synchronize and display the Windows desktop. Click “Yes” when asked, “Your desktop has been reconfigured. Do you want to keep these settings?”...
  • Page 120 DualView Enabled. Note: The system shown in figure 47 above is a dual-head, single BarcoMed 5MP2FH Display Controller, with a 3rd party VGA controller configuration. Your system may look different. Coronis 5MP Mammo...

  • Page 121: Driver Re-Installation, Updates Or Removal

    Boot your system, and log in using an account with administrator privileges. Insert your Coronis 5MP Mammo Software CD into your computer’s CD drive. If the “BarcoMed Product Installation Wizard” doesn’t start within one minute, browse the contents of your Coronis 5MP Mammo Software CD and double click on the file: “Setup.exe”...
  • Page 122 Driver Re-installation, updates or removal Figure 48 To update the driver, clear the checkbox next to “DPMS Screen Saver” and “I-Switch” (figure 49) and click “Install”. Figure 49 Coronis 5MP Mammo...

  • Page 123: Uninstalling The Barcomed 5Mp2Fh Driver

    The BarcoMed Product Installation Wizard will display its welcome screen. Make certain that the checkbox next to the driver is checked and that all other checkboxes are unchecked (see figure 50 on page 124). Click “Install” to continue. Coronis 5MP Mammo...
  • Page 124 Click “Next”. On the next screen (figure 51), check the checkbox next to “Uninstall this device” and click “Next” to continue. Figure 51 Click “Next”. If you installed your driver with DualView enabled, skip to step 8. Coronis 5MP Mammo...
  • Page 125 “BarcoMed Product Installation Wizard” by browsing the contents of your Coronis 5MP Mammo Software CD and double clicking on the file: “Setup.exe”. Then follow Steps 3 through 7 on page 4 and page 6 to finish uninstalling the driver.
  • Page 126 Driver Re-installation, updates or removal (This page intentionally left blank.) Coronis 5MP Mammo...

  • Page 127: Technical Information

    Technical Information Coronis 5MP Mammo...
  • Page 128 Technical Information (This page intentionally left blank.) (This page intentionally left blank.) Coronis 5MP Mammo...

  • Page 129: Technical Specifications

    DVI Digital Complying to DVI Rev 1.0 specifications USB standard supported USB 1.1 USB hub only Power source Internal power supply: 90 ~ 264 VAC Power consumption 72 watts (max., at 100 VAC, maximum backlight, USB load) Coronis 5MP Mammo...
  • Page 130 371 x 444 x 90 mm Net weight 13 kg Operating Temperature 0°C to 40°C, 15°C to 35°C within specs Storage Temperature -20°C to 60°C Humidity 8% - 80% (non-condensing) for operation 5% - 95% (non-condensing) for storage Coronis 5MP Mammo...

  • Page 131: Connector Pin Assignments

    Pin no. Signal Pin no. Signal TMDS DATA 2- +5V POWER TMDS DATA 2+ HOT PLUG DETECT TMDS DATA 0- TMDS DATA 0+ DDC CLOCK DDC DATA TMDS DATA 1- TMDS DATA 1+ TMDS CLOCK- TMDS CLOCK+ Coronis 5MP Mammo...

  • Page 132: Glossary

    The standard specifies how digital image data can be moved from system to system. In addition, Supplement 28 Part 14 specifies a function that relates pixel values to displayed Luminance levels and is called Grayscale Standard Display Function. Coronis 5MP Mammo...

  • Page 133: Warranty Statement

    Warranty Statement Coronis 5MP Mammo...
  • Page 134 Warranty Statement (This page intentionally left blank.) (This page intentionally left blank.) Coronis 5MP Mammo...
  • Page 135 All parts replaced hereunder and returned to BarcoView (or an authorized service center) shall become the property of BarcoView (or the authorized service center). 1.5 The repaired equipment shall be returned to the Customer, by regular freight, at BarcoView's charge. Coronis 5MP Mammo...
  • Page 136 BarcoView's performance hereunder: 3.1 Customer shall not expose BarcoView personnel to any unsafe working conditions. 3.2 Repairs to equipment under warranty resulting from improper maintenance or repair performed by the Customer, or its officers, Coronis 5MP Mammo...
  • Page 137 ARTICLE 7: FORCE MAJEURE Either party shall be released from performance of its obligations under this agreement to the extent, and for so long as, the performance of Coronis 5MP Mammo...
  • Page 138 8.2 BarcoView shall not be responsible for machine failure and/or its failure to render service or maintenance due to causes beyond its reasonable control. Coronis 5MP Mammo...
  • Page 139 Warranty Statement B4100461-02 October 2006 Coronis 5MP Mammo...

Table of Contents
