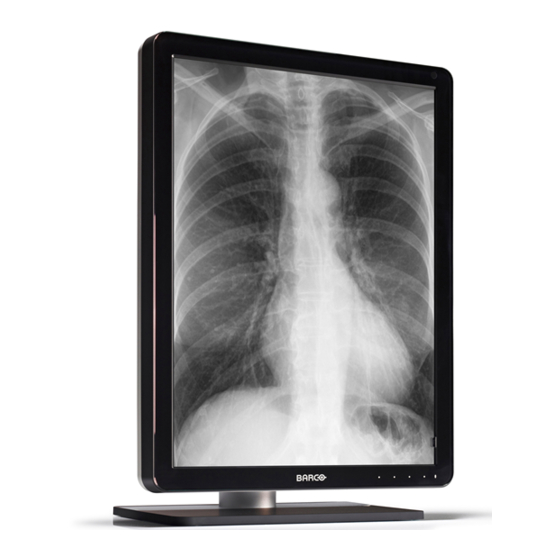

Barco Coronis 3MP Installation & User Manual
  1. Manuals
  2. Brands
  3. Barco Manuals
  4. Medical Equipment
  5. Coronis 3MP
  6. Installation & user manual

Barco Coronis 3MP Installation & User Manual

Hide thumbs Also See for Coronis 3MP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installer and User Manual
Coronis 3MP
Installation & User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Coronis 3MP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco Coronis 3MP

Summary of Contents for Barco Coronis 3MP

  • Page 1 Coronis 3MP Installation & User Manual...
  • Page 2 (This page intentionally left blank.) Coronis 3MP...

  • Page 3: Copyright Notice

    - graphical, electronic, or mechanical including photocopying, taping or information storage and retrieval systems - without written permission of Barco © 2007 Barco N.V. All rights reserved.

  • Page 4: Preface

    BarcoView software products are the property of BarcoView. They are distributed under copyright by Barco N.V. or BarcoView, LLC., for use only under the specific terms of a software license agreement between Barco N.V. or BarcoView LLC. and the licensee.
  • Page 5 Preface Disposal Information The lamps inside the display contain mercury. Do not throw the display in the trash. Dispose of it as required by local ordinances or regulations.

  • Page 6: Safety Instructions

    Safety Instructions Safety Instructions General Recommendations Read the safety and operating instructions before operating the display. Retain safety and operating instructions for future reference. Adhere to all warnings on the display and in the operating instructions manual. Follow all instructions for operation and use. Electrical shock Type of protection (electrical): Class I equipment...
  • Page 7 Safety Instructions • Power cords: Power cord with CEE 7 plug: The colors of the mains lead are colored in accordance with the following code: Green-and- yellow: Earth (safety earth), Blue: Neutral, Brown: Line Power cord with ANSI 73.11 plug: The wires of the power cord are colored in accordance with the following code: Green/yellow: ground, White: neutral, Black: line (live) •...
  • Page 8 Safety Instructions This apparatus conforms to: CE, IEC 60950, UL 60950, CAN/CSA C22.2 No. 60950 (c-UL), CCC. National Scandinavian Deviations for Cl. 1.7.2 : Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan" Norway: "Apparatet må tilkoples jordet stikkontakt" Sweden: "Apparaten skall anslutas till jordat uttag" Operating precautions Continuous operation of the display with the same screen may result in some image sticking on the LCD panel.

  • Page 9: Table Of Contents

    How to avoid image retention ............31 Software Installation ..............33 Installing the B display controller drivers and software.. ARCO Display Controller Tools ............41 BarcoMed control panel settings ............45 Accessing the Barco tab ............. 45 Advanced Properties ..............47 Device details ................50...
  • Page 10 Display Operation ..............51 Operation ................... 53 Switching to stand-by position..........53 Controlling the display ............... 53 Setting the Luminance value............. 55 Settings ..................55 Getting information..............56 Advanced functions ................58 About this chapter..............58 Advanced functions in the Luminance menu ......59 Advanced functions in the Settings menu........

  • Page 11: Display Controller Installation

    Display Controller Installation...
  • Page 12 Display Controller Installation (This page intentionally left blank.)

  • Page 13: Barcomed Coronis Display Controller Overview

    BarcoMed C display controller overview ORONIS BarcoMed C display controller overview ORONIS The BarcoMed C display controller delivers a quality image ORONIS with 1024 simultaneous shades of gray for medical viewing applications. Minimum system requirements • Pentium II 266 MHz with 128 MB RAM (Pentium II 800MHz with 256 MB RAM for cineloops) Important: Other hardware and software installed in the system may require more system memory for best...
  • Page 14 ORONIS Supported resolutions for each head of the BarcoMed C display ORONIS controller For Coronis 3MP Displays • 1536 x 2048 @ 60 HZ (primary) • 2048 x 1536 @ 60 Hz For all BarcoMed C display controllers ORONIS The following resolution is also available when the OS is booted in VGA mode.

  • Page 15: Barcomed Coronis Display Controller Installation

    BarcoMed C display controller installation ORONIS BarcoMed C display controller installation ORONIS Caution: Wear a grounded, protective ESD strap during installation or handling of the display controller. Electrostatic charges can damage the display controller. Prior to installing your BarcoMed C display controller(s) in ORONIS your PC please take a few minutes to familiarize yourself with...
  • Page 16 BarcoMed C display controller installation ORONIS Figure 2: VGA Jumper Enlarged View Using the VGA capabilities of the BarcoMed C ORONIS Prior to installing the BarcoMed C , decide if you are going ORONIS to use its on-board VGA capabilities. If you are, check the setting of the Jumper at J-1 on the display controller (see figure 2 VGA Jumper Enlarged View).
  • Page 17 BarcoMed C display controller installation ORONIS Figure 3: PCI and RAID Controller Slots Install the BarcoMed C controller in your computer ORONIS following these steps: 1. Turn off the power to your computer and disconnect the power cord, however make sure that the computer chassis is still grounded.
  • Page 18 BarcoMed C display controller installation ORONIS below) using the provided DVI cable. For a dual-headed BarcoMed C setup, connect the secondary display to ORONIS the other connector on the display controller. 7. Replace the chassis cover, reconnect the power cord, turn on the power, and boot the system as usual.

  • Page 19: Display Installation

    Display Installation...
  • Page 20 Display Installation (This page intentionally left blank.)

  • Page 21: Overview

    Overview Overview Introduction The MFGD 3420, BARCO’s 20” 3 megapixel grayscale LCD display, guarantees perfect image quality in medical imaging applications. The display combines a TFT (thin film transistor) liquid crystal display panel structure and a built-in backlight with inverter for a better picture quality.

  • Page 22: Package Contents

    Overview Power saving (DPMS) The MFGD 3420 is equipped with a power saving system. When left idle for a certain time, the computer connected to the display, will power down the display. The power saving system can be switched on or off using the on-screen menus. This system requires a computer imaging board that supports power saving management.

  • Page 23: Controls And Connectors

    Overview Controls and connectors Figure 5 Front (1) Power LED • The LED is off when the display is off. • The LED is green when the display is on (when enabled in the on-screen menus). • The LED is orange when the display is in Stand-by power- saving mode.
  • Page 24 Overview Figure 6 Side (2) USB downstream connector (3) Control wheel for navigating through the on-screen display (OSD) menus and changing values in the menus Figure 7 Rear (4) USB downstream connector (5) USB upstream connector (6) Digital DVI (video and data) input (7) DC 12V power input...

  • Page 25: Installation

    Installation Installation Precautions • Keep your original packaging. It is designed for this display and is the ideal protection during transport. • Avoid reflections in the flat panel to reduce eye strain. • Place the display on a strong and stable table or desk. •...

  • Page 26: Portrait Or Landscape Position

    Installation To remove the clip: 1. Position the display with its rear side facing you. 2. Lift up the 2 clips of the foot cover to release the cover from the foot. 3. Pull the lower side of the cover towards you and simultaneously slide the cover downward.

  • Page 27: Connecting The Cables

    Installation Figure 9 Should you change the panel orientation without tilting it first, you might irreversibly damage the tilt & swivel mechanism. 3. To change from portrait to landscape, turn the panel counterclockwise while tilting it slightly. 4. To change from landscape to portrait, turn clockwise. Connecting the cables To get access to the connectors, open the cover of the connector compartment by pulling down the 2 clips of the cover.

  • Page 28: Routing The Signal Cables

    Installation To connect the power: Connect to DC input Connect one end of of the display power cable Figure 10 1. Connect the output of the 12V DC power supply to the DC input (7) of the display. 2. Connect one end of the proper power cable to the AC input of the 12V DC power supply.

  • Page 29: Using The Usb Hub

    Installation Connector compartment Push the upper side of Signal cables routed under foot the cover onto the foot cover Figure 11 1. Push the upper side of the cover onto the foot, so that the hooks on the cover are positioned right under the holes in the foot.

  • Page 30: Tilt And Swivel Positioning

    Installation Tilt and swivel positioning Adjust the position of the panel for best viewing conditions. The display foot allows adjusting the horizontal viewing angle, vertical viewing angle and panel height. Figure 12 Starting up Proceed as follows: 1. Switch on the signal source (E.g., PC). 2.

  • Page 31: How To Avoid Image Retention

    How to avoid image retention How to avoid image retention Image retention (image sticking, ghost image) is the phenomenon where an image, or a part of it, seems to be ‘burnt’ in the LCD panel. When you display e.g. a uniform light gray image you distinguish the ghost image in the background.
  • Page 32 How to avoid image retention To activate appropriate screen saving, proceed as follows: In the display OSD menus, open the Settings menu and switch DPMS on. For more information, please consult the display operation chapter. In Windows, open the Display control panel. Open the Screen Saver tab.

  • Page 33: Software Installation

    Software Installation...
  • Page 34 Software Installation (This page intentionally left blank.)

  • Page 35: Installing The B

    Barco System CD-ROM into your CD drive after the operating system has started. If your CD drive’s auto-run is not enabled or the Barco Product Installation Wizard does not start automatically, you can run the Barco Product Installation Wizard manually by following these steps: a) Click the Start button in the task bar.
  • Page 36 Next to accept the default settings or if you know the settings required for your viewing application, you may select them now and then click Next. You may change these settings later by using the Barco pages of the Windows Display Control Panel. Figure 1...
  • Page 37 If the Barco Monitor Plug and Play Software fails to detect your Barco displays or fails to attach them to the desktop correctly please refer to the section, Setting the resolution of...
  • Page 38 ARCO EDICAL MAGING ISPLAY YSTEM your CD/DVD drive. When the Barco Product Installation Wizard starts click “Cancel”. 2. Click the Start button in the task bar. 3. Click Run. 4. Click Browse and a) browse to the root directory of the B...
  • Page 39 See figure 2 for an example of how the command line window should look when using the silent install from the CD-ROM. ARCO EDICAL MAGING ISPLAY YSTEM Figure 2...
  • Page 40 Single Source Master...

  • Page 41: Display Controller Tools

    Display Controller Tools...
  • Page 42 Display Controller Tools (This page intentionally left blank.)
  • Page 43 BarcoMed Control Panel Settings...
  • Page 44 Single Source Master (This page intentionally left blank.) (This page intentionally left blank.)

  • Page 45: Barcomed Control Panel Settings

    Accessing the Barco tab You must have logged on to Windows using an account Note: with administrator privileges in order to use the Barco portions of the “Windows Display Control Panel” to change any display settings. 1. Open the “Windows Display Control Panel” by one of the two methods below: a) Start >...
  • Page 46 BarcoMed control panel settings Single Source Master installed on your system. Also, there is a active link to the Barco Medical Imaging web site. Figure 1 Barco Tab Barco System Report The Barco System Report, also known as BarcoMed SelfExam, is a wizard based tool which collects data about the components that are installed in your system.

  • Page 47: Advanced Properties

    Advanced Properties To access the advanced properties configuration pages for your Barco display controller(s), click on the Advanced button in the Graphics Device Information section. BarcoMed advanced configuration There are two pages accessible from the advanced configuration button. They are: •...
  • Page 48 BarcoMed control panel settings Single Source Master correctly with 8-bit (256-color) modes should continue to work normally. Ditherng is not used while in this mode. Also, direct access Note: to the hardware through DirectDraw is not allowed in this mode. User Modifiable Color Palette This option allows applications to modify the palette contents dynamically.
  • Page 49 Windows graphics device interface (GDI). DirectDraw is enabled by default. More information about DirectDraw is available through the on- line help. Enable Dithering This option allows the user to enable or disable dithering. Dithering is a technique for increasing the perceived range of colors in an image at the cost of spatial resolution.

  • Page 50: Device Details

    The user will be prompted to select a firmware update file to use for the update process. This file will be provided by Barco Medical Imaging if and when a firmware update is required.

  • Page 51: Display Operation

    Display Operation...
  • Page 52 Display Operation (This page intentionally left blank.)

  • Page 53: Operation

    Operation Operation Operating precautions Continuous operation of the display with the same screen may result in some image sticking on the LCD panel. Over 10 hours operation with the same image content is not recommended. Switching on the display DPMS may decrease the risk of image sticking (image retention).
  • Page 54 Operation The Main Menu appears. This is the top level of the menu system. MFGD 3420 MAIN MENU Luminance Settings Information EXIT • To browse or scroll through the menus on the current level, turn the wheel clockwise or counterclockwise. •...

  • Page 55: Setting The Luminance Value

    Operation Saving changes When you change a value, the change is automatically saved. Setting the Luminance value With this function, the backlight value is stabilized by the I-Guard sensor. The value you enter is the target backlight luminance, expressed in Cd/m². Proceed as follows: 1.

  • Page 56: Getting Information

    Operation 3. Turn the wheel to select the desired menu item. 4. Perform the settings as described below. The Settings menu contains the following items: DPMS Click the control wheel to switch on/off the automatic power saving system (DPMS) Power LED Click to switch the power LED on/ off.
  • Page 57 Operation To enter the Information menu: 1. In the main menu, turn the control wheel to select the Information menu. MFGD 3420 MAIN MENU Luminance Settings Information EXIT 2. Click the control wheel. The Information menu appears. You can select to view General information or Current Input Format information.

  • Page 58: Advanced Functions

    Important The functions described in this chapter are intended for trained service staff only! Improper use of these functions may disorder the display. BARCO cannot be held responsible for the results or damage caused by improper use of these functions.

  • Page 59: Advanced Functions In The Luminance Menu

    Advanced functions 3. Click and hold the control wheel for a few seconds until the OSD main menu is refreshed on the screen. MFGD 3420 MAIN MENU Luminance Settings Information Adjustments EXIT You have now logged in as advanced user. Advanced functions in the Luminance menu The Luminance menu contains the following advanced function: Manual Backlight...

  • Page 60: Advanced Functions In The Settings Menu

    Advanced functions Advanced functions in the Settings menu The Settings menu contains the following advanced functions: Panel position Click to select the desired option: • Auto: Select if the display will be used in both portrait and landscape orientation. • Portrait: Select if the display is always used in portrait orientation.
  • Page 61 Advanced functions Service The Service information menu contains the following items: Display Name The display type Display Ser No Indicates the display serial number Display Stock No Indicates the display order number Panel Ser No Indicates the flat panel serial number Panel Prod Date Indicates the flat panel production date Firmware...
  • Page 62 Advanced functions Measurements The Measurements info menu contains the following items: Internal Temperature The temperature measured inside the dis- play Sensor Temperature The internal temperature measured on the I-Guard board FAN speed A value indicating the speed of the fans. Minimum speed is 0, maximum speed is 1000 Sensor Y value...

  • Page 63: Advanced Functions In The Adjustments Menu

    Advanced functions Vert.Total: The total number of lines, vertically, of the input signal Vert.Active: The number of active lines, vertically, of the input signal Vert.Blanking: The vertical blanking of the input signal Vert.Front Porch: The vertical front porch of the input signal Vert.Sync: The vertical sync length of the input signal Vert.Back Porch:...

  • Page 64: Maintenance

    It may be possible that dust particles have entered the display and are stuck to the rear of the glass. We recommend to let this cleaning procedure be done in a Barco service center. However, when really necessary, you can perform the cleaning on site if you can work in conditions that are as clean and dust- free as possible.
  • Page 65 Maintenance 3. Unscrew the 4 sunken screws at the rear, fixing the glass panel and bezel. 4. Unplug the cable plugged in on the bezel. 5. Remove the bezel with glass panel. Cleaning instructions: • Dust, fingerprints, grease etc. can be removed by using a soft damp cloth lightly moistened with plain water.

  • Page 66: Troubleshooting

    Troubleshooting Troubleshooting Windows does not show the desired display settings Should you have problems selecting display settings for portrait oriented displays in the Windows Display Properties control panel, disable the option Hide modes that this monitor cannot display in the control panel (see below). Figure 3 Information: The display contains a special memory chip that contains...

  • Page 67: Pixel Faults

    Troubleshooting Pixel Faults Permanently dark or bright pixels can happen to TFT displays. 20 or less permanently dead pixels do not make out a good case for exchanging the unit. Please contact our Customer Service Department if the number of pixel faults exceeds the above-mentioned figure.

  • Page 68: Technical Specifications

    Technical specifications Technical specifications Picture panel 20.8-inch diagonal viewable screen TFT (thin film transistor) active matrix, greyscale liquid crystal display Resolution Native: 2048 x 1536 Other VESA resolutions possible, not scaled Display area (H x V) 423.9 x 318 (mm) Pixel Pitch 0.207 mm (H) x 0.207 mm (V) Viewing angle (@ 10/1 contrast)
  • Page 69 Technical specifications Response time 25 ms (@ 25° C after 30 min warmup) Controls Push / turn control wheel for stand-by switching and brightness control Input connectors DVI dual channel Power source Input for 12 VDC power supply unit: 90 ~ 264 VAC Input for display: 12 VDC.
  • Page 70 Storage: 5% - 95% Due to our policy of continuous product improvement, the above specifications are subjected to change without notice. Barco shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or conse- quential damages whatsoever resulting from furnishing, performance or use of this material.

  • Page 71: Medical Software

    MediCal Software Installation and Operation...
  • Page 72 MediCal Software Installation and Operation (This page intentionally left blank.)

  • Page 73: Medical Pro Installation And Operation

    MediCal Pro installation and operation MediCal Pro installation and operation MediCal Pro software installation Install MediCal Pro on the PC. Follow the instructions from the MediCal Pro User Guide. Important: Do not forget you have to have Administrator privileges to install or uninstall MediCal Pro. Using MediCal Pro You can now use MediCal Pro to configure the complete configuration and set up the Q/A tasks.
  • Page 74 MediCal Pro installation and operation 8. Run the due tasks. Please refer to the MediCal Pro User Guide for more information.

  • Page 75: Troubleshooting

    Troubleshooting...
  • Page 76 Troubleshooting (This page intentionally left blank.)
  • Page 77 “Properties”. 2. Click on the “Settings” tab. 3. Select the rectangle that represents the Barco Coronis display whose settings you wish to change. If you are using the VGA capabilities of your...
  • Page 78 5. Select the “Adapter” tab and then click on the “List All Modes” button. Select the resolution and refresh rate that your Coronis 3MP display supports from the dialog box and click “OK”. In the Adapter box, the Adapter string shows if this...
  • Page 79 If you are using a Quad-Head Configuration repeat all of the above steps for the two displays on the second display controller. Note: If you have a single display configuration and you have enabled DualView, Windows will not allow you to attach the second head.
