Chapter 6: Data Details Tables
After uploading data from the PowerMaster  you can view the RF ID numbers of all
enrolled devices. The received signal strength indication (RSSI) of the device can
also be viewed after pressing on the UL Table icon and then pressing "OK".
In the PowerG version, zone monitoring and configuration can be set up in
separate tables dedicated to monitoring Motion, Contact, Smoke, Camera, Flood,
Gas, Hard Wired Devices, and Temperature.

6.18 Zone Status/Trouble

This table is applicable to the PowerG models.
The Zone Status/Trouble screen displays diagnostic information for all zones that
are set up, equipped, and monitored on the premises. A Yes indication alerts that a
condition exists that needs checking. A No indication means that the condition is
normal.
 Available in PowerMaster models only
40

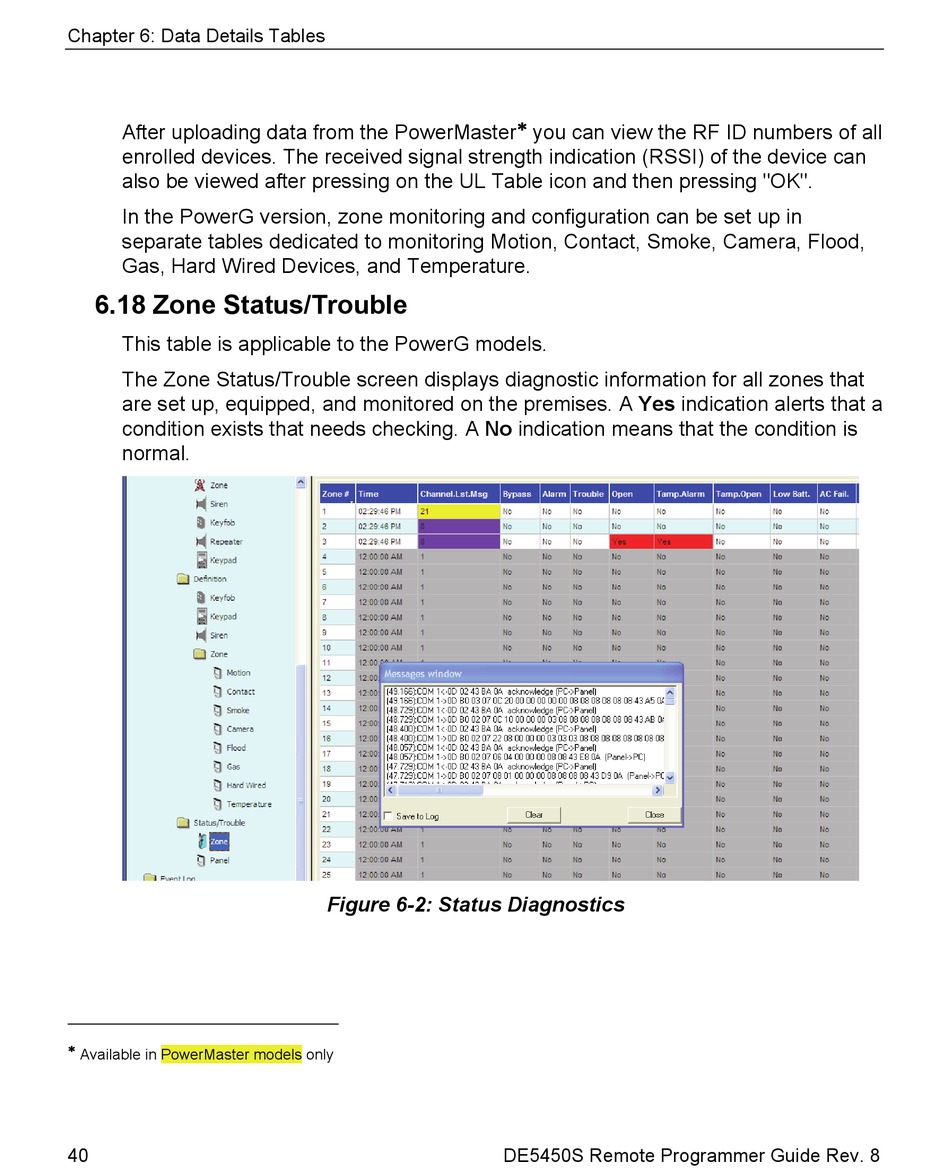

Figure 6-2: Status Diagnostics
DE5450S Remote Programmer Guide Rev. 8
