Remote Programmer Main Window - Visonic Remote Programmer Software User Manual

2.4 Remote Programmer Main Window

The Remote Programmer main window displays all the main features of Remote
Programmer. This enables you to manage the PowerMax/PowerMaster alarm
system easily and efficiently.
Title bar
Menu bar
Tool bar
List of
Tables

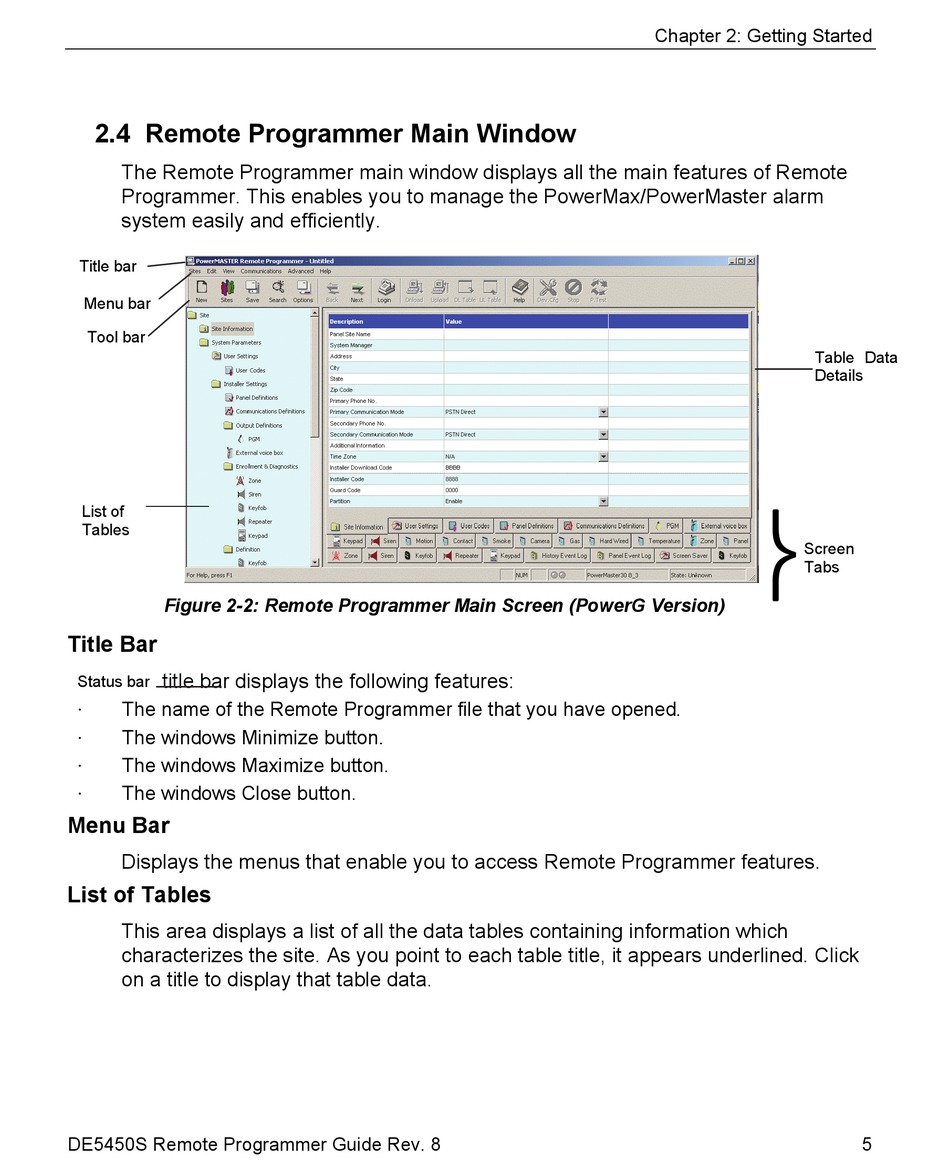

Figure 2-2: Remote Programmer Main Screen (PowerG Version)
Title Bar
The title bar displays the following features:
Status bar
· The name of the Remote Programmer file that you have opened.
· The windows Minimize button.
· The windows Maximize button.
· The windows Close button.
Menu Bar
Displays the menus that enable you to access Remote Programmer features.
List of Tables
This area displays a list of all the data tables containing information which
characterizes the site. As you point to each table title, it appears underlined. Click
on a title to display that table data.
DE5450S Remote Programmer Guide Rev. 8
Chapter 2: Getting Started
Table Data
Details

Screen
Tabs
5
