Chapter 7: Connecting to the Control Panel
To Download or Upload a Specific Table
Note: Uploading a specific table is available in PowerMax+ only.
1.
Select a table by clicking on a table name in the List of Tables area, or by
clicking a table tab at the bottom of the screen.
2.
From the Communications menu, select Download Table or Upload
Table.
Note: Select the Data tab in Options, to determine whether changes will be
downloaded immediately, as they are made, or only when the download command
is chosen.
To Update System Time & Date
1.
From the Communications menu, select Change System Time & Date;
the Change system time & date dialog box appears.
2.
In the Current date edit box, type the date. Use the format according to
the current date settings.
3.
In the Current time edit box, type the time. Use either the 12 or 24 hour
clock format according to the current time settings.
4.
Click Send; Remote Programmer saves the modified date and time, and
updates the Control Panel.
56

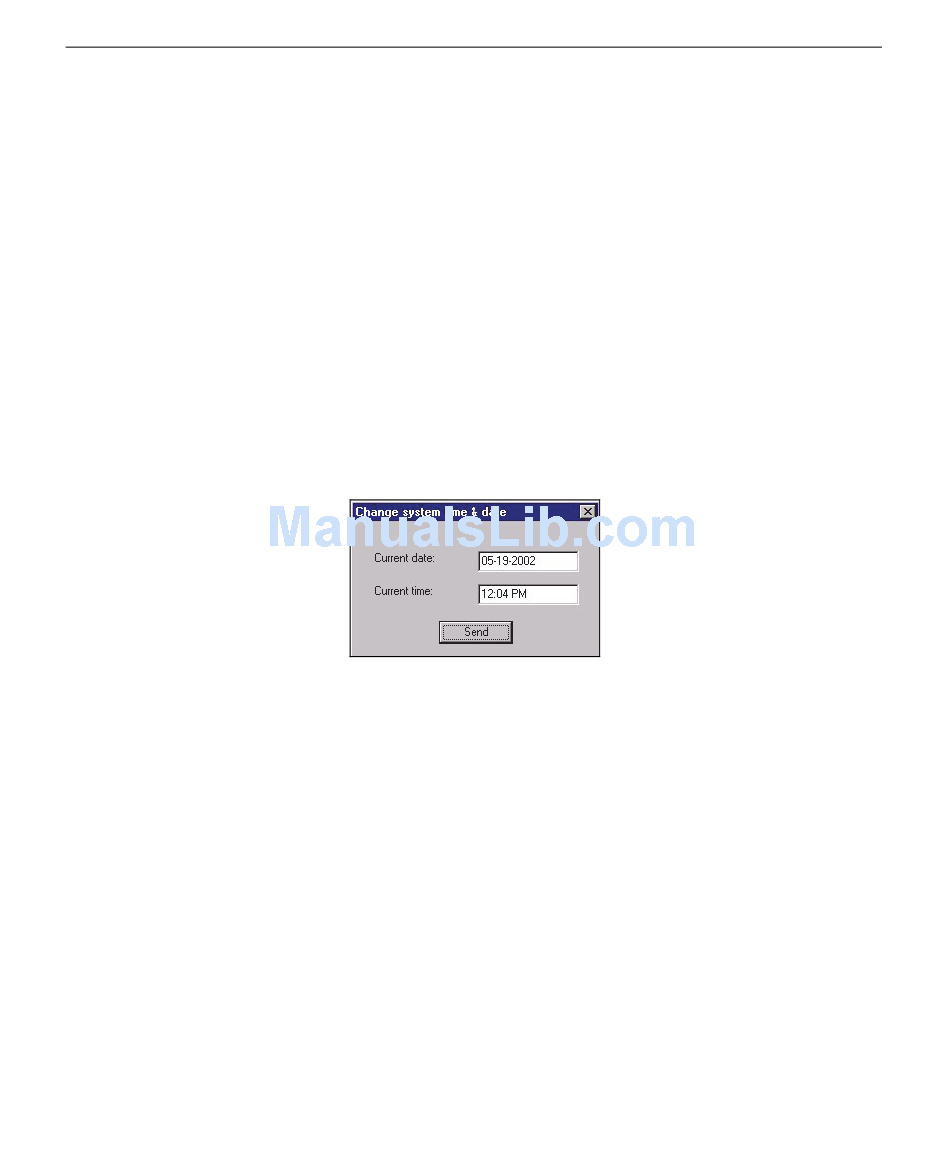

Figure 7-10: System Time & Date Window
DE5450S Remote Programmer Guide Rev. 8
