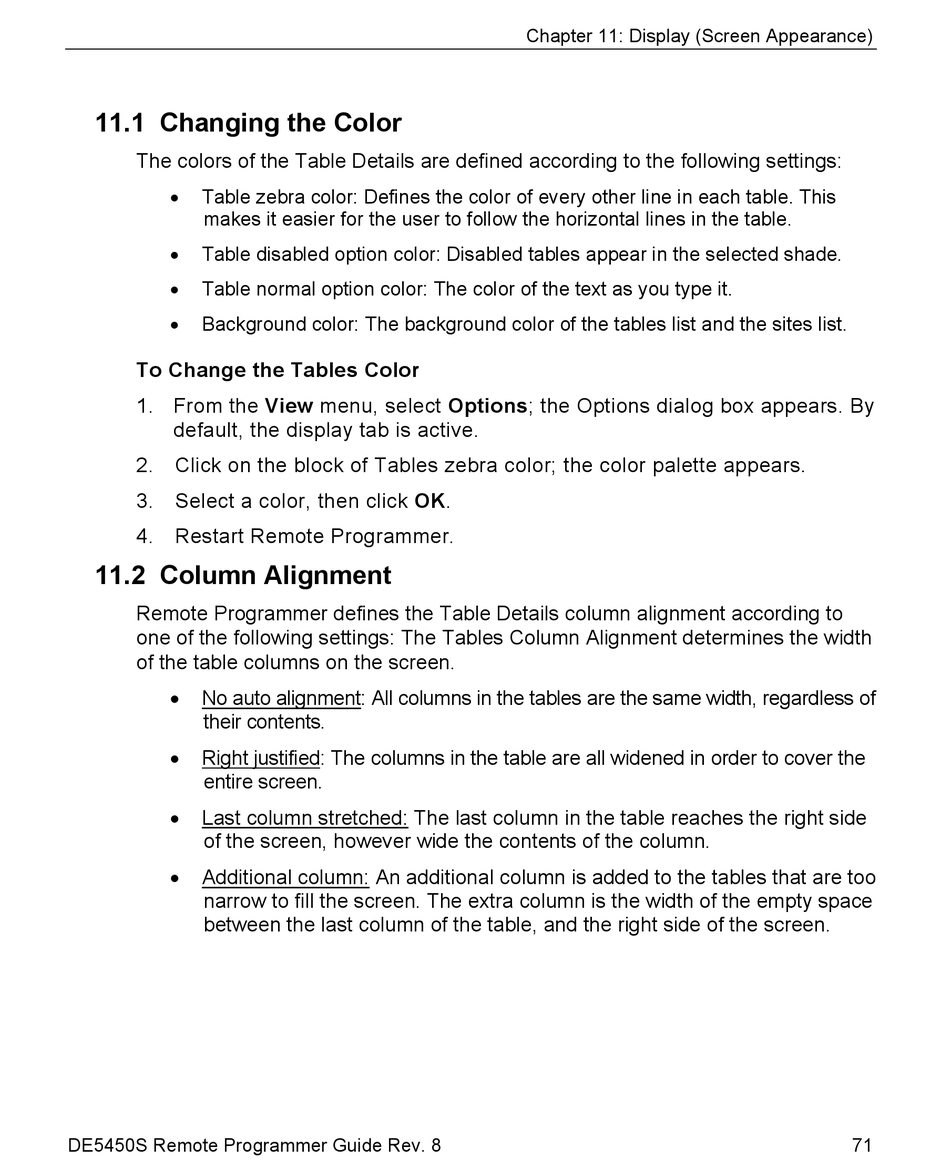

Changing The Color; Column Alignment - Visonic Remote Programmer Software User Manual

11.1 Changing the Color

The colors of the Table Details are defined according to the following settings:

Table zebra color: Defines the color of every other line in each table. This
makes it easier for the user to follow the horizontal lines in the table.

Table disabled option color: Disabled tables appear in the selected shade.

Table normal option color: The color of the text as you type it.

Background color: The background color of the tables list and the sites list.
To Change the Tables Color
1. From the View menu, select Options; the Options dialog box appears. By
default, the display tab is active.
2. Click on the block of Tables zebra color; the color palette appears.
3. Select a color, then click OK.
4. Restart Remote Programmer.

11.2 Column Alignment

Remote Programmer defines the Table Details column alignment according to
one of the following settings: The Tables Column Alignment determines the width
of the table columns on the screen.

No auto alignment: All columns in the tables are the same width, regardless of
their contents.

Right justified: The columns in the table are all widened in order to cover the
entire screen.

Last column stretched: The last column in the table reaches the right side
of the screen, however wide the contents of the column.

Additional column: An additional column is added to the tables that are too
narrow to fill the screen. The extra column is the width of the empty space
between the last column of the table, and the right side of the screen.
DE5450S Remote Programmer Guide Rev. 8
Chapter 11: Display (Screen Appearance)
71
