Working Offline
Work Offline only if you know the panel model you want to connect to.
1.
Select the Work Offline tab. The following screen will be displayed:
2.
Select the relevant panel model.
Note: The Work Offline dialog box first lists all existing
PowerMax/PowerMaster models. Select each model you do not require
and click the Remove button to delete the model from the list. To reset
the list, click the Load button.
3.
Click OK.
The Remote Programmer main screen will appear and the table data details will
include the parameters relevant for the selected model.
4.3 Saving a Site
From the Sites menu, select Save, or click the Save button on the toolbar; Remote
Programmer automatically saves the site file on which you are working.
When you select Save or click the Save button for the first time after creating a
new site file, the Save As screen prompts you to provide a new site file name.
DE5450S Remote Programmer Guide Rev. 8

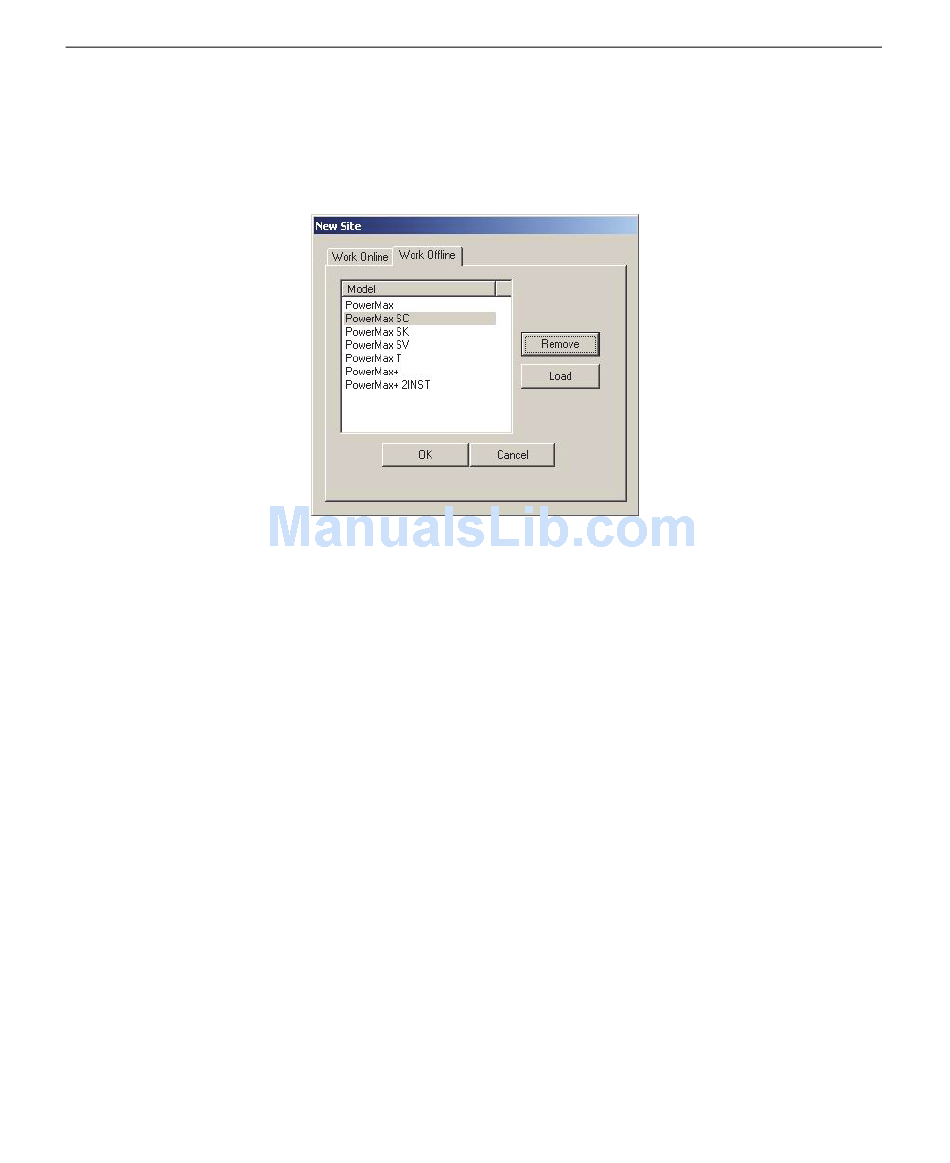

Figure 4-12: New Site Window - Work Offline
Chapter 4: Sites
21
