Chapter 4: Sites

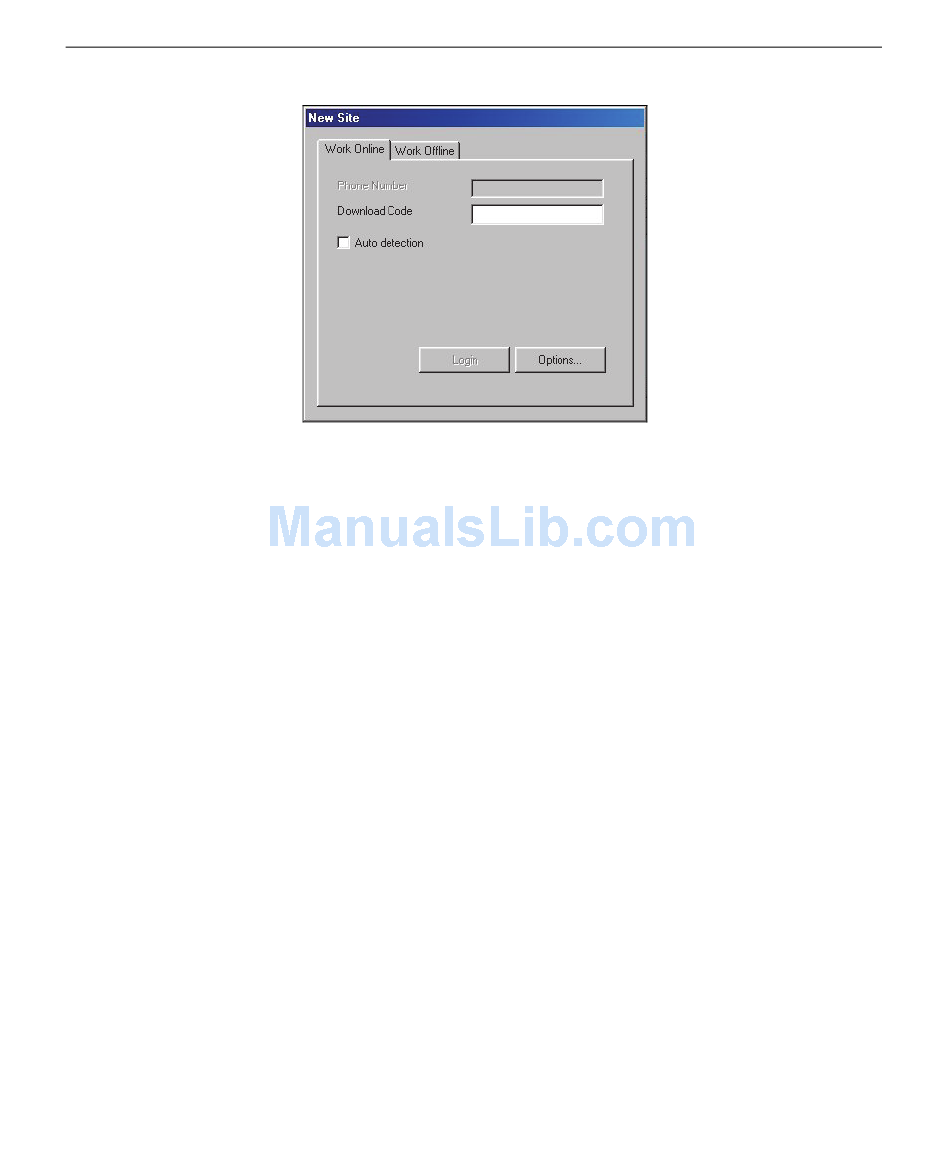

Figure 4-8: New Site Window - Work Online via a Serial Port
4.
Enter the download code located in the control panel (for further details,
see relevant PowerMax or PowerMaster User Guide). The Login button
will become enabled.
5.
Check the Auto Detection checkbox if you want the program to
automatically scan the computer ports to detect PowerMax/PowerMaster
presence.
Caution! For local download, the panel must be set to the installer mode,
otherwise the software will not detect it (not applicable to PowerMax+).
6.
Click Login.
7.
If you marked the Auto Detection checkbox, the program will start
scanning the different ports to look for a PowerMax/PowerMaster and will
then connect to the panel and verify the download code.
If you did not mark the auto detection checkbox, the program will try to
connect to the panel via the serial port defined in the Communications
settings.
18
DE5450S Remote Programmer Guide Rev. 8
