Hardware Installation

2.3.11 Keyboard

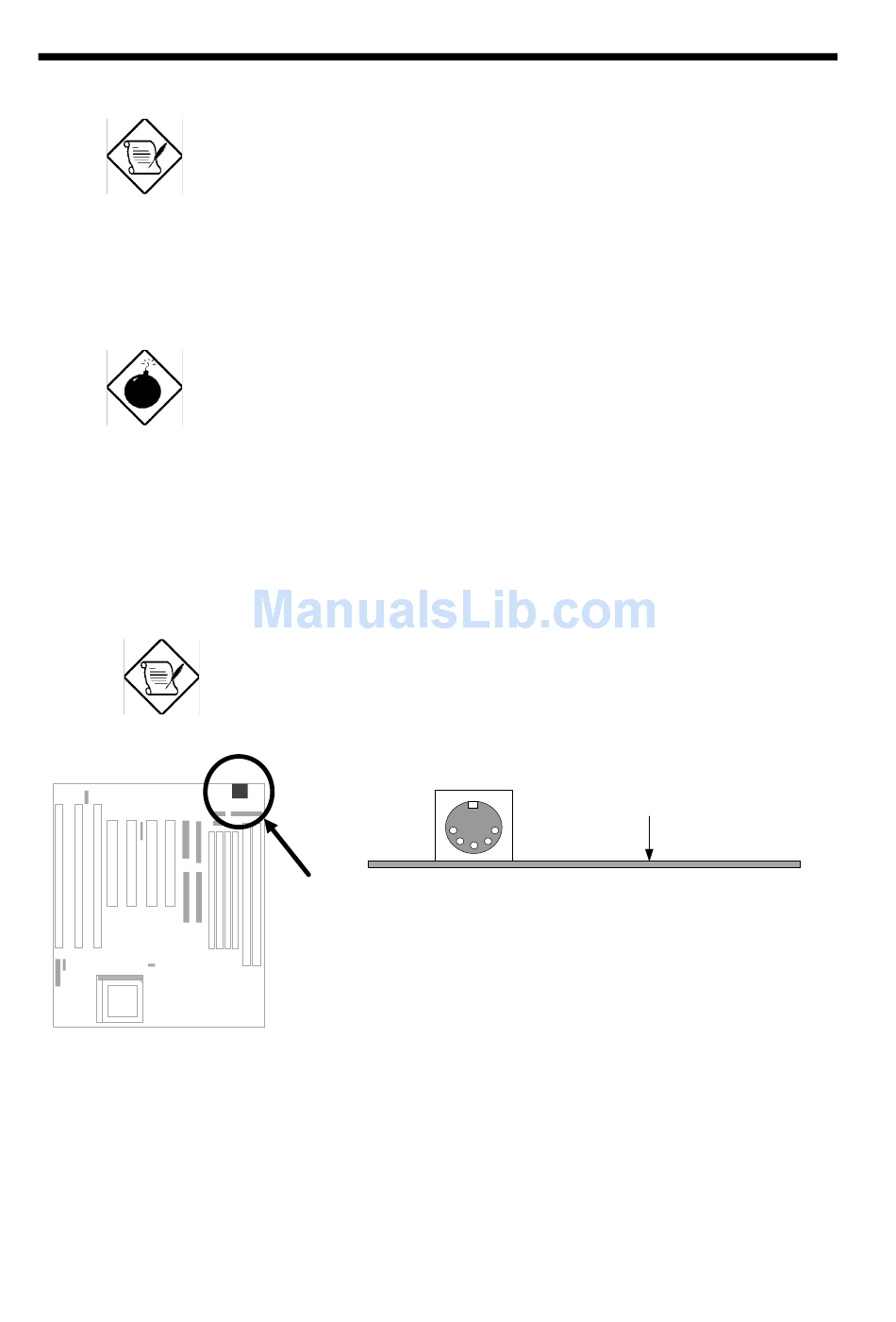

The onboard keyboard connector is a five-pin AT-compatible connector marked as
KB1. The view angle of drawing shown here is from back panel of the housing.
2-20
Note: If your housing comes with a Turbo switch, you
may use this connector for Suspend switch function.
Note: Pressing the Suspend switch allows you to
manually force
However, this is possible only if the Power
Management function in the BIOS Setup menu is
enabled.
Warning: If you use toggle mode Turbo switch as
Suspend switch, be sure to push it twice to simulate
momentary mode. Otherwise the system may hang or
fail to reboot.
Note: The mini DIN PS/2 keyboard connector
is optional.
the system to suspend mode.
KB1
PCB
