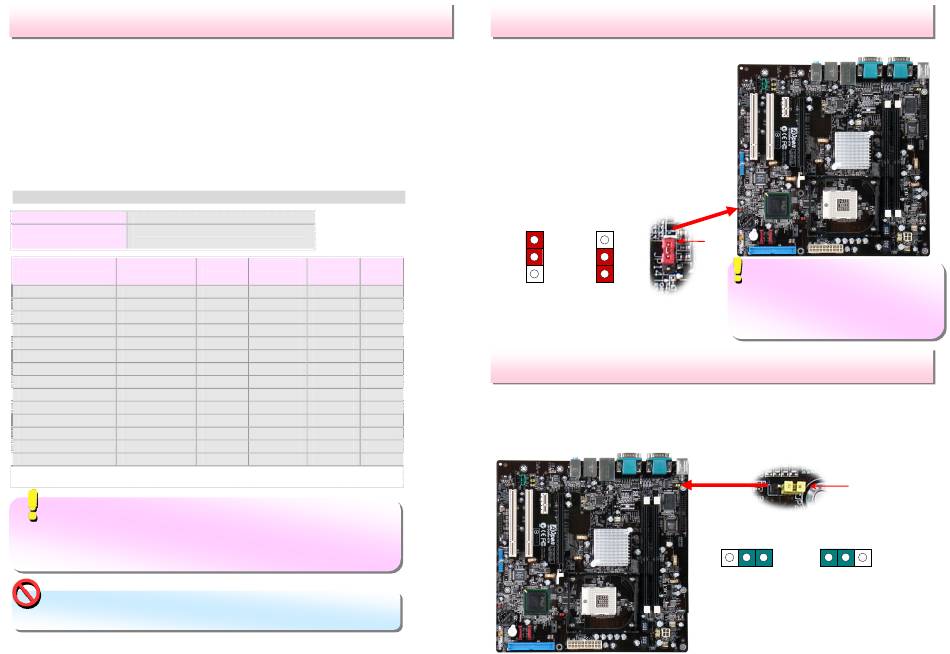

Setting CPU Voltage & Frequency
Setting CPU Core Voltage
This motherboard supports Voltage ID (VID) function to detect CPU voltage
automatically during power-on.
Setting CPU Frequency
This motherboard is CPU jumper-less design, you can set CPU frequency through
1MHz stepping CPU Overclocking in the BIOS. CPU Core Frequency = CPU external
frequency x CPU Ratio. However, all CPU now selling in the market belong to "Fixed
Multiplier". That means users can not adjust the CPU Ratio but only change CPU
FSB clock to achieve overclocking.
(Users do the overclocking at their own risk!!)
BIOS Setup > Frequency / Voltage Control > CPU Bus Frequency
CPU Ratio 4x, 5x... 17x, 18x, 20x
CPU FSB FSB = 400MHz - 533MHz by 1MHz
(Adjustment manually) Stepping CPU Overclocking
Processor
Architecture
Number
Pentium M 770 90nm
Pentium M 760 90nm
Pentium M 750 90nm
Pentium M 740 90nm
Pentium M 730 90nm
Pentium M 765 90nm
Pentium M 755 90nm
Pentium M 745 90nm
Pentium M 735 90nm
Pentium M 725 90nm
Pentium M 715 90nm
Celeron M 370 90nm
Celeron M 360 90nm
Celeron M 350 90nm
Note: With CPU speed changing rapidly, there might be faster CPU on the market by the time
you received this installation guide. This table is kindly for your references only.
Tip: When you fail to overclock, you could:
1. Clear CMOS (JP14) to restore the default setting.
2. After turning power on, press "Home" immediately until the screen
appears.
Warning: Intel 915GM chipset support maximum 533MHz (133MHz*4)
system bus; higher clock setting may cause serious system damage.
Clock Front
Cache Ratio
Speed Side Bus
2.13GHz 533MHz 2MB L2 16x
2.00GHz 533MHz 2MB L2 15x
1.86GHz 533MHz 2MB L2 14x
1.73GHz 533MHz 2MB L2 13x
1.60GHz 533MHz 2MB L2 12x
2.10GHz 400MHz 2MB L2 21x
2.00GHz 400MHz 2MB L2 20x
1.80GHz 400MHz 2MB L2 18x
1.70GHz 400MHz 2MB L2 17x
1.60GHz 400MHz 2MB L2 16x
1.50GHz 400MHz 2MB L2 15x
1.50GHz 400MHz 1MB L2 15x
1.40GHz 400MHz 1MB L2 14x
1.30GHz 400MHz 1MB L2 13x
JP14 Clear CMOS
You can clear CMOS to restore system default setting. To clear the CMOS, follow
the procedure below.
1. Turn off the system and unplug the
AC power.
2. Remove ATX power cable from
connector PWR2.
3. Locate JP14 and short pins 2-3 for a
few seconds.
4. Return JP14 to its normal setting by
shorting pin 1 & pin 2.
5. Connect ATX power cable back to
connector PWR2.
1 1
Normal Clear CMOS
(Default)
JP14 Clear CMOS Jumper

JP28 Keyboard/Mouse Wakeup Jumper

This motherboard provides keyboard / mouse wake-up function. You can use JP28
to enable or disable this function, which could resume your system from suspend
mode with keyboard or mouse. The factory default setting is "Disable" (1-2), and
you may enable this function by setting the jumper to 2-3.
Pin 1
Tip: When should I Clear CMOS?
1. Boot fails because of overclocking...
2. Forget password...
3. Troubleshooting...
Pin 1
1 1
Disabled Enabled
(Default)
JP28 PS2 KB/Mouse
Wakeup Jumper
