2.3.10 Panel Connector
The Panel (multifunction) connector is a 20-
pin connector marked as PANEL on the
board.
Attach the power LED, keylock,
speaker, reset switch, suspend switch, and
green
mode
LED

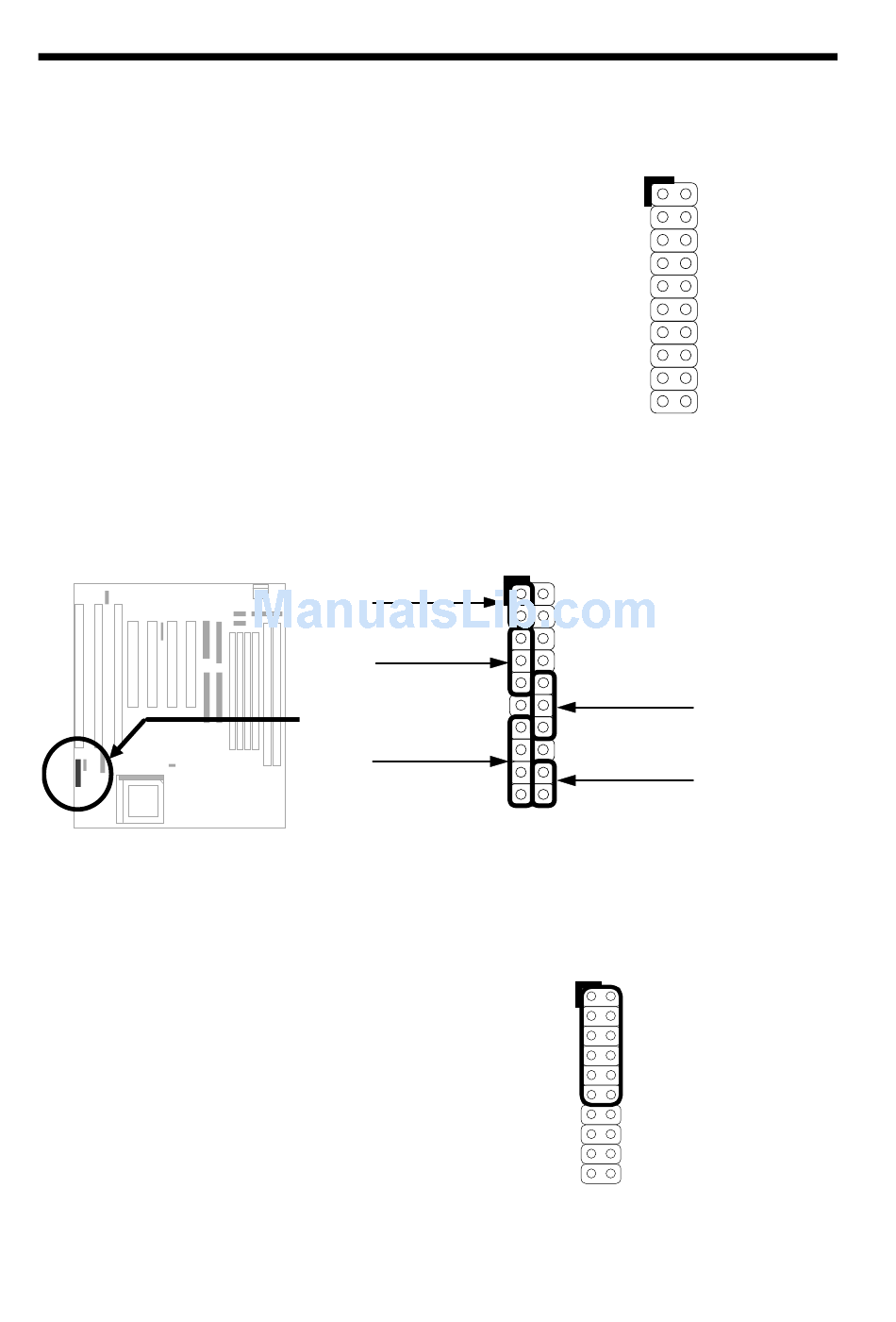

corresponding pins as shown in the figure.
Some housings have a five-pin connector for
the keylock and power LED Since power
LED and keylock are aligned together, you
can still use this kind of connector.
Other housings may have a 12-pin
connector.
If your housing has this
type of connector, connect it to PANEL
as shown in the figure. Make sure that
the red wire of the connector is
connected to +5V.
connectors
to
Keylock
Power LED
Speaker
Hardware Installation
GND
KEYLOCK
GND
the
RESET
POWER LED
SPEAKER
+5V
GND
NC
SPEAKER
1
11
+
+
+
Suspend SW
+
+
Reset
10 20
PANEL
1
11
10 20
PANEL
1
11
+5V
GND
GREEN LED
GND
SUSPEND SW
SUSPEND SW
GND
NC
RESET
GND
10 20
PANEL
+5V
2-19
