2.3.13 SB-LINK

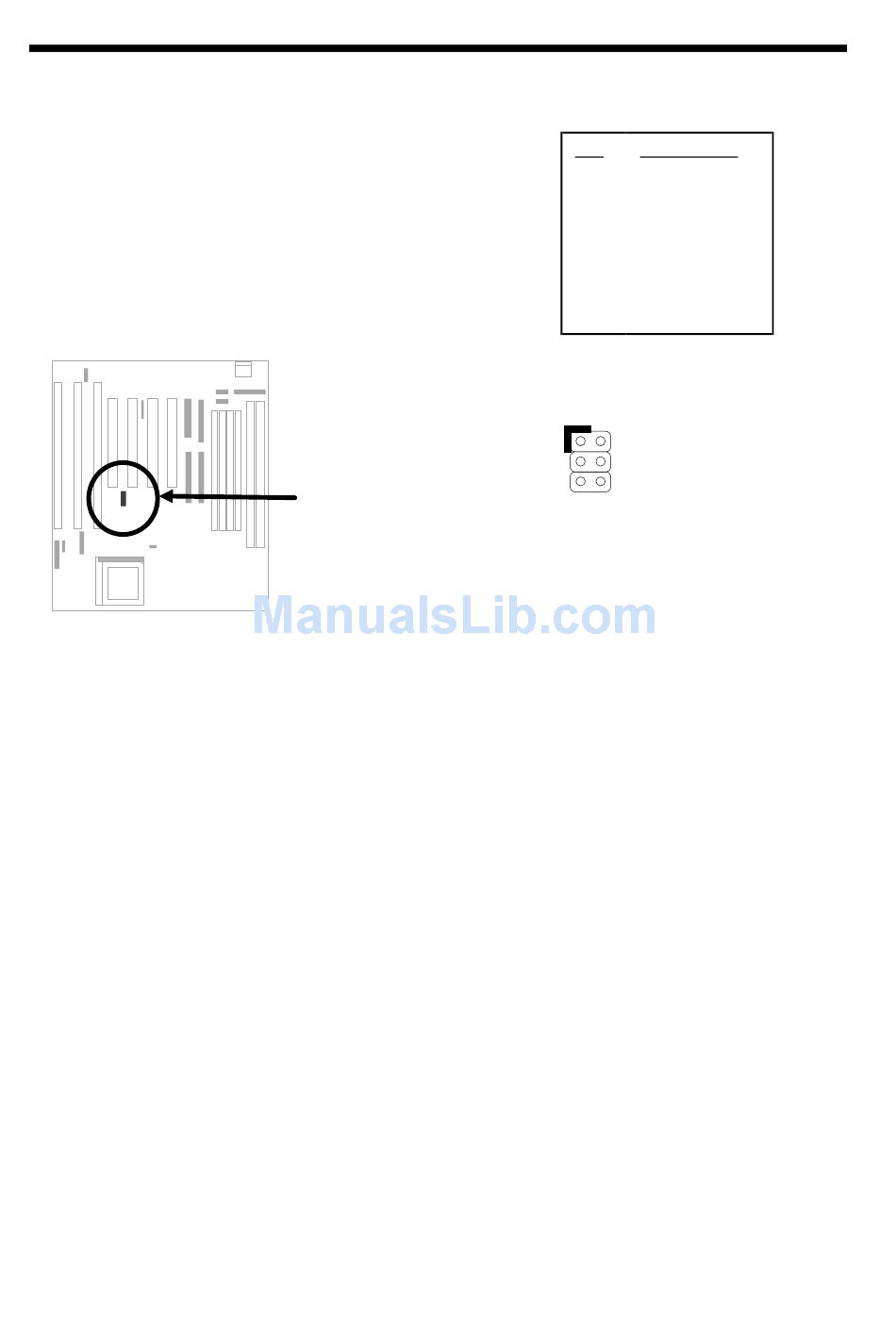

SB-LINK is used to connect Creative-compatible
PCI sound card. If you have a Creative-compatible
PCI sound card installed, it is necessary to link the
card to the connector for compatibility issue under
DOS environment.
2-22
Pin
Description
1
GNT#
2
GND
3
NC
4
REQ#
5
GND
6
SIRQ#
1
2
5
6
SB-LINK
