Connectors

2.3.1 Power Cable

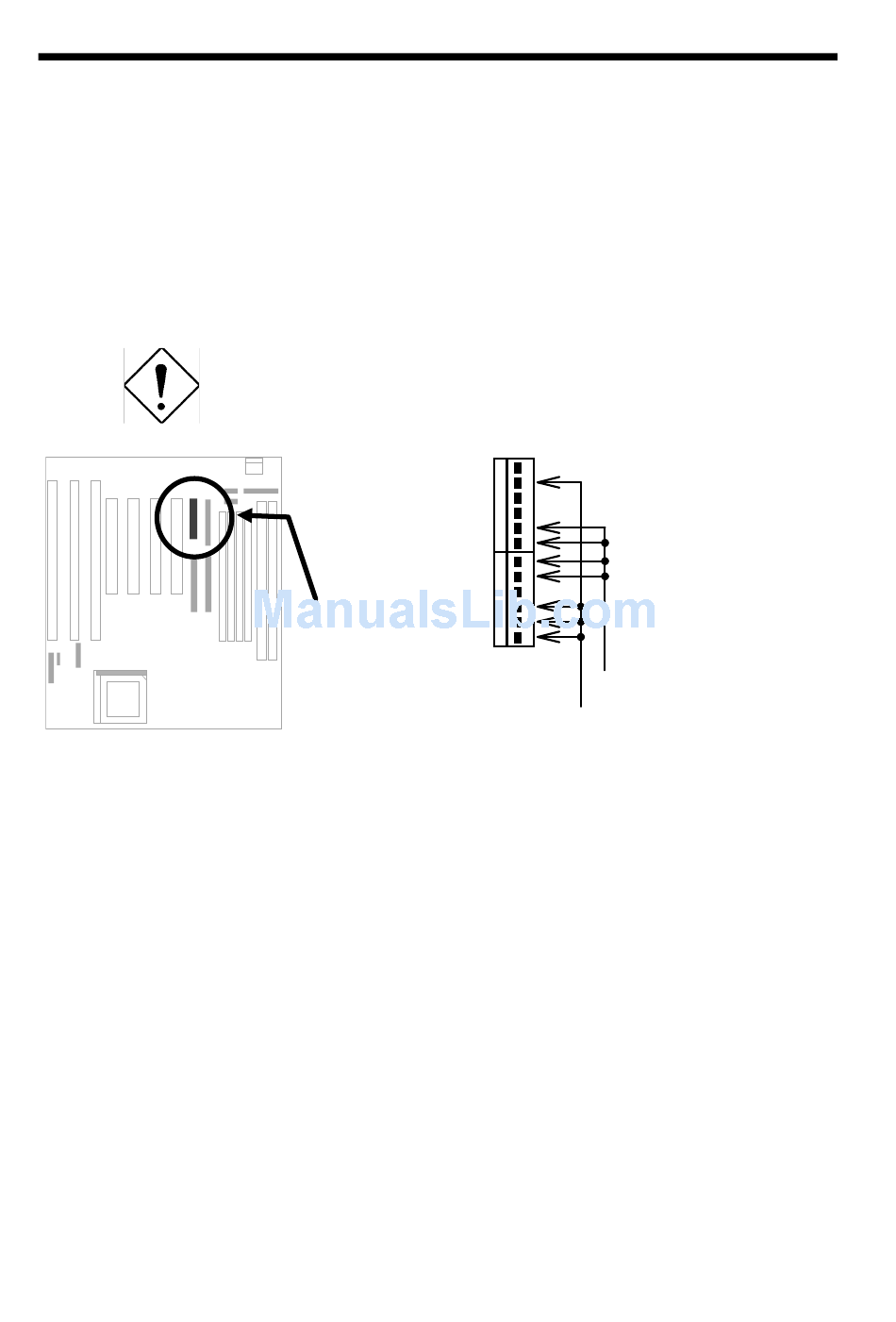

A standard baby AT (PS/2) power supply has two cables with six wires on each.
Plug in these cables to the onboard power connector in such a way that all the
black wires are in the center. The power connector is marked as PWR1 on the
system board.
Caution: Make sure that the power supply is
off before connecting or disconnecting the
power cable.
Hardware Installation
Black wire
(GND)
Red wire
(+5V)
PWR1
