2.3.2 CPU Fan

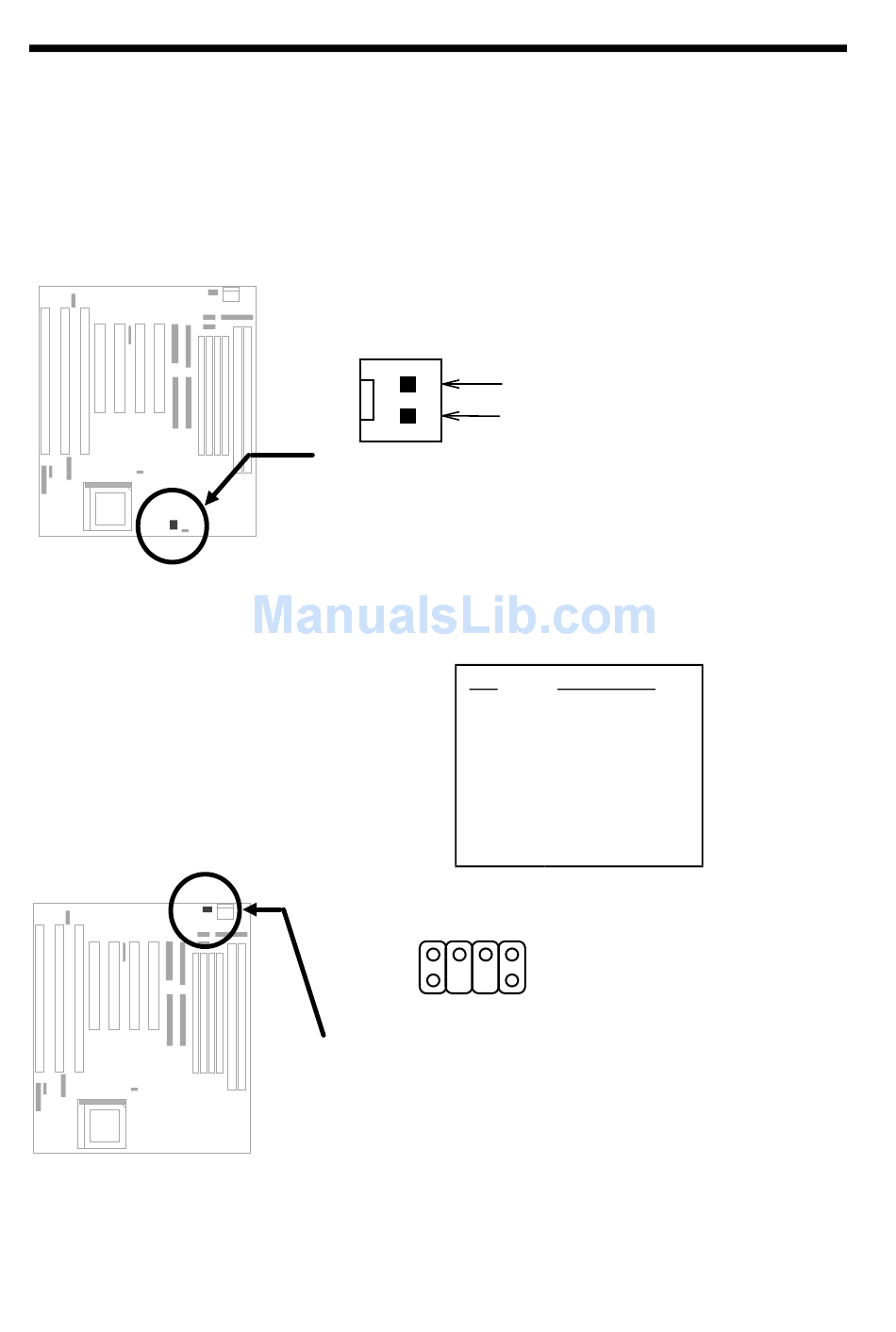

Plug in the fan cable to the two-pin fan connector onboard.
connector is marked CPUFAN on the system board. Attach the heatsink and
fan to the CPU. Check its orientation, make sure the air flow go through the
heatsink.
2.3.3 PS/2 Mouse
To connect a PS/2 mouse, insert the
PS/2 mouse bracket connector to PS2
MS on the system board. Then plug in
the PS/2 mouse cable to the mouse
port on the bracket.
2-14
+12V
GND
CPUFAN
Pin
Description
1
MS DATA
2
NC
3
GND
4
+5V
5
MS CLK
6
NC
3 1 2 4
5
6
PS2 MS
The fan
