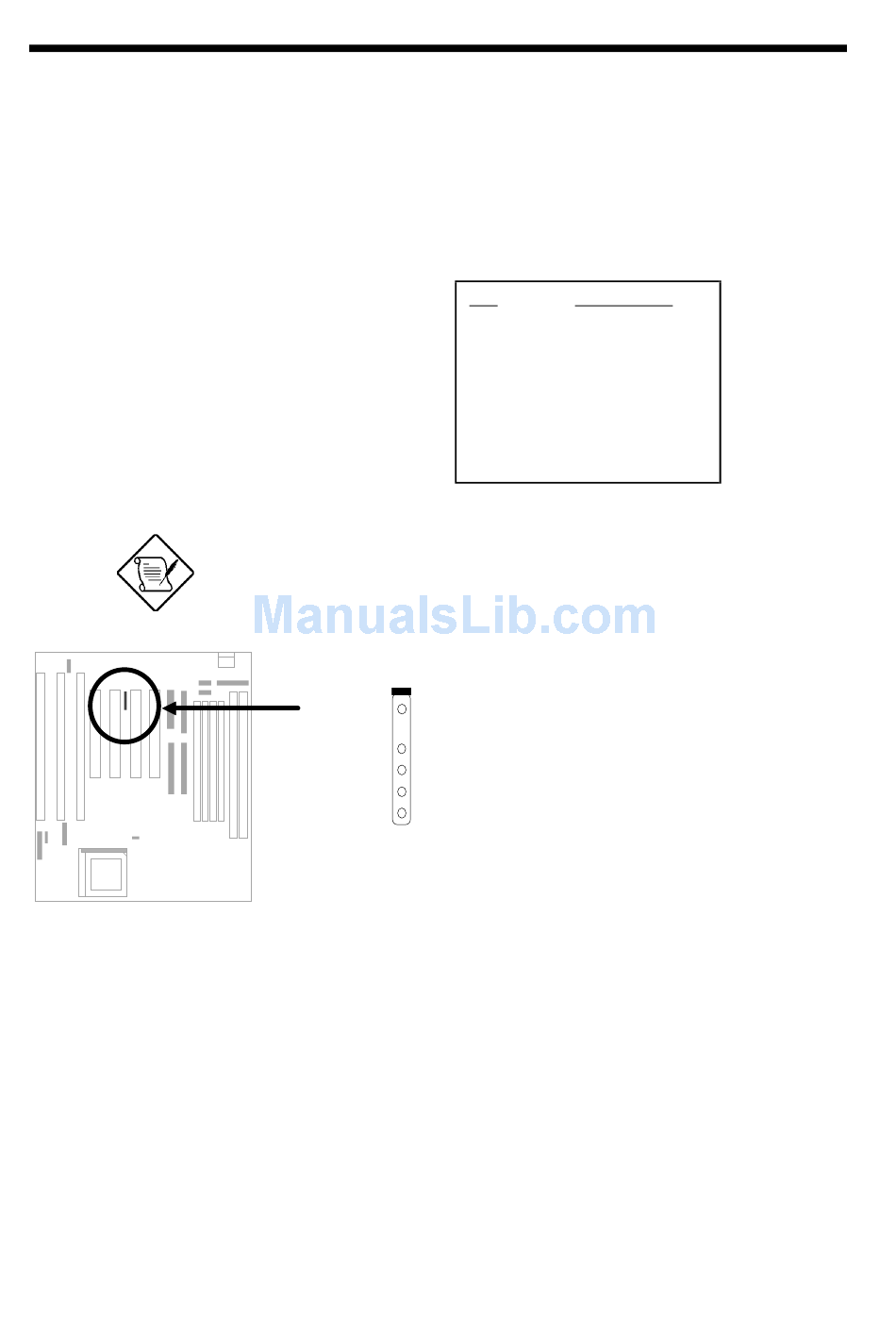

2.3.12 IrDA Connector

Serial port 2 can be configured to support wireless infrared module, with
this module and application software such as Laplink, user can transfer
files to or from laptops, notebooks, PDA and printers. This mainboard
supports IrDA (115Kbps, 1 meter) as well as ASK-IR (19.2Kbps).
Install infrared
connector and enable infrared function
from BIOS setup, make sure to have
correct orientation when you plug onto
IrDA connector.
module onto
Note: Onboard serial port 2 (COM2) will not be
available after IrDA connector is enabled.
IrDA
Hardware Installation
Pin
IrDA
1
2
3
4
5
6
1
2
3
4
5
6
Description
+5V
NC
IRRX
GND
IRTX
NC
2-21
