WebScale™
æ

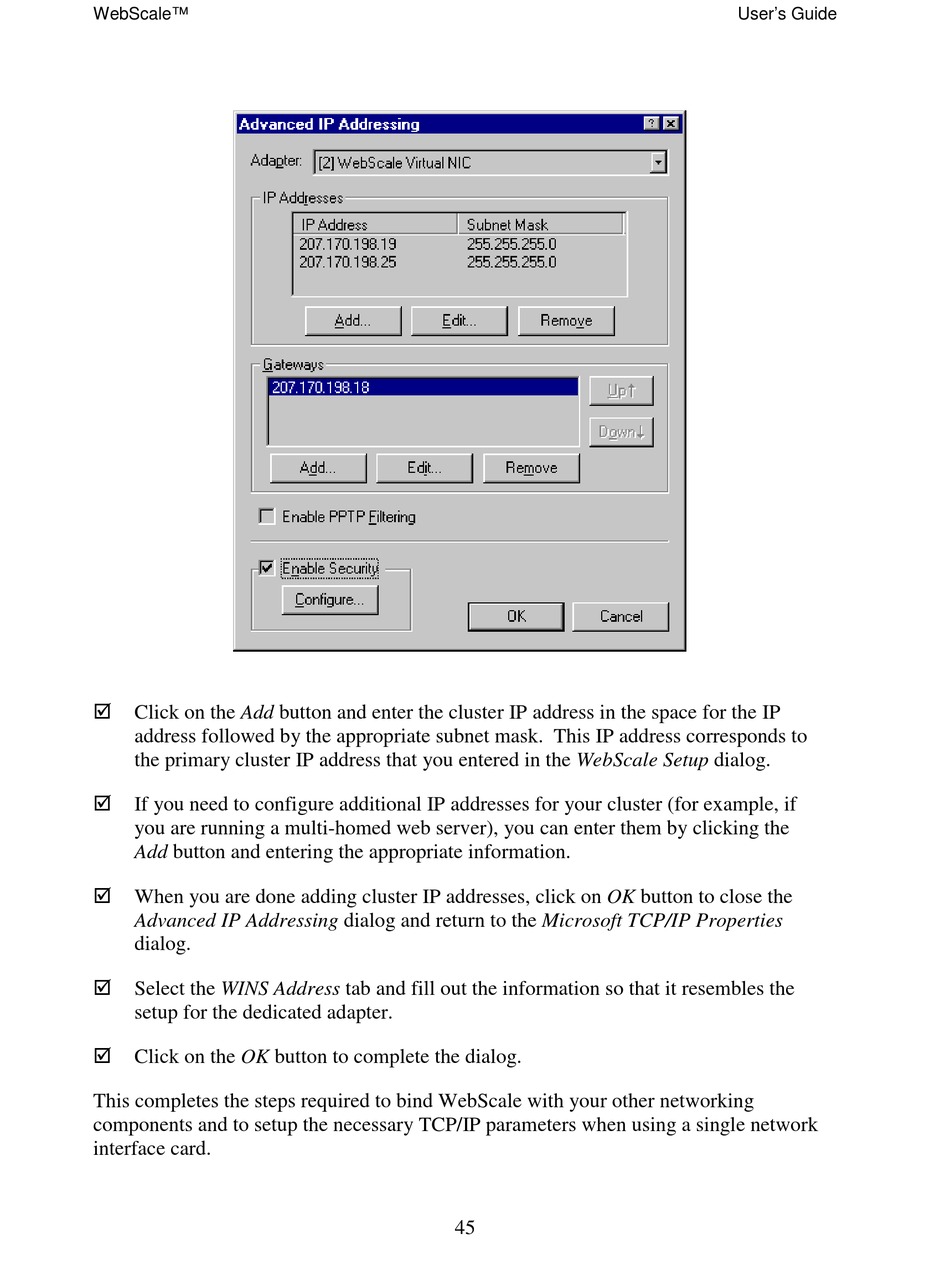

Click on the Add button and enter the cluster IP address in the space for the IP
address followed by the appropriate subnet mask. This IP address corresponds to
the primary cluster IP address that you entered in the WebScale Setup dialog.
æ
If you need to configure additional IP addresses for your cluster (for example, if
you are running a multi-homed web server), you can enter them by clicking the
Add button and entering the appropriate information.
æ
When you are done adding cluster IP addresses, click on OK button to close the
Advanced IP Addressing dialog and return to the Microsoft TCP/IP Properties
dialog.
æ
Select the WINS Address tab and fill out the information so that it resembles the
setup for the dedicated adapter.
æ
Click on the OK button to complete the dialog.
This completes the steps required to bind WebScale with your other networking
components and to setup the necessary TCP/IP parameters when using a single network
interface card.
