WebScale™

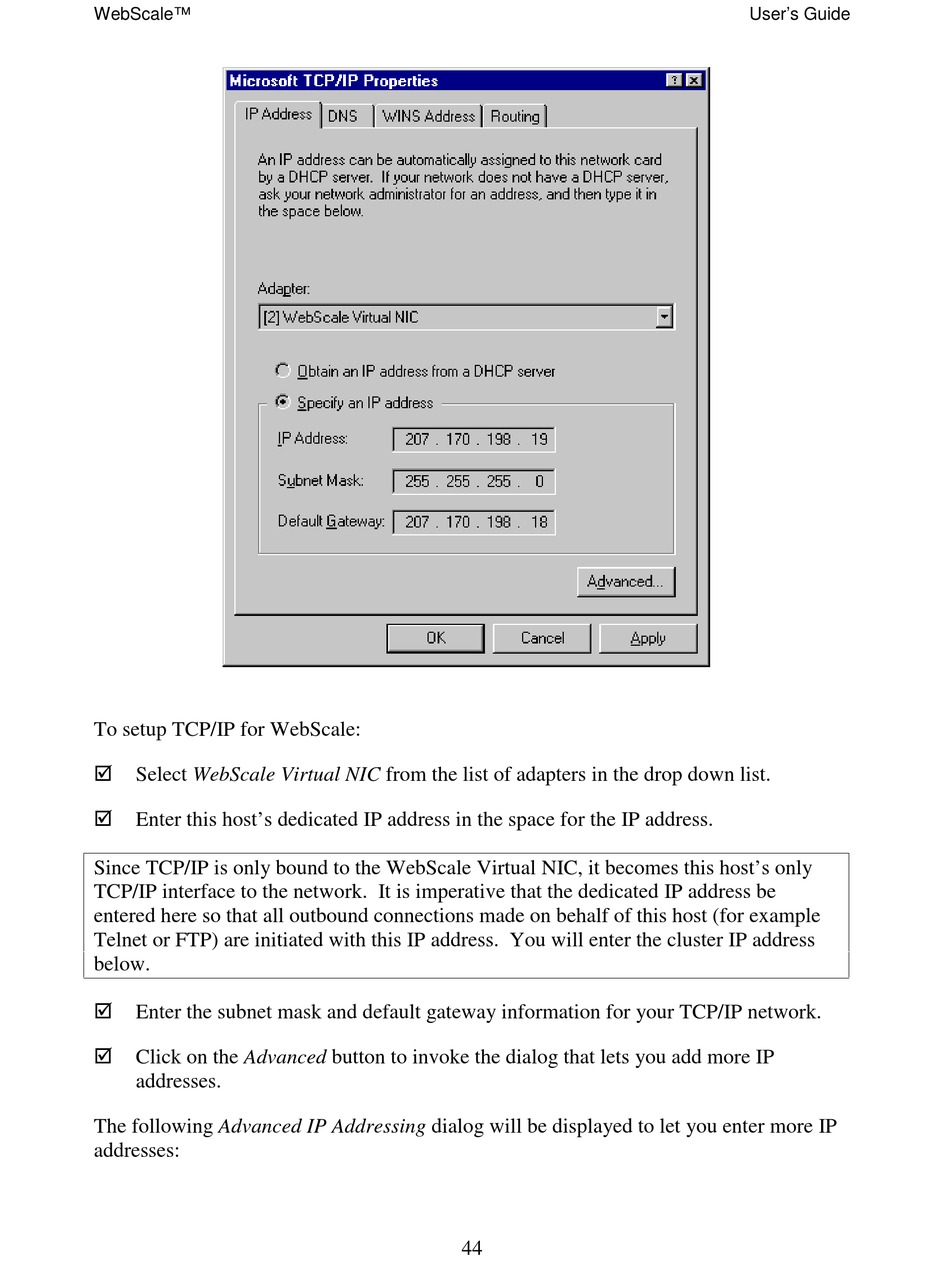

To setup TCP/IP for WebScale:
æ
Select WebScale Virtual NIC from the list of adapters in the drop down list.
æ
Enter this host's dedicated IP address in the space for the IP address.
Since TCP/IP is only bound to the WebScale Virtual NIC, it becomes this host's only
TCP/IP interface to the network. It is imperative that the dedicated IP address be
entered here so that all outbound connections made on behalf of this host (for example
Telnet or FTP) are initiated with this IP address. You will enter the cluster IP address
below.
æ
Enter the subnet mask and default gateway information for your TCP/IP network.
æ
Click on the Advanced button to invoke the dialog that lets you add more IP
addresses.
The following Advanced IP Addressing dialog will be displayed to let you enter more IP
addresses:
44
User's Guide
