WebScale™

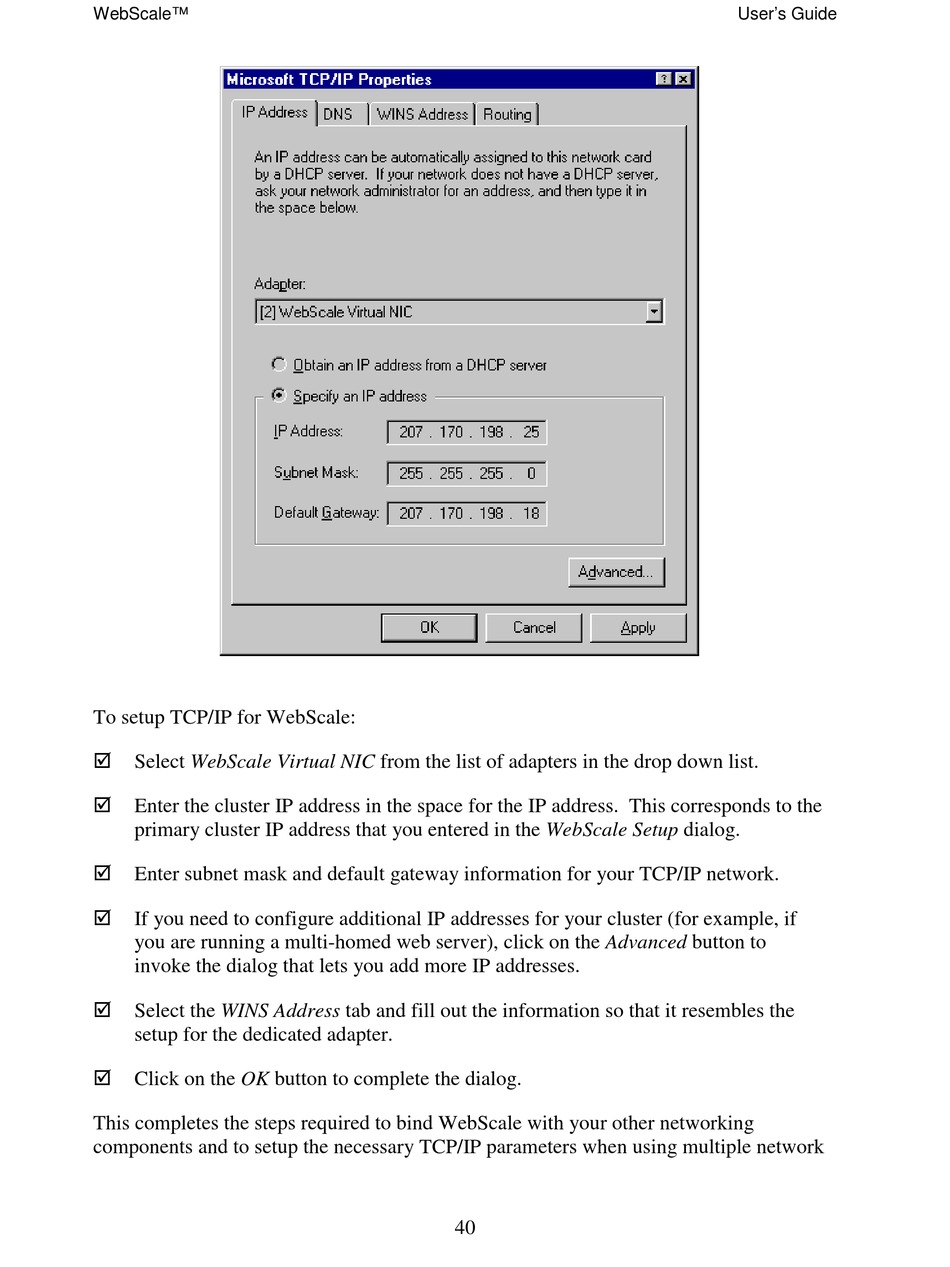

To setup TCP/IP for WebScale:
æ
Select WebScale Virtual NIC from the list of adapters in the drop down list.
æ
Enter the cluster IP address in the space for the IP address. This corresponds to the
primary cluster IP address that you entered in the WebScale Setup dialog.
æ
Enter subnet mask and default gateway information for your TCP/IP network.
æ
If you need to configure additional IP addresses for your cluster (for example, if
you are running a multi-homed web server), click on the Advanced button to
invoke the dialog that lets you add more IP addresses.
æ
Select the WINS Address tab and fill out the information so that it resembles the
setup for the dedicated adapter.
æ
Click on the OK button to complete the dialog.
This completes the steps required to bind WebScale with your other networking
components and to setup the necessary TCP/IP parameters when using multiple network
40
