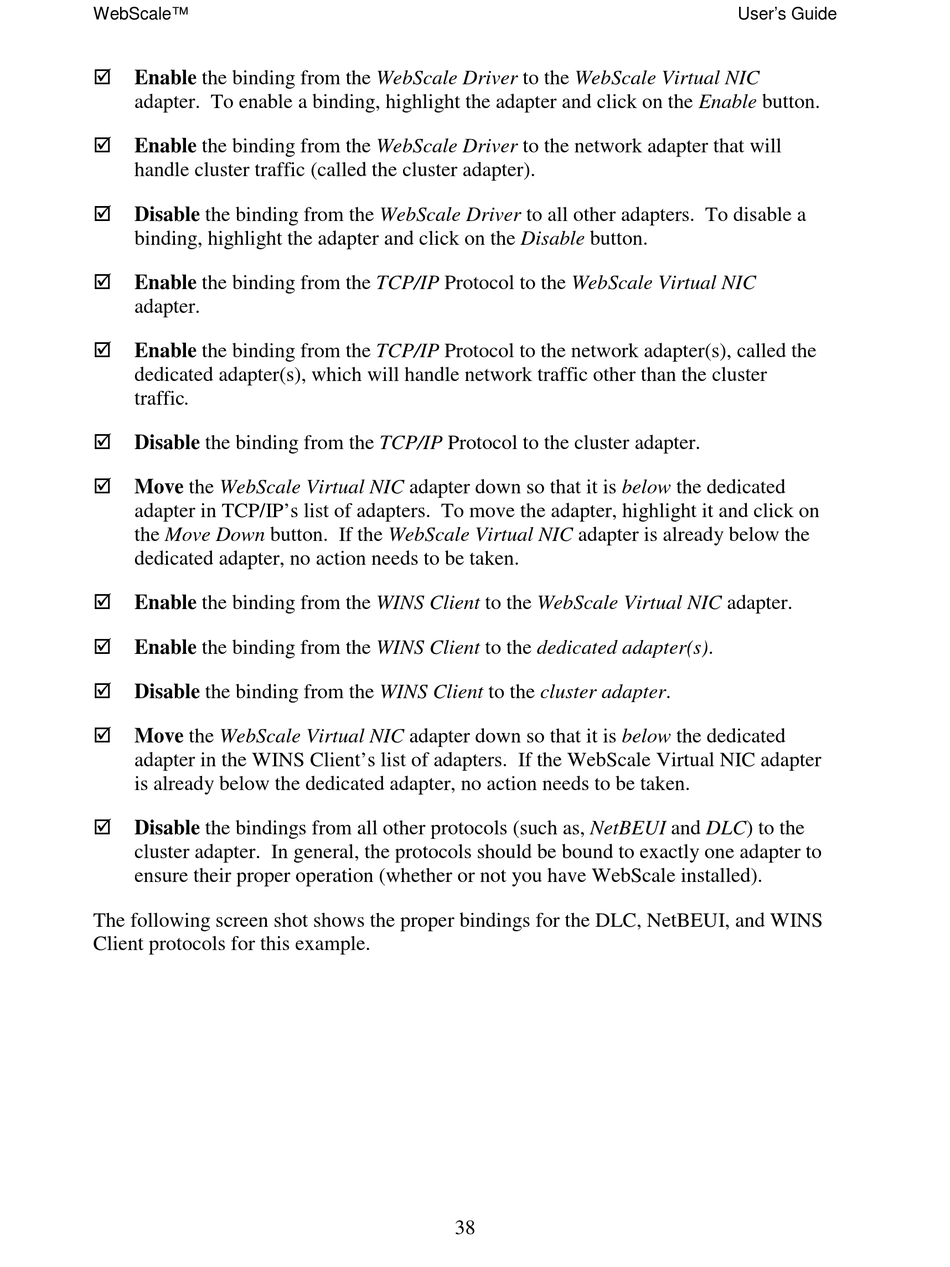

WebScale™
æ
Enable the binding from the WebScale Driver to the WebScale Virtual NIC
adapter. To enable a binding, highlight the adapter and click on the Enable button.
æ
Enable the binding from the WebScale Driver to the network adapter that will
handle cluster traffic (called the cluster adapter).
æ
Disable the binding from the WebScale Driver to all other adapters. To disable a
binding, highlight the adapter and click on the Disable button.
æ
Enable the binding from the TCP/IP Protocol to the WebScale Virtual NIC
adapter.
æ
Enable the binding from the TCP/IP Protocol to the network adapter(s), called the
dedicated adapter(s), which will handle network traffic other than the cluster
traffic.
æ
Disable the binding from the TCP/IP Protocol to the cluster adapter.
æ
Move the WebScale Virtual NIC adapter down so that it is below the dedicated
adapter in TCP/IP's list of adapters. To move the adapter, highlight it and click on
the Move Down button. If the WebScale Virtual NIC adapter is already below the
dedicated adapter, no action needs to be taken.
æ
Enable the binding from the WINS Client to the WebScale Virtual NIC adapter.
æ
Enable the binding from the WINS Client to the dedicated adapter(s).
æ
Disable the binding from the WINS Client to the cluster adapter.
æ
Move the WebScale Virtual NIC adapter down so that it is below the dedicated
adapter in the WINS Client's list of adapters. If the WebScale Virtual NIC adapter
is already below the dedicated adapter, no action needs to be taken.
æ
Disable the bindings from all other protocols (such as, NetBEUI and DLC) to the
cluster adapter. In general, the protocols should be bound to exactly one adapter to
ensure their proper operation (whether or not you have WebScale installed).
The following screen shot shows the proper bindings for the DLC, NetBEUI, and WINS
Client protocols for this example.
