WebScale™
æ

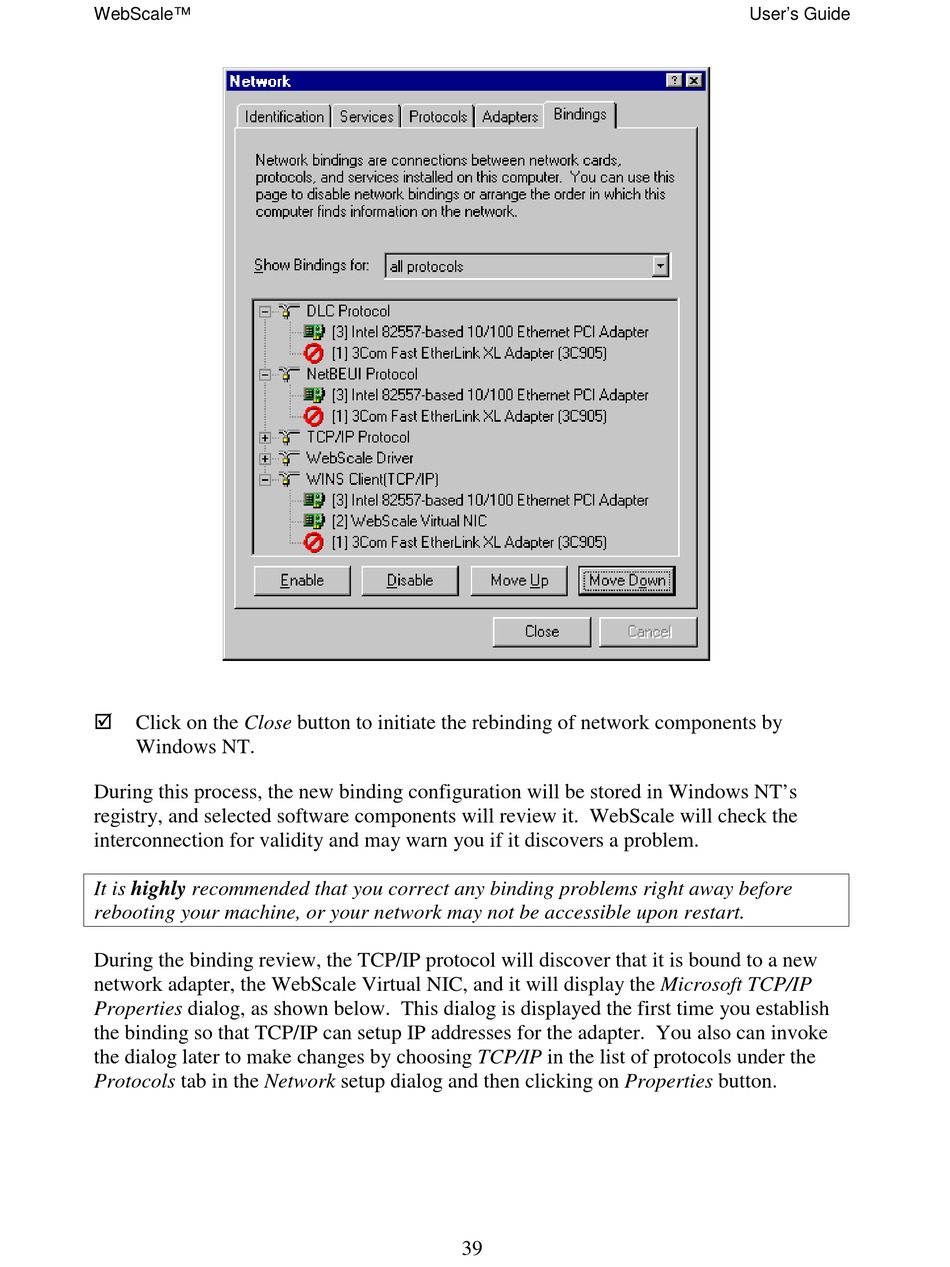

Click on the Close button to initiate the rebinding of network components by
Windows NT.
During this process, the new binding configuration will be stored in Windows NT's
registry, and selected software components will review it. WebScale will check the
interconnection for validity and may warn you if it discovers a problem.
It is highly recommended that you correct any binding problems right away before
rebooting your machine, or your network may not be accessible upon restart.
During the binding review, the TCP/IP protocol will discover that it is bound to a new
network adapter, the WebScale Virtual NIC, and it will display the Microsoft TCP/IP
Properties dialog, as shown below. This dialog is displayed the first time you establish
the binding so that TCP/IP can setup IP addresses for the adapter. You also can invoke
the dialog later to make changes by choosing TCP/IP in the list of protocols under the
Protocols tab in the Network setup dialog and then clicking on Properties button.
