WebScale™

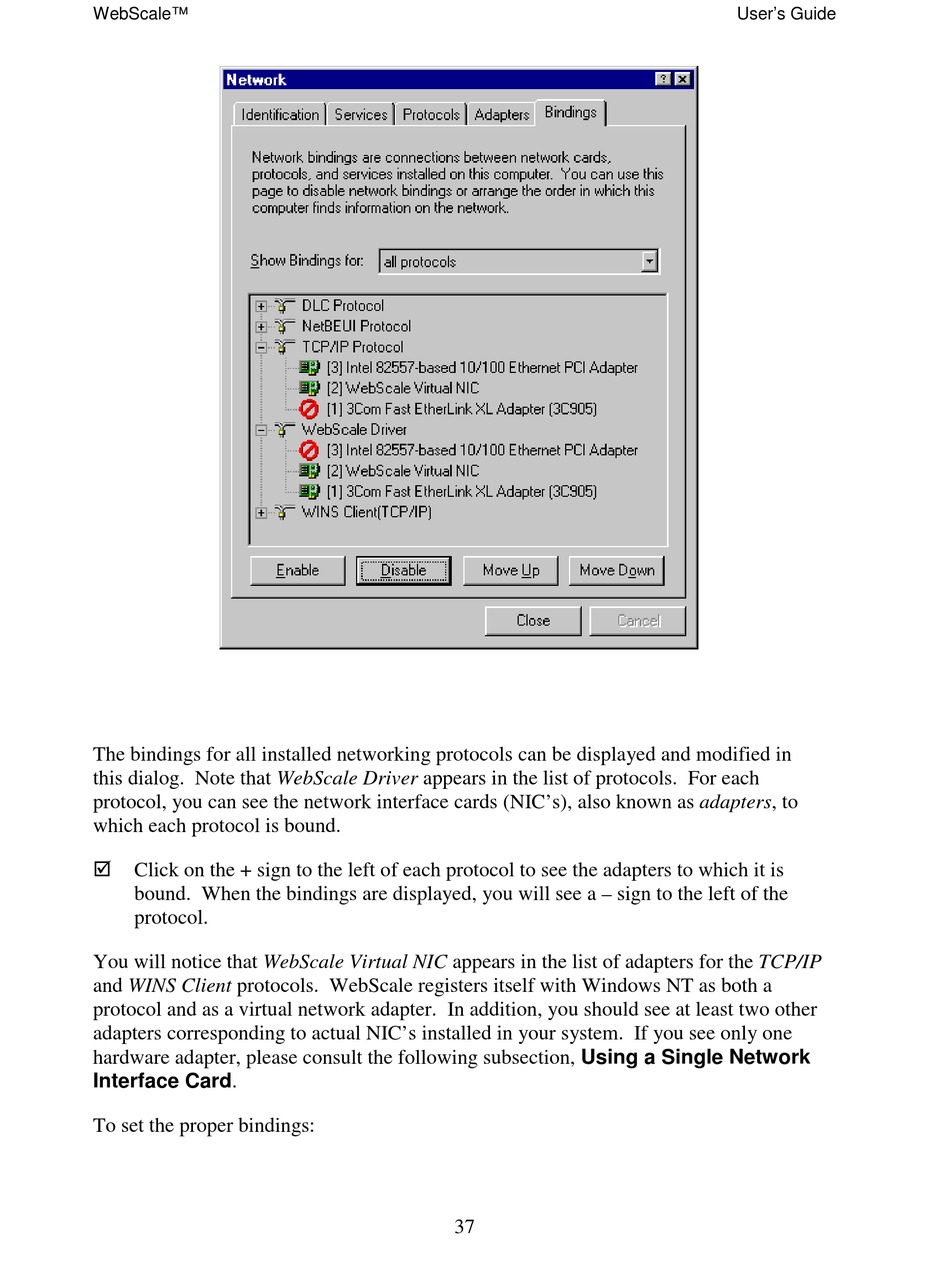

The bindings for all installed networking protocols can be displayed and modified in
this dialog. Note that WebScale Driver appears in the list of protocols. For each
protocol, you can see the network interface cards (NIC's), also known as adapters, to
which each protocol is bound.
æ
Click on the + sign to the left of each protocol to see the adapters to which it is
bound. When the bindings are displayed, you will see a – sign to the left of the
protocol.
You will notice that WebScale Virtual NIC appears in the list of adapters for the TCP/IP
and WINS Client protocols. WebScale registers itself with Windows NT as both a
protocol and as a virtual network adapter. In addition, you should see at least two other
adapters corresponding to actual NIC's installed in your system. If you see only one
hardware adapter, please consult the following subsection, Using a Single Network
Interface Card.
To set the proper bindings:
