Quick Start Guide
1

System Map: Rear View

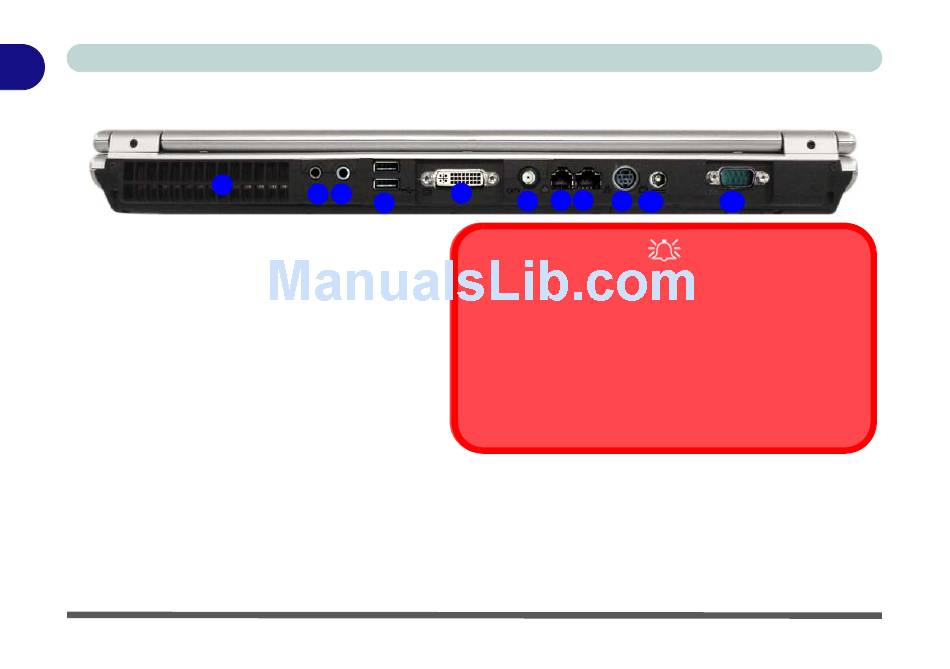

Figure 1 - 5 - Rear View
1. Vent/Fan Intake/Outlet
2. S/PDIF-Out Jack
3. Line-In Jack
4. 2 * USB 2.0 Ports
5. DVI-Out Port
6. TV Antenna Jack (Enabled With TV Tuner Only)
7. RJ-11 Phone Jack
8. RJ-45 LAN Jack
9. 7-Pin S-Video-Out Jack
10. DC-In Jack
11. Serial Port
1 - 12 System Map: Rear View
1
2 3
4
5
7 8
6 9 10
Overheating
To prevent your computer from overheating make sure noth-
ing blocks the Vent/Fan Intake/Outlet while the computer is in
use.
USB Ports
Note that the connections to the USB ports only fit one way,
do not force them.
11
